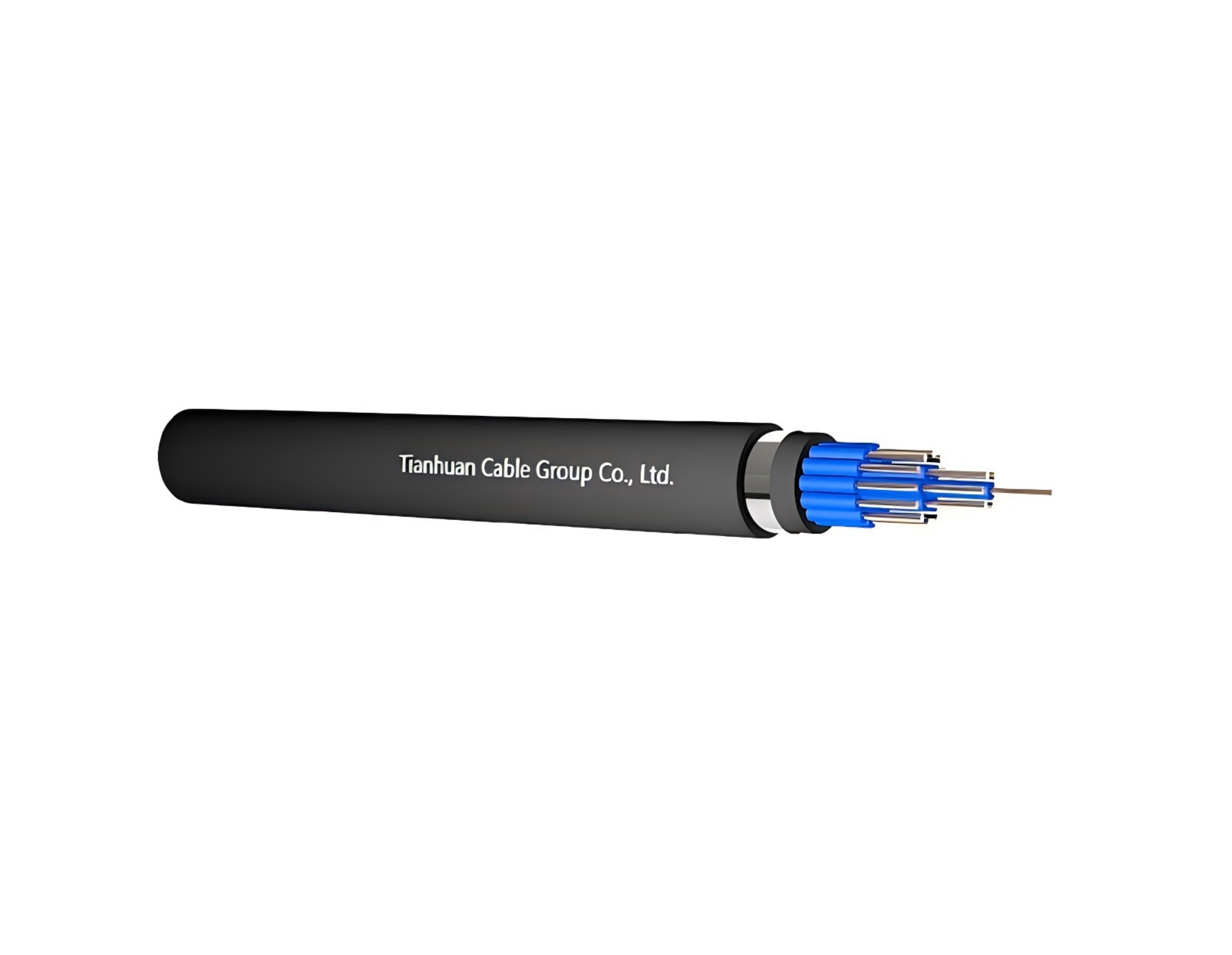

CABLE STRUCTURE:
Conductor:[re]Round solid conductor
[rm]Circular stranded conductor
Insulation:PVC
Filler: PVC
Armour:Galvanized steel tape helically applied
Out Sheath:PVC or FR-PVC type ST2/ST8,black
Technical Data Voltage Rating Uo/U 0.6/1kVTest Voltage 3.5kV
Temperature Rating：Maximum Operating:+70℃
Maximum Short-Circuit:+160℃
Minimum Bending Radius 12×overall diameter
| Nom.Cross- section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | M. Ω.km | A | |
| 7×1.5 re | 0.8 | 1.8 | 15.9 | 458 | 12 | 17 | 13 |
| 7×1.5 rm | 0.8 | 1.8 | 16.4 | 483 | 11 | 17 | 13 |
| 8×1.5 re | 0.8 | 1.8 | 16.9 | 508 | 12 | 16 | 12 |
| 8×1.5 rm | 0.8 | 1.8 | 17.5 | 537 | 11 | 16 | 12 |
| 10×1.5 re | 0.8 | 1.8 | 18.8 | 609 | 12 | 15 | 11 |
| 10×1.5 rm | 0.8 | 1.8 | 19.6 | 642 | 11 | 15 | 11 |
| 12×1.5 re | 0.8 | 1.8 | 19.3 | 657 | 12 | 14 | 11 |
| 12×1.5 rm | 0.8 | 1.8 | 20.1 | 695 | 11 | 14 | 11 |
| 14×1.5 re | 0.8 | 1.8 | 20.2 | 721 | 12 | 13 | 10 |
| 14×1.5 rm | 0.8 | 1.8 | 20.9 | 763 | 11 | 13 | 10 |
| 16×1.5 re | 0.8 | 1.8 | 21 | 785 | 12 | 12 | 10 |
| 16×1.5 rm | 0.8 | 1.8 | 21.8 | 831 | 11 | 12 | 10 |
| 19×1.5 re | 0.8 | 1.8 | 22 | 857 | 12 | 12 | 9 |
| 19×1.5 rm | 0.8 | 1.8 | 22.8 | 907 | 11 | 12 | 9 |
| 21×1.5 re | 0.8 | 1.8 | 22.7 | 924 | 12 | 11 | 9 |
| 21×1.5 rm | 0.8 | 1.8 | 23.7 | 972 | 11 | 11 | 9 |
| 24×1.5 re | 0.8 | 1.8 | 24.2 | 1027 | 12 | 11 | 8 |
| 24×1.5 rm | 0.8 | 1.8 | 25.3 | 1087 | 11 | 11 | 8 |
| 30×1.5 re | 0.8 | 1.8 | 26 | 1205 | 12 | 11 | 8 |
| 30×1.5 rm | 0.8 | 1.8 | 27.2 | 1277 | 11 | 11 | 8 |
| 40×1.5 re | 0.8 | 1.9 | 28.6 | 1488 | 12 | 11 | 8 |
| 40×1.5 rm | 0.8 | 1.9 | 30.1 | 1577 | 11 | 11 | 8 |
| Nom.Cross- section Area | Nominal Thickness | overall diameterr | cable Weight | DC Resistance at 20℃ Insulation min | Current Carrying Capacity at 30℃ | ||
| Insulation | Outer Sheath | In Air | In Ground | ||||
| mm² | mm | mm | mm | km/kg | M. Ω.km | A | |
| 52×1.5 re | 0.8 | 2 | 32.3 | 1871 | 12 | 11 | 8 |
| 52×1.5 rm | 0.8 | 2 | 33.9 | 1882 | 11 | 11 | 8 |
| 61×1.5 re | 0.8 | 2 | 34 | 2110 | 12 | 11 | 8 |
| 61×1.5 rm | 0.8 | 2 | 36.6 | 2428 | 11 | 11 | 8 |
| 7×2.5 re | 0.8 | 1.8 | 17 | 561 | 10 | 23 | 13 |
| 7×2.5 rm | 0.8 | 1.8 | 17.8 | 597 | 9 | 23 | 13 |
| 8×2.5 re | 0.8 | 1.8 | 18.1 | 624 | 10 | 21 | 12 |
| 8×2.5 rm | 0.8 | 1.8 | 19 | 666 | 9 | 21 | 12 |
| 10×2.5 re | 0.8 | 1.8 | 20.3 | 752 | 10 | 20 | 11 |
| 10×2.5 rm | 0.8 | 1.8 | 21.4 | 803 | 9 | 20 | 11 |
| 12×2.5 re | 0.8 | 1.8 | 21.8 | 822 | 10 | 18 | 11 |
| 12×2.5 rm | 0.8 | 1.8 | 22 | 878 | 9 | 18 | 11 |
| 14×2.5 re | 0.8 | 1.8 | 21.7 | 909 | 10 | 17 | 10 |
| 14×2.5 rm | 0.8 | 1.8 | 230 | 971 | 9 | 17 | 10 |
| 16×2.5 re | 0.8 | 1.8 | 22.7 | 996 | 10 | 17 | 10 |
| 16×2.5 rm | 0.8 | 1.8 | 24 | 1063 | 9 | 17 | 10 |
| 19×2.5 re | 0.8 | 1.8 | 23.7 | 1097 | 10 | 16 | 9 |
| 19×2.5 rm | 0.8 | 1.8 | 25 | 1164 | 9 | 16 | 9 |
| 21×2.5 re | 0.8 | 1.8 | 24.8 | 1188 | 10 | 15 | 9 |
| 21×2.5 rm | 0.8 | 1.8 | 26.1 | 1267 | 9 | 15 | 9 |
| 24×2.5 re | 0.8 | 1.8 | 26.2 | 1327 | 10 | 14 | 8 |
| 24×2.5 rm | 0.8 | 1.8 | 26.3 | 1415 | 9 | 14 | 8 |
| 30×2.5 re | 0.8 | 1.9 | 27.9 | 1472 | 10 | 14 | 8 |
| 30×2.5 rm | 0.8 | 1.9 | 28.4 | 1677 | 9 | 14 | 8 |
| 40×2.5 re | 0.8 | 2 | 31.4 | 1965 | 10 | 14 | 8 |
| 40×2.rm | 0.8 | 2 | 33.4 | 2095 | 9 | 14 | 8 |
| 52×2.5 re | 0.8 | 2.2 | 36.2 | 2722 | 10 | 14 | 8 |
| 52×2.5 rm | 0.8 | 2.2 | 38.5 | 2904 | 9 | 14 | 8 |
| 61×2.5 re | 0.8 | 2.2 | 39.1 | 3144 | 10 | 14 | 8 |
| 61×2.5 rm | 0.8 | 2.2 | 40.6 | 3278 | 9 | 14 | 8 |
Application Control cable for installations as underground,outdoor,indoor,inducts and where mechanical protection is required or for higher tensile stresses during installation and opertation
