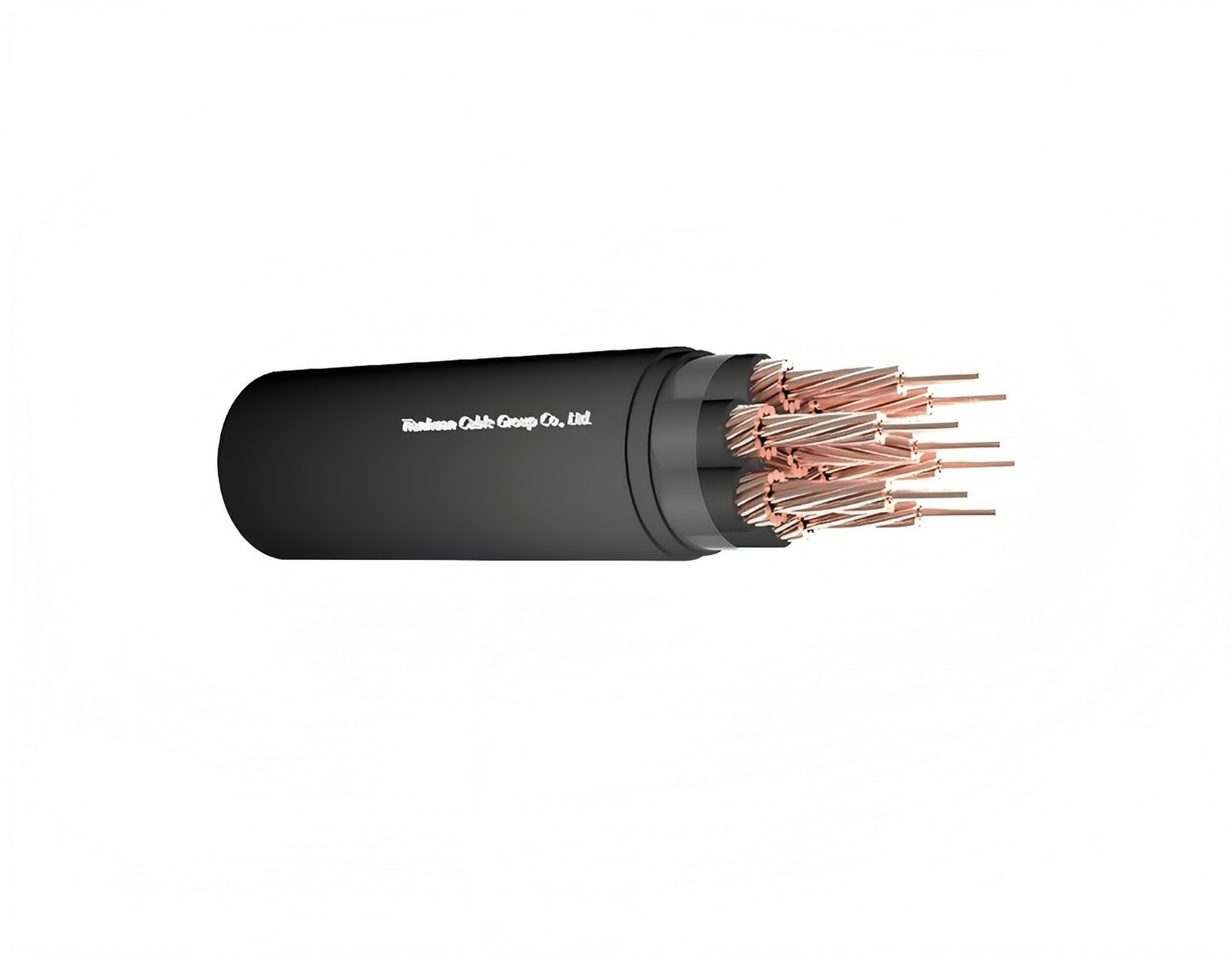

N2XY (Cu/XLPE/PVC 0.6/1 kV) Control Cable

Technical Data

Application

Get a quote

Technical Data

Voltage Rating Uo/U 0.6/1kV

Temperature Rating:During installation-5℃ to+50℃ Fixed

Installation:-20℃ to+90℃

Minimum Bending Radius：Fixed 12×overall diameter

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×1.5 re	0.7	1.8	15	305	1121	11	16
7×1.5 rm	0.7	1.8	15	324	1020	11	16
8×1.5 re	0.7	1.8	16	340	1121	11	16
8×1.5 rm	0.7	1.8	16	350	1020	11	16
10×1.5 re	0.7	1.8	18	413	1121	10	14
10×1.5 rm	0.7	1.8	19	426	1020	10	14
12×1.5 re	0.7	1.8	18	457	1121	13	14
12×1.5 rm	0.7	1.8	19	471	1020	13	14
14×1.5 re	0.7	1.8	19	498	1121	9	11
14×1.5 rm	0.7	1.8	20	512	1020	9	11
16×1.5 re	0.7	1.8	20	549	1121	9	11
16×1.5 rm	0.7	1.8	21	564	1020	9	11
19×1.5 re	0.7	1.8	21	610	1121	8	10
19×1.5 rm	0.7	1.8	21	626	1020	8	10
21×1.5 re	0.7	1.8	22	662	1121	8	10
21×1.5 rm	0.7	1.8	22	679	1020	8	10
24×1.5 re	0.7	1.8	24	752	1121	7	9
24×1.5 rm	0.7	1.8	24	772	1020	7	9
30×1.5 re	0.7	1.8	25	877	1121	7	9
30×1.5 rm	0.7	1.8	26	898	1020	7	9
40×1.5 re	0.7	1.8	27	1096	1121	6	8
40×1.5 rm	0.7	1.8	28	1126	1020	6	8

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
52×1.5 re	0.7	1.9	31	2383	1121	6	8
52×1.5 rm	0.7	2	32	1455	1020	6	8
61×1.5 re	0.7	2	33	1616	1121	5	7
61×1.5 rm	0.7	2	34	1653	1020	5	7
7×2.5 re	0.7	1.8	16	403	940	18	22
7×2.5 rm	0.7	1.8	17	427	842	18	22
8×2.5 re	0.7	1.8	17	425	940	18	22
8×2.5 rm	0.7	1.8	18	447	842	18	22
10×2.5 re	0.7	1.8	19	513	940	15	18
10×2.5 rm	0.7	1.8	20	541	842	15	18
12×2.5 re	0.7	1.8	20	576	940	15	18
12×2.5 rm	0.7	1.8	21	607	842	15	18
14×2.5 re	0.7	1.8	21	644	940	14	16
14×2.5 rm	0.7	1.8	22	679	842	14	16
16×2.5 re	0.7	1.8	22	714	940	14	16
16×2.5 rm	0.7	1.8	23	752	842	14	16
19×2.5 re	0.7	1.8	23	811	940	12	14
19×2.5 rm	0.7	1.8	24	855	842	12	14
21×2.5 re	0.7	1.8	24	882	940	12	14
21×2.5 rm	0.7	1.8	25	929	842	12	14
24×2.5 re	0.7	1.8	26	998	940	11	13
24×2.5 rm	0.7	1.8	27	1054	842	11	13
30×2.5 re	0.7	1.8	27	1187	940	11	13
30×2.5 rm	0.7	1.8	29	1259	842	11	13
40×2.5 re	0.7	1.9	30	1523	940	9	10

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
40×2.5 rm	0.7	1.9	33	1653	842	9	10
52×2.5 re	0.7	2	35	1973	940	9	10
52×2.5 rm	0.7	2	37	2093	842	9	10
61×2.5 re	0.7	2	37	2269	940	8	9
61×2.5 rm	0.7	2	39	2403	842	8	9
7×4 re	0.7	1.8	17	531	784	25	27
7×4 rm	0.7	1.8	18	567	704	25	27
8×4 re	0.7	1.8	19	562	784	25	27
8×4 rm	0.7	1.8	20	595	704	25	27
10×4 re	0.7	1.8	21	685	784	21	23
10×4 rm	0.7	1.8	22	726	704	21	23
12×4 re	0.7	1.8	22	777	784	21	23
12×4 rm	0.7	1.8	23	824	704	21	23
14×4 re	0.7	1.8	23	876	784	19	21
14×4 rm	0.7	1.8	24	928	704	19	21
16×4 re	0.7	1.8	24	976	784	19	21
16×4 rm	0.7	1.8	25	1034	704	19	21
19×4 re	0.7	1.8	25	1119	784	17	18
19×4 rm	0.7	1.8	26	1184	704	17	18
21×4 re	0.7	1.8	27	1220	784	17	18
21×4 rm	0.7	1.8	28	1296	704	17	18
24x4 re	0.7	1.8	29	1394	784	15	16
24×4 rm	0.7	1.8	31	1680	704	15	16
30×4 re	0.7	1.9	31	1690	784	15	16
30×4 rm	0.7	1.9	33	1828	704	15	16
40×4 re	0.7	2	35	2211	784	13	14
40×4 rm	0.7	2	37	2345	704	13	14
52×4 re	0.7	2.1	39	2815	784	13	14
52×4 rm	0.7	2.1	41	2997	704	13	14

Nom.Cross-section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross-section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
61×4 re	0.7	2.2	42	3248	784	11	11
61×4 rm	0.7	2.2	45	3511	704	11	11
7×6 re	0.7	1.8	19	697	667	32	35
7×6 rm	0.7	1.8	20	741	590	32	35
8×6 re	0.7	1.8	20	740	667	32	35
8×6 rm	0.7	1.8	22	780	590	32	35
10×6 re	0.7	1.8	23	906	667	27	30
10×6 rm	0.7	1.8	25	956	590	27	30
12×6 re	0.7	1.8	23	1038	667	27	30
12×6 rm	0.7	1.8	26	1094	590	27	30
14×6 re	0.7	1.8	25	1177	667	25	26
14×6 rm	0.7	1.8	27	1239	590	25	26
16×6 re	0.7	1.8	26	1317	667	25	26
16×6 rm	0.7	1.8	28	1393	590	25	26
19×6 re	0.7	1.8	28	1524	667	22	23
19×6 rm	0.7	1.8	30	1614	590	22	23
21×6 re	0.7	1.8	29	1672	667	22	23
21×6 rm	0.7	1.8	32	1807	590	22	23
24×6 re	0.7	1.8	33	1954	667	19	21
24×6 rm	0.7	1.8	35	2072	590	19	21
30×6 re	0.7	2	35	2362	667	19	21
30×6 rm	0.7	2	37	2500	590	19	21
40×6 re	0.7	2.1	39	3064	667	17	17
40×6 rm	0.7	2.1	42	3240	590	17	17
52×6 re	0.7	2.3	44	3970	667	17	17
52×6 rm	0.7	2.3	48	4200	590	17	17
61×6 re	0.7	2.4	47	4590	667	15	15
61×6 rm	0.7	2.4	51	4853	590	15	15

Application

For Installations as underground,outdoor,indoor,in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation.

N2XY (Cu/XLPE/PVC 0.6/1 kV) Control Cable

The list of products in our website is continually being updated. Please send us an email if you have any questions about products that are not included yet.
