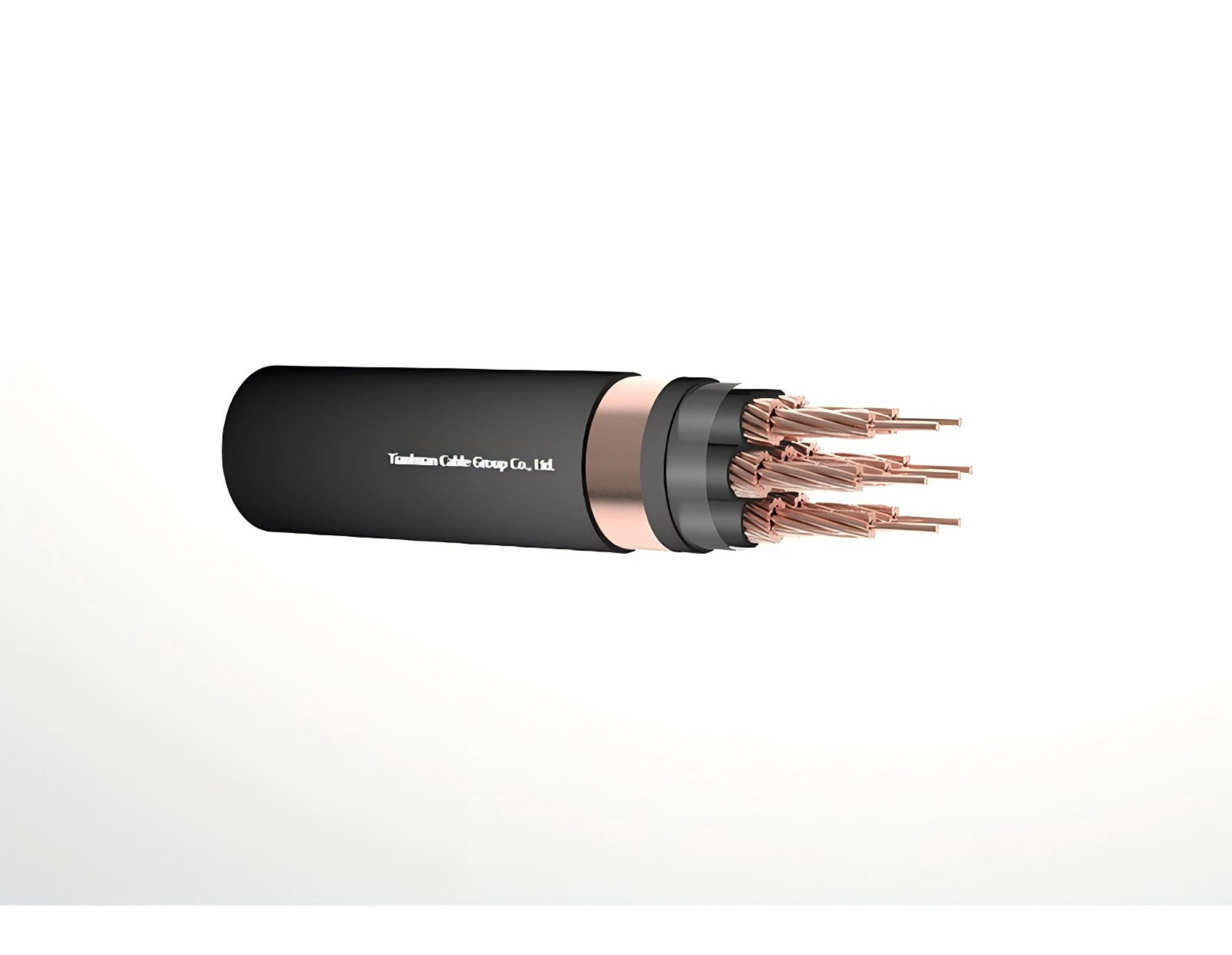

N2XSY (Cu/XLPE/CTS/PVC 0.6/1 kV) Control Cable

Technical Data

Application

Get a quote

Technical Data

Voltage Rating Uo/U 0.6/1kV

Test Voltage 3.5kV

Temperature Rating：Maximum Operating:+90°

Maximum Short-Circuit:+250℃

Minimum Bending Radius 15×overall diameter

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×1.5 re	0.7	1.8	16	349	1120	11	16
7×1.5 rm	0.7	1.8	16	359	1120	11	16
8×1.5 re	0.7	1.8	17	387	1120	11	16
8×1.5 rm	0.7	1.8	17	399	1120	11	16
10×1.5 re	0.7	1.8	19	467	1120	10	14
10×1.5 rm	0.7	1.8	19	485	1120	10	14
12×1.5 re	0.7	1.8	19	513	1120	10	14
12×1.5 rm	0.7	1.8	20	525	1120	10	14
14×1.5 re	0.7	1.8	20	558	1120	9	11
14×1.5 rm	0.7	1.8	20	575	1120	9	11
16×1.5 re	0.7	1.8	21	610	1120	9	11
16×1.5 rm	0.7	1.8	21	625	1120	9	11
19×1.5 re	0.7	1.8	21	675	1120	8	10
19×1.5 rm	0.7	1.8	22	695	1120	8	10
21×1.5 re	0.7	1.8	22	730	1120	8	10
21×1.5 rm	0.7	1.8	23	750	1120	8	10
24×1.5 re	0.7	1.8	24	825	1120	7	9
24×1.5 rm	0.7	1.8	25	850	1120	7	9
30×1.5 re	0.7	1.8	25	955	1120	7	9
30×1.5 rm	0.7	1.8	26	983	1120	7	9
40×1.5 re	0.7	1.9	28	1185	1120	6	8
40×1.5 rm	0.7	1.9	29	1223	1120	6	8
52×1.5 re	0.7	2	31	1485	1120	6	8
52×1.5 rm	0.7	2	33	1565	1120	6	8
61×1.5 re	0.7	2.1	34	1725	1120	5	7
61×1.5 rm	0.7	2.1	35	1765	1120	5	7

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×2.5 re	0.7	1.8	18	438	940	18	22
7×2.5 rm	0.7	1.8	18	465	940	18	22
8×2.5 re	0.7	1.8	18	489	940	18	22
8×2.5 rm	0.7	1.8	19	520	940	18	22
10×2.5 re	0.7	1.8	20	595	940	15	18
10×2.5 rm	0.7	1.8	21	635	940	15	18
12×2.5 re	0.7	1.8	21	662	940	15	18
12×2.5 rm	0.7	1.8	22	703	940	15	18
14×2.5 re	0.7	1.8	21	722	940	14	16
14×2.5 rm	0.7	1.8	22	770	940	14	16
16×2.5 re	0.7	1.8	22	798	940	14	16
16×2.5 rm	0.7	1.8	23	850	940	14	16
19×2.5 re	0.7	1.8	23	892	940	13	14
19×2.5 rm	0.7	1.8	24	950	940	13	14
21×2.5 re	0.7	1.8	24	966	940	13	14
21×2.5 rm	0.7	1.8	26	1030	940	13	14
24×2.5 re	0.7	1.8	27	1100	940	11	13
24×2.5 rm	0.7	1.9	28	1175	940	11	13
30×2.5 re	0.7	1.9	28	1292	940	11	13
30×2.5 rm	0.7	1.9	30	1385	940	11	13
40×2.5 re	0.7	1.9	32	1635	940	9	10
40×2.5 rm	0.7	2	33	1785	940	9	10
52×2.5 re	0.7	2.1	35	2087	940	9	10
52×2.5 rm	0.7	2.1	37	2235	940	9	10
61×2.5 re	0.7	2.1	37	2.385	940	8	9
61×2.5 rm	0.7	2.2	40	2559	940	8	9

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×4 re	0.7	1.8	18	570	704	25	28
7×4 rm	0.7	1.8	19	610	704	25	28
8×4 re	0.7	1.8	19	640	704	25	28
8×4 rm	0.7	1.8	20	685	704	25	28
10×4 re	0.7	1.8	22	784	704	21	23
10×4 rm	0.7	1.8	23	835	704	21	23
12×4 re	0.7	1.8	23	877	704	21	23
12×4 rm	0.7	1.8	24	945	704	21	23
14×4 re	0.7	1.8	23	975	704	20	21
14×4 rm	0.7	1.8	25	1035	704	20	21
16×4 re	0.7	1.8	25	1075	704	20	21
16×4 rm	0.7	1.8	26	1155	704	20	21
19×4 re	0.7	1.8	26	1213	704	17	18
19×4 rm	0.7	1.8	27	1295	704	17	18
21×4 re	0.7	1.8	27	1325	704	17	18
21×4 rm	0.7	1.9	28	1420	704	17	18
24×4 re	0.7	1.9	29	1517	704	15	16
24×4 rm	0.7	2	31	1631	704	15	16
30×4 re	0.7	2	31	1805	704	15	16
30×4 rm	0.7	2.1	34	1965	704	15	16
40×4 re	0.7	2.1	35	2335	704	13	14
40×4 rm	0.7	2.2	37	2505	704	13	14
52×4 re	0.7	2.2	39	2953	704	13	14
52×4 rm	0.7	2.3	42	3172	704	13	14
61×4 re	0.7	2.3	42	3392	704	11	13
61×4 rm	0.7	2.4	45	3688	704	11	13

Application

Control cable for indoor installation,in power and switching stations.as underground cable,for difficult installation where the low weight is particularly advantageous.
