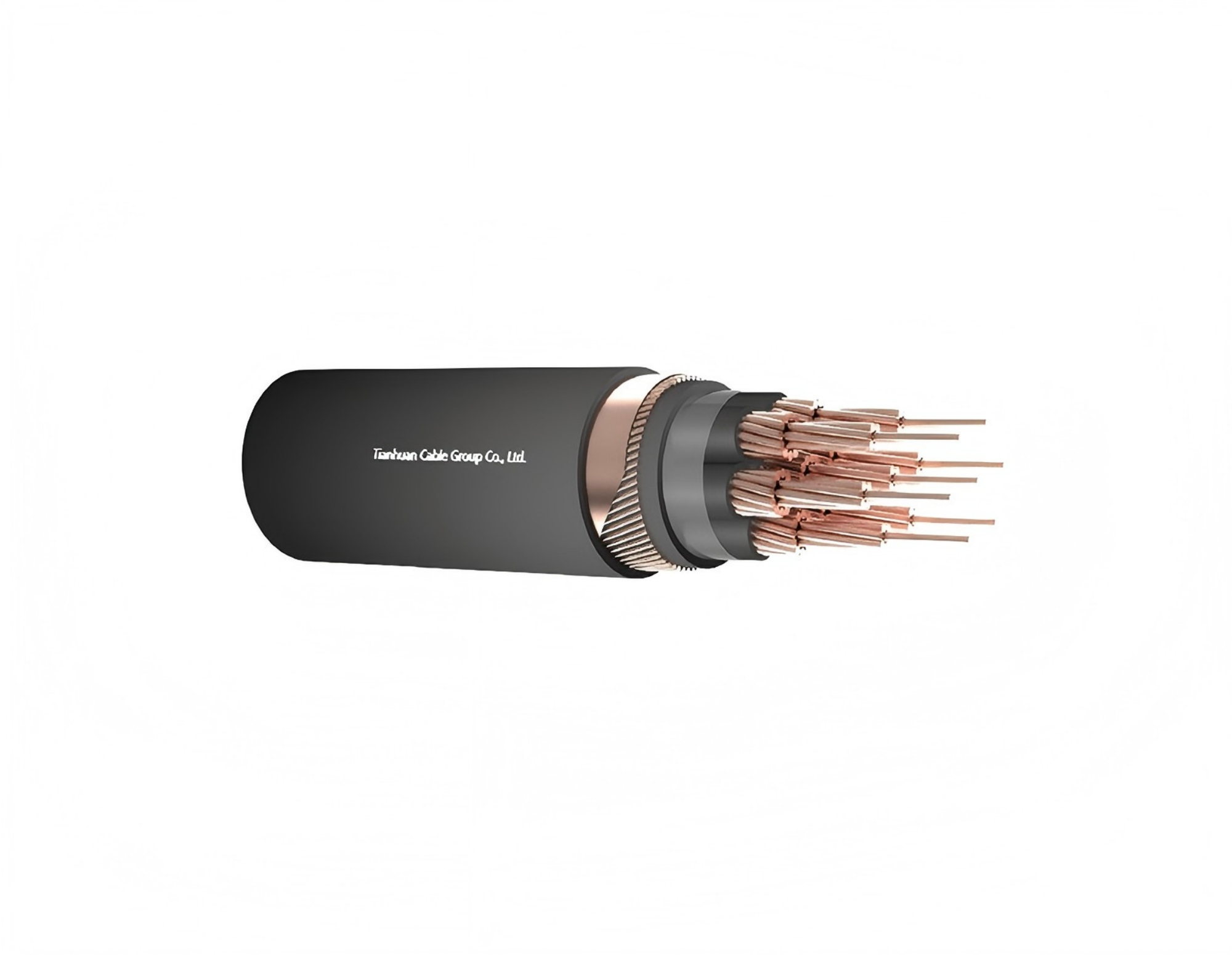

N2XCY (Cu/XLPE/CWS/PVC 0.6/1 kV) Control Cable

Technical Data

Application

Get a quote

Related Products

Technical Data

Voltage Rating Uo/U 0.6/1kV

Test Voltage 3.5KV

Temperature Rating：Maximum Operating:+90°

Maximum Short-Circuit:+250℃

Minimum Bending Radius 15×overall diameter

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×1.5 re	0.7	1.8	17	359	1121	11	16
7×1.5 rm	0.7	1.8	17	369	1020	11	16
8×1.5 re	0.7	1.8	18	396	1121	11	16
8×1.5 rm	0.7	1.8	18	409	1020	11	16
10×1.5 re	0.7	1.8	20	478	1121	10	14
10×1.5 rm	0.7	1.8	20	491	1020	10	14
12×1.5 re	0.7	1.8	20	523	1121	10	14
12×1.5 rm	0.7	1.8	21	538	1020	10	14
14×1.5 re	0.7	1.8	21	567	1121	9	11
14×1.5 rm	0.7	1.8	21	582	1020	9	11
16×1.5 re	0.7	1.8	22	619	1121	9	11
16×1.5 rm	0.7	1.8	22	637	1020	9	11
19×1.5 re	0.7	1.8	22	685	1121	8	10
19×1.5 rm	0.7	1.8	22	689	1020	8	10
21×1.5 re	0.7	1.8	23	701	1121	8	10
21×1.5 rm	0.7	1.8	24	752	1020	8	10
24×1.5 re	0.7	1.8	25	836	1121	7	9
24×1.5 rm	0.7	1.8	26	868	1020	7	9
30×1.5 re	0.7	1.8	26	872	1121	7	9
30×1.5 rm	0.7	1.8	27	995	1020	7	9
40×1.5 re	0.7	1.9	29	1210	1121	6	8
40×1.5 rm	0.7	1.9	30	1239	1020	6	8
52×1.5 re	0.7	2	32	1553	1121	6	8
52×1.5 rm	0.7	2	34	1585	1020	6	8
61×1.5 re	0.7	2.1	35	1835	1121	5	7
61×1.5 rm	0.7	2.1	36	1810	1020	5	7

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×2.5 re	0.7	1.8	18	449	940	18	22
7×2.5 rm	0.7	1.8	18	476	842	18	22
8×2.5 re	0.7	1.8	19	498	940	18	22
8×2.5 rm	0.7	1.8	20	530	842	18	22
10×2.5 re	0.7	1.8	21	605	940	15	18
10×2.5 rm	0.7	1.8	22	645	842	15	18
12×2.5 re	0.7	1.8	22	669	940	15	18
12×2.5 rm	0.7	1.8	23	715	842	15	18
14×2.5 re	0.7	1.8	22	735	940	14	16
14×2.5 rm	0.7	1.8	22	777	842	14	16
16×2.5 re	0.7	1.8	23	810	940	14	16
16×2.5 rm	0.7	1.8	23	868	842	14	16
19×2.5 re	0.7	1.8	24	910	940	13	14
19×2.5 rm	0.7	1.8	24	963	842	13	14
21×2.5 re	0.7	1.8	25	986	940	13	14
21×2.5 rm	0.7	1.8	27	1045	842	13	14
24×2.5 re	0.7	1.8	28	1015	940	11	13
24×2.5 rm	0.7	1.9	30	1196	842	11	13
30×2.5 re	0.7	1.9	29	1312	940	11	13
30×2.5 rm	0.7	1.9	31	1399	842	11	13
40×2.5 re	0.7	2	32	1654	940	9	10
40×2.5 rm	0.7	2	34	1805	842	9	10
52×2.5 re	0.7	2.1	34	2113	940	9	10
52×2.5 rm	0.7	2.2	38	2265	842	9	10
61×2.5 re	0.7	2.2	38	2415	940	8	9
61×2.5 rm	0.7	2.2	41	2579	842	8	9

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×4 re	0.7	1.8	20	599	784	25	28
7×4 rm	0.7	1.8	21	342	704	25	28
8×4 re	0.7	1.8	21	665	784	25	28
8×4 rm	0.7	1.8	22	709	704	25	28
10×4 re	0.7	1.8	23	799	784	21	23
10×4 rm	0.7	1.8	24	863	704	21	23
12×4 re	0.7	1.8	24	899	784	21	23
12×4 rm	0.7	1.8	25	968	704	21	23
14×4 re	0.7	1.8	24	995	784	20	21
14×4 rm	0.7	1.8	26	1055	704	20	21
16×4 re	0.7	1.8	26	1095	784	20	21
16×4 rm	0.7	1.8	27	1168	704	20	21
19×4 re	0.7	1.8	27	1236	784	17	18
19×4 rm	0.7	1.8	28	1319	704	17	18
21×4 re	0.7	1.8	29	1345	784	17	18
21×4 rm	0.7	1.9	30	1439	704	17	18
24×4 re	0.7	1.9	31	1540	784	15	16
24×4 rm	0.7	2	33	1642	704	15	16
30×4 re	0.7	2	32	1821	784	15	16
30×4 rm	0.7	2.1	35	1996	704	15	16
40×4 re	0.7	2.1	36	2356	784	13	14
40×4 rm	0.7	2.2	39	2527	704	13	14
52×4 re	0.7	2.2	41	2979	784	13	14
52×4 rm	0.7	2.3	43	3197	704	13	14
61×4 re	0.7	2.3	44	3417	784	11	13
61×4 rm	0.7	2.4	47	3713	704	11	13

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×6 re	0.7	1.8	22	779	667	32	36
7×6 rm	0.7	1.8	23	823	590	32	36
8×6 re	0.7	1.8	24	868	667	32	36
8×6 rm	0.7	1.8	26	917	590	32	36
10×6 re	0.7	1.8	28	1047	667	28	30
10×6 rm	0.7	1.8	28	1117	590	28	30
12×6 re	0.7	1.8	29	1189	667	28	30
12×6 rm	0.7	1.8	29	1262	590	28	30
14×6 re	0.7	1.9	30	1305	667	25	26
14×6 rm	0.7	1.9	30	1397	590	25	26
16×6 re	0.7	1.9	32	1465	667	25	26
16×6 rm	0.7	1.9	31	1555	590	25	26
19×6 re	0.7	2	33	1658	667	22	23
19×6 rm	0.7	2	33	1463	590	22	23
21×6 re	0.7	2	35	1799	667	22	23
21×6 rm	0.7	2.1	36	1919	590	22	23
24×6 re	0.7	2.1	38	2089	667	20	21
24×6 rm	0.7	2.2	38	2239	590	20	21
30×6 re	0.7	2.2	38	2490	667	20	21
30×6 rm	0.7	2.3	40	2662	590	20	21
40×6 re	0.7	2.3	42	3183	667	17	18
40×6 rm	0.7	2.4	45	3395	590	17	18

Application

Control Cable for indoor installation,in power and switching stations,as underground cable,for difficult installation where the low weight is particularly advantageous.
