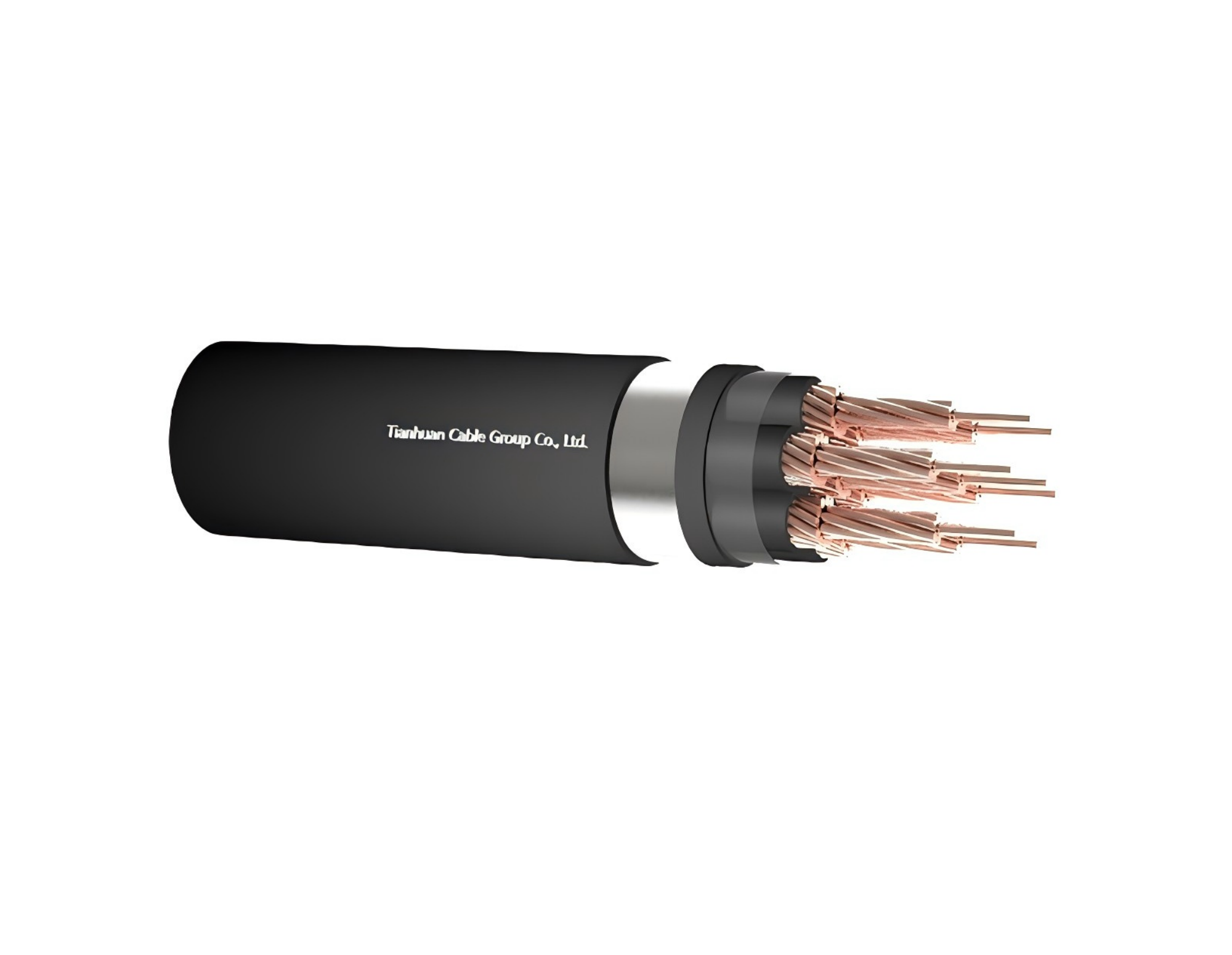

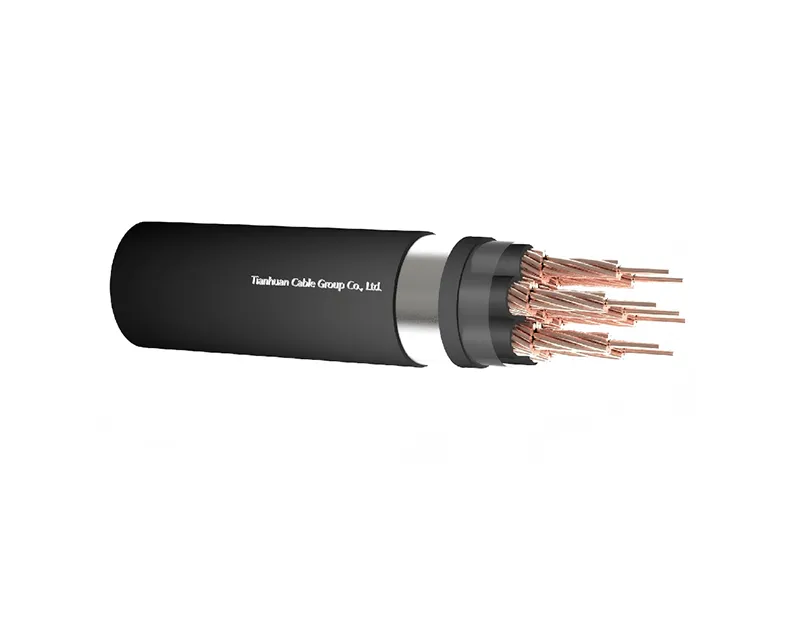

N2XBY (Cu/XLPE/STA/PVC 0.6/1 kV) Control Cable

Technical Data

Application

Get a quote

Related Products

Technical Data

Voltage Rating Uo/U 0.6/1kV

Test Voltage 3.5kV

Temperature Rating：Maximum Operating:+90°

Maximum Short-Circuit:+250℃

Minimum Bending Radius 12×overall diameter

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×1.5 re	0.7	1.8	17	457	1121	11	16
7×1.5 rm	0.7	1.8	17	449	1020	11	16
8×1.5 re	0.7	1.8	17	448	1121	11	16
8×1.5 rm	0.7	1.8	17	440	1020	11	16
10×1.5 re	0.7	1.8	17	438	1121	10	14
10×1.5 rm	0.7	1.8	17	431	1020	10	14
12×1.5 re	0.7	1.8	17	462	1121	10	14
12×1.5 rm	0.7	1.8	18	477	1020	10	14
14×1.5 re	0.7	1.8	18	505	1121	9	11
14×1.5 rm	0.7	1.8	18	520	1020	9	11
16×1.5 re	0.7	1.8	19	557	1121	9	11
16×1.5 rm	0.7	1.8	19	573	1020	9	11
19×1.5 re	0.7	1.8	20	620	1121	8	10
19×1.5 rm	0.7	1.8	20	637	1020	8	10
21×1.5 re	0.7	1.8	20	673	1121	8	10
21×1.5 rm	0.7	1.8	21	691	1020	8	10
24×1.5 re	0.7	1.8	22	766	1121	7	9
24×1.5 rm	0.7	1.8	23	788	1020	7	9
30×1.5 re	0.7	1.8	24	893	1121	7	9
30×1.5 rm	0.7	1.8	24	916	1020	7	9
40×1.5 re	0.7	1.8	26	1116	1121	6	8
40×1.5 rm	0.7	1.8	27	1143	1020	6	8
52×1.5 re	0.7	1.9	29	1400	1121	6	8
52×1.5 rm	0.7	1.9	31	1440	1020	6	8
61×1.5 re	0.7	1.9	31	1601	1121	5	7
61×1.5 rm	0.7	2	32	1644	1020	5	7

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×2.5 re	0.7	1.8	17	516	940	18	22
7×2.5 rm	0.7	1.8	18	544	842	18	22
8×2.5 re	0.7	1.8	19	573	940	18	22
8×2.5 rm	0.7	1.8	19	604	842	18	22
10×2.5 re	0.7	1.8	21	661	940	15	18
10×2.5 rm	0.7	1.8	22	698	842	15	18
12×2.5 re	0.7	1.8	21	729	940	15	18
12×2.5 rm	0.7	1.8	22	769	842	15	18
14×2.5 re	0.7	1.8	22	804	940	14	16
14×2.5 rm	0.7	1.8	22	848	842	14	16
16×2.5 re	0.7	1.8	23	881	940	14	16
16×2.5 rm	0.7	1.8	24	930	842	14	16
19×2.5 re	0.7	1.8	24	987	940	12	14
19×2.5 rm	0.7	1.8	25	1042	842	12	14
21×2.5 re	0.7	1.8	25	1566	940	12	14
21×2.5 rm	0.7	1.8	27	1125	842	12	14
24×2.5 re	0.7	1.8	28	1206	940	11	13
24×2.5 rm	0.7	1.9	29	1411	842	11	13
30×2.5 re	0.7	1.9	29	1498	940	11	13
30×2.5 rm	0.7	1.9	31	1498	842	11	13
40×2.5 re	0.7	2	33	1774	940	9	10
40×2.5 rm	0.7	2.1	34	1881	842	9	10
52×2.5 re	0.7	2.2	38	2580	940	9	10
52×2.5 rm	0.7	2.2	40	2737	842	9	10
61×2.5 re	0.7	2.2	40	2911	940	8	9
61×2.5 rm	0.7	2.3	42	3101	842	8	9

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km	A
7×4 re	0.7	1.8	19	657	784	25	27
7×4 rm	0.7	1.8	20	696	704	25	27
8×4 re	0.7	1.8	20	704	784	25	27
8×4 rm	0.7	1.8	21	747	704	25	27
10×4 re	0.7	1.8	22	849	784	21	23
10×4 rm	0.7	1.8	24	901	704	21	23
12×4 re	0.7	1.8	23	947	784	21	23
12×4 rm	0.7	1.8	25	1005	704	21	23
14×4 re	0.7	1.8	24	1053	784	19	21
14×4 rm	0.7	1.8	26	1118	704	19	21
16×4 re	0.7	1.8	25	1163	784	19	21
16×4 rm	0.7	1.8	27	2235	704	19	21
19×4 re	0.7	1.8	27	1315	784	17	18
19×4 rm	0.7	1.8	28	1452	704	17	18
21×4 re	0.7	1.8	28	1431	784	17	18
21×4 rm	0.7	1.9	30	1527	704	17	18
24×4 re	0.7	1.9	31	1632	784	15	16
24×4 rm	0.7	2	33	1742	704	15	16
30×4 re	0.7	2	32	1931	784	15	16
30×4 rm	0.7	2.1	35	2058	704	15	16
40×4 re	0.7	2.2	37	2814	784	13	14
40×4 rm	0.7	2.2	40	3003	704	13	14
52×4 re	0.7	2.3	42	3508	784	13	14
52×4 rm	0.7	2.4	45	3758	704	13	14
61×4 re	0.7	2.4	45	3995	784	11	11
61×4 rm	0.7	2.5	48	4285	704	11	11

Nom.Cross- section Area	Nominal Thickness		overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	Current Carrying Capacity at 30℃
Nom.Cross- section Area	Insulation	Outer Sheath	overall diameter	cable Weight	DC Resistance at 20℃ Insulation min	In Air	In Ground
mm²	mm	mm	mm	km/kg	MΩ/km
7×6 re	0.7	1.8	20	842	667	32	35
7×6 rm	0.7	1.8	21	896	590	32	35
8×6 re	0.7	1.8	22	896	667	32	35
8×6 rm	0.7	1.8	23	948	590	32	35
10×6 re	0.7	1.8	25	1088	667	27	30
10×6 rm	0.7	1.8	26	1151	590	27	30
12×6 re	0.7	1.8	26	1225	667	27	30
12×6 rm	0.7	1.8	27	1298	590	27	30
14×6 re	0.7	1.8	27	1374	667	25	26
14×6 rm	0.7	1.8	29	1459	590	25	26
16×6 re	0.7	1.8	28	1530	667	25	26
16×6 rm	0.7	1.9	30	1626	590	25	26
19×6 re	0.7	1.9	30	1750	667	22	23
19×6 rm	0.7	2	32	1858	590	22	23
21×6 re	0.7	1.9	31	1912	667	22	23
21×6 rm	0.7	2	33	2028	590	22	23
24×6 re	0.7	2	34	2181	667	19	21
24×6 rm	0.7	2.2	38	2684	590	19	21
30×6 re	0.7	2.2	37	2964	667	19	21
30×6 rm	0.7	2.2	40	3149	590	19	21
40×6 re	0.7	2.3	42	3745	667	17	17
40×6 rm	0.7	2.4	45	3994	590	17	17
52×6 re	0.7	2.5	47	4719	667	17	17
52×6 rm	0.7	2.6	51	5035	590	17	17
61×6 re	0.7	2.6	50	5404	667	15	15
61×6 rm	0.7	2.7	54	5760	590	15	15

Application

Control cable for installations as underground,outdoor,indoor,inducts and where mechanical

protection is required or for higher tensile stresses during installation and opertation

N2XBY (Cu/XLPE/STA/PVC 0.6/1 kV) Control Cable
