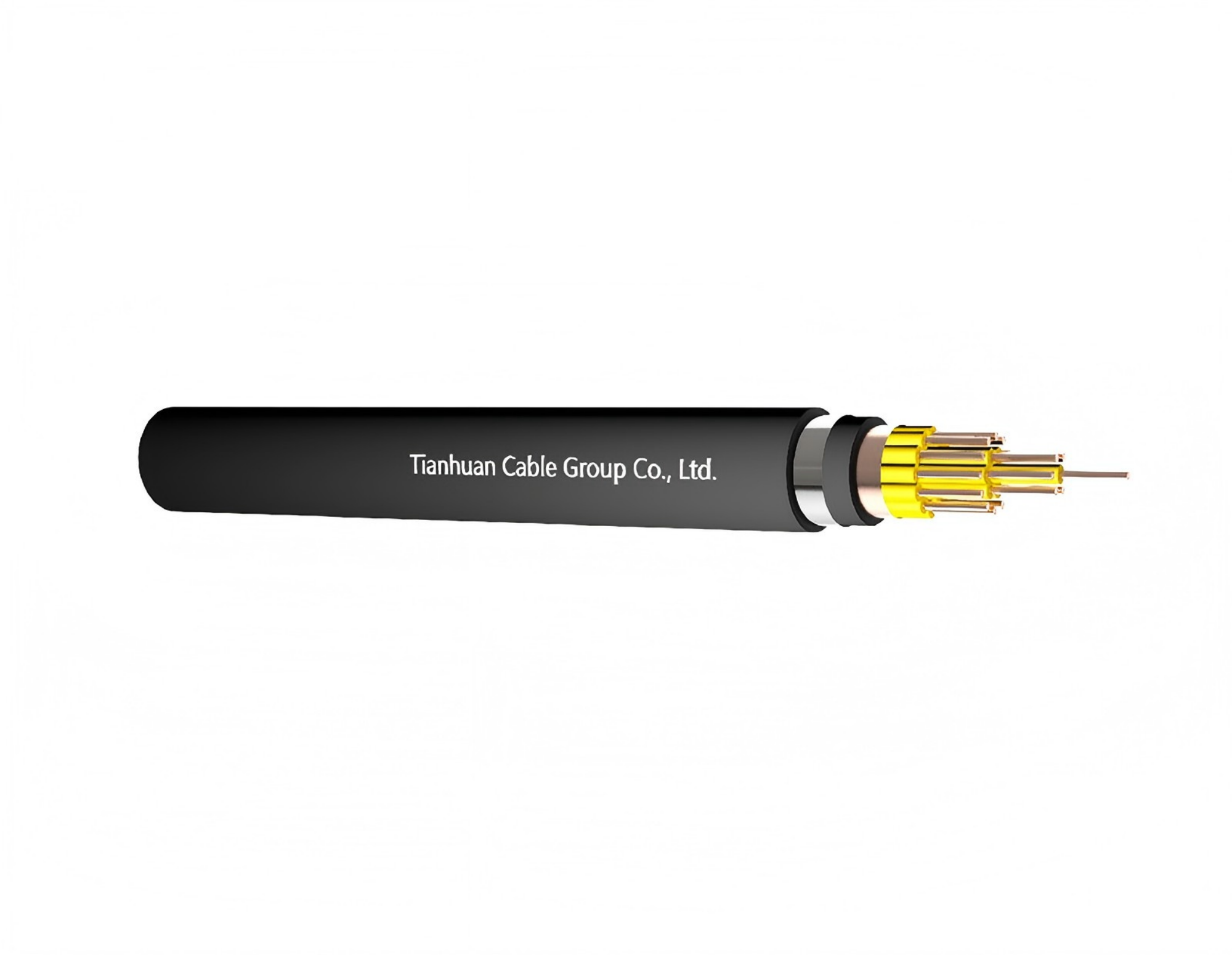

KVVP2 ZR-KVVP2 KVVP3 450V/750V Control Cable

Application

Technical Data

CrossxNom cross- sectional area	Nom thickness of insulation	Nom thickness of CU/AL- Plastic tape	Nom thickness of sheath	Pitch diameter		Min resistance of insulation at	Max.D.C resistance of at 20℃	Approx weight
mm²	mm	mm	mm	min	max	MΩ/km	MΩ/km	(kg/km)
4×0.75	0.6	0.05-0.10	1.2	8.1	9.7	0.012	24.5	144
4×1.0	0.6	0.05-0.10	1.2	8.4	10.2	0.011	18.1	153
4×1.5	0.7	0.05-0.10	1.2	95	11.4	0.011	12.1	190
4×2.5	0.8	0.05-0.10	1.5	10.9	13.1	0.01	7.41	276
4×4	0.8	0.05-0.10	1.5	12.5	15.1	0.0085	4.61	367
4×6	0.8	0.05-0.10	1.5	13.6	16.5	0.007	3.08	467
4×10	1	0.05-0.10	1.7	17.1	20.7	0.0065	1.83	728
5×0.75	0.6	0.05-0.10	1.2	8.6	10.4	0.012	24.5	153
5×1.0	0.6	0.05-0.10	1.2	9	10.9	0.011	18.1	173
5×1.5	0.7	0.05-0.10	1.5	10.2	12.3	0.011	12.1	226
5×2.5	0.8	0.05-0.10	1.5	11.8	14.2	0.01	7.41	325
5×4	0.8	0.05-0.10	1.5	13.5	16.3	0.0085	4.61	437
5×6	0.8	0.05-0.10	1.5	14.8	17.9	0.007	3.08	576
5×10	1	0.05-0.10	1.7	19.1	23	0.0065	1.83	924
7×0.75	0.6	0.05-0.10	1.2	9.3	11.2	0.012	24.5	178
7×1.0	0.6	0.05-0.10	1.2	9.7	11.7	0.011	18.1	209
7×1.5	0.7	0.05-0.10	1.5	11	13.3	0.011	12.1	239
7×2.5	0.8	0.05-0.10	1.5	13.3	16.1	0.01	7.41	398
7×4	0.8	0.05-0.10	1.5	14.6	17.6	0.0085	4.61	528
7×6	0.8	0.05-0.10	1.5	16	19.4	0.007	3.08	717
7×10	1	0.05-0.10	1.7	20.7	25.1	0.0065	1.83	1145
8×0.75	0.6	0.05-0.10	1.5	10.2	12.3	0.012	24.5	206
8×1.0	0.6	0.05-0.10	1.5	10.7	12.9	0.011	18.1	230
8×1.5	0.7	0.05-0.10	1.5	12.8	15.4	0.011	12.1	312
8×2.5	0.8	0.05-0.10	1.5	14.7	17.8	0.01	7.41	486
8×4	0.8	0.05-0.10	1.7	16.2	19.6	0.0085	4.61	589
8×6	0.8	0.05-0.10	1.7	17.9	21.6	0.007	3.08	790
8×10	1	0.05-0.10	1.7	23.2	28.1	0.0065	1.83	1236
10×0.75	0.6	0.05-0.10	1.5	11.3	13.7	0.012	24.5	214
10×1.0	0.6	0.05-0.10	1.5	12.5	15.1	0.011	18.1	300

Cross×Nom cross- sectional area	Nom thickness of insulation	Nom thickness of CU/AL- Plastic tape	Nom thickness of sheath	Pitch diameter		Min resistance of insulation at	Max.D.C resistance of at 20℃	Approx weight
mm²	mm	mm	mm	min	max	MΩ/km	MQ/km	(kg/km)
10×1.5	0.7	0.05-0.10	1.5	14.2	17.2	0.011	12.1	367
10×2.5	0.8	0.05-0.10	1.7	16.5	20	0.01	7.41	572
10×4	0.8	0.05-0.10	1.7	18.6	22.5	0.0085	4.61	787
10×6	0.8	0.05-0.10	1.7	20.5	24.8	0.007	3.08	992
10×10	1	0.05-0.10	1.7	26.3	31.8	0.0065	1.83	1590
12×0.75	0.6	0.05-0.10	1.5	11.7	14.1	0.012	24.5	280
12×1.0	0.6	0.05-0.10	15	12.8	15.5	0.011	18.1	315
12×1.5	7	0.05-0.10	1.5	14.6	17.7	0.011	12.1	423
12×2.5	0.8	0.05-0.10	1.7	17	20.6	0.01	7.41	654
12×4	0.8	0.05-0.10	1.7	19.2	23.2	0.0085	4.61	887
12×6	0.8	0.05-0.10	1.7	21.2	25.6	0.007	3.08	1198
14×0.75	0.6	0.05-0.10	1.5	12.2	14.7	0.012	24.5	312
14×1.0	0.6	0.05-0.10	1.5	13.4	16.2	0.011	18.1	398
14×1.5	0.7	0.05-0.10	1.5	15.3	18.5	0.011	12.1	492
14×2.5	0.8	0.05-0.10	1.7	17.8	21.5	0.01	7.41	721
14×4	0.8	0.05-0.10	1.7	20.1	24.3	0.0085	4.61	973
14×6	0.8	0.05-0.10	1.7	22.2	26.9	0.007	3.08	1203
16×0.75	0.6	0.05-0.10	1.5	13.3	16.1	0.012	24.5	340
16×1.0	0.6	0.05-0.10	1.5	14	16.9	0.011	18.1	389
16×1.5	0.7	0.05-0.10	1.5	16.1	19.4	0.011	12.1	489
16×2.5	0.8	0.05-0.10	1.7	19.1	23.1	0.01	7.41	789
19×0.75	0.6	0.05-0.10	1.5	14	16.9	0.012	24.5	386
19×1.0	0.6	0.05-0.10	1.5	14.7	17.7	0.011	18.1	413
19×1.5	0.7	0.05-0.10	1.7	16.8	20.4	0.011	12.1	612
19×2.5	0.8	0.05-0.10	1.7	20.1	24.3	0.01	7.41	986
24×0.75	0.6	0.05-0.10	1.5	16	19.4	0.012	24.5	476
24×1.0	0.6	0.05-0.10	1.7	16.9	20.4	0.011	18.1	580
24×1.5	0.7	0.05-0.10	1.7	19.9	24	0.011	12.1	792
24×2.5	0.8	0.05-0.10	1.7	23.3	28.2	0.01	7.41	1179
27×0.75	0.6	0.05-0.10	1.7	16.3	19.1	0.012	24.5	503

Cross×Nom cross-sectional area	Nom thickness of insulation	Nom thickness of CU/AL- Plastic tape	Nom thickness of sheath	Pitch diameter		Min resistance of insulation at 70℃	Max.D.C resistance of at 20℃	Approx weight
mm²		mm	mm	min	max	MΩ/km	MΩ/km	(kg/km)
27×1.0	0.6	0.05-0.10	1.7	17.2	20.8	0.011	18.1	612
27×1.5	0.7	0.05-0.10	1.7	20.3	24.5	0.011	12.1	886
27×2.5	0.8	0.05-0.10	1.7	23.8	28.8	0.01	7.41	1286
30×0.75	0.6	0.05-0.10	1.7	16.9	20.4	0.012	24.5	600
30×1.0	0.6	0.05-0.10	1.7	17.8	21.5	0.011	18.1	725
30×1.5	0.7	0.05-0.10	1.7	21	25.3	0.011	12.1	891
30×2.5	0.8	0.05-0.10	1.7	24.6	28.8	0.01	7.41	1384
37×0.75	0.6	0.05-0.10	1.7	18.1	21.9	0.012	24.5	688
37×1.0	0.6	0.05-0.10	1.7	19.5	23.5	0.011	18.1	887
37×1.5	0.7	0.05-0.10	1.7	22.5	27.2	0.011	12.1	1105
37×2.5	0.8	0.05-0.10	2	26.5	32.1	0.01	7.41	1681
44×0.75	0.6	0.05-0.10	1.7	20.5	24.8	0.012	24.5	809
44×1.0	0.6	0.05-0.10	1.7	21.7	26.2	0.011	18.1	987
44×1.5	0.7	0.05-0.10	1.7	25.2	30.4	0.011	12.1	1315
44×2.5	0.8	0.05-0.10	2	30.3	36.7	0.01	7.41	2018
48×0.75	0.6	0.05-0.10	1.7	20.9	25.2	0.012	24.5	910
48×1.0	0.6	0.05-0.10	1.7	22	26.6	0.011	18.1	1028
48×1.5	0.7	0.05-0.10	1.7	25.5	30.9	0.011	12.1	1307
48×2.5	0.8	0.05-0.10	2	30.8	37.2	0.01	7.41	2097
52×0.75	0.6	0.05-0.10	1.7	21.4	25.8	0.012	24.5	935
52×1.0	0.6	0.05-0.10	1.7	22.6	27.3	0.011	18.1	1113
52×1.5	0.7	0.05-0.10	2	26.2	31.7	0.011	12.1	1493
52×2.5	0.8	0.05-0.10	2.2	31.7	38.2	0.01	7.41	2298
61×0.75	0.6	0.05-0.10	1.7	22.6	27.3	0.012	24.5	1025
61×1.0	0.6	0.05-0.10	1.7	23.9	28.9	0.011	18.1	1250
61×1.5	0.7	0.05-0.10	2	28.4	34.3	0.011	12.1	1745
61×2.5	0.8	0.05-0.10	2.2	33.9	41	0.01	7.41	2599

Application

KVVP2 ZR-KVVP2:

Wiring environment apply to indoors job,in trenches and in ducts,etc.for whereever when electrical interference free transmission is needed,if it goZR-KVVP2,flame retardance shall be necessary.

KVVP3:

Wiring environment apply to indoors job,in trenches and in ducts,etc.Suitable for system connection wire of control,signal,protection or measuring for rated voltage up to and including 450/750V.
