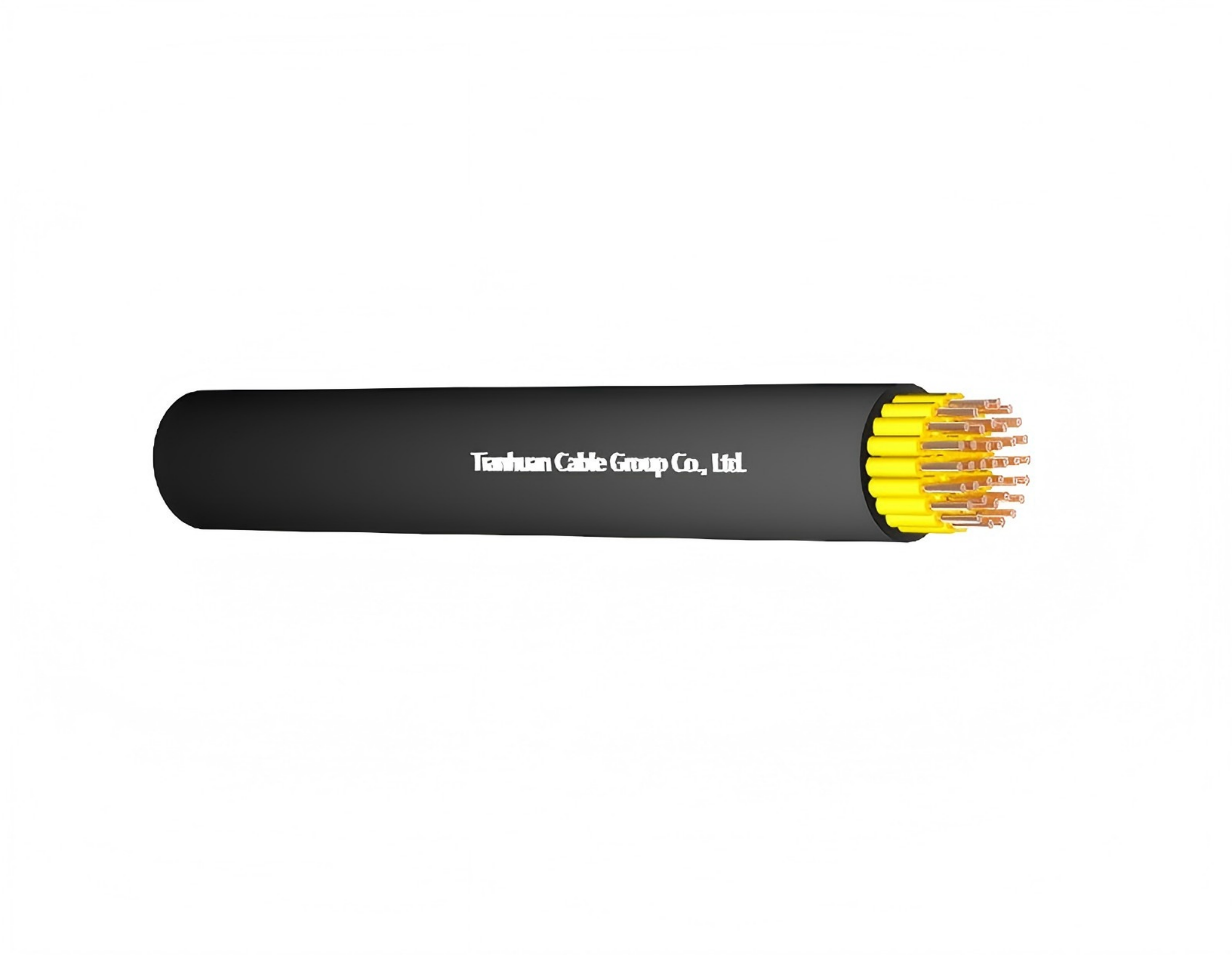

CABLE STRUCTURE:
KVV:Multi-cores of solid conductor,PVC Insulated and PVC Sheathed
ZR-KVV:Multi-cores of solid conductor,Insulated and sheathed by fire resistant PVC
Technical Data | Cross×Nom cross-sectional area | Nom thickness of insulation | Nom thickness of sheath | Pitch diameter | Min resistance of insulation at 70℃ | Max.D.C resistance of at 20℃ | Approx weight | |
| mm² | mm | mm | min | max | MΩ/km | MΩ/km | (kg/km) |
| 2×0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 0.012 | 24.5 | 59 |
| 2×1.0 | 0.6 | 1.2 | 7 | 8.5 | 0.011 | 18.1 | 67 |
| 2×1.5 | 0.7 | 1.2 | 7.9 | 9.5 | 0.011 | 12.1 | 86 |
| 2×2.5 | 0.8 | 1.2 | 9 | 10.9 | 0.01 | 7.41 | 120 |
| 2×4 | 0.8 | 1.2 | 9.9 | 11.9 | 0.0085 | 4.61 | 167 |
| 2×6 | 0.8 | 1.2 | 10.8 | 13.1 | 0.007 | 3.08 | 220 |
| 3×0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 0.012 | 24.5 | 71 |
| 3×1.0 | 0.6 | 1.2 | 7.4 | 8.9 | 0.011 | 18.1 | 82 |
| 3×1.5 | 0.7 | 1.2 | 8.3 | 10 | 0.011 | 12.1 | 108 |
| 3×2.5 | 0.8 | 1.2 | 9.5 | 11.5 | 0.01 | 7.41 | 154 |
| 3×4 | 0.8 | 1.2 | 10.5 | 12.4 | 0.0085 | 4.61 | 210 |
| 3×6 | 0.8 | 1.5 | 11.5 | 13.9 | 0.007 | 3.08 | 310 |
| 4×0.75 | 0.6 | 1.2 | 7.6 | 9.2 | 0.012 | 24.5 | 846 |
| 4×1.0 | 0.6 | 1.2 | 7.9 | 9.6 | 0.011 | 18.1 | 100 |
| 4×1.5 | 0.7 | 1.2 | 9 | 10.9 | 0.011 | 12.1 | 132 |
| 4×2.5 | 0.8 | 1.2 | 10.4 | 12.5 | 0.01 | 7.41 | 193 |
| 4×4 | 0.8 | 1.5 | 11.4 | 13.8 | 0.0085 | 4.61 | 315 |
| 4×6 | 0.8 | 1.5 | 13.2 | 15.9 | 0.007 | 3.08 | 413 |
| 5×0.75 | 0.6 | 1.2 | 8.2 | 9.9 | 0.012 | 24.5 | 99 |
| 5×1.0 | 0.6 | 1.2 | 8.6 | 10.3 | 0.011 | 18.1 | 116 |
| 5×1.5 | 0.7 | 1.2 | 9.7 | 11.7 | 0.011 | 12.1 | 154 |
| 5×2.5 | 0.8 | 1.5 | 11.3 | 13.6 | 0.01 | 7.41 | 243 |
| 5×4 | 0.8 | 1.5 | 13 | 15.7 | 0.0085 | 4.61 | 383 |
| 5×6 | 0.8 | 1.5 | 14.3 | 17.3 | 0.007 | 3.08 | 505 |
| 7×0.75 | 0.6 | 1.2 | 8.8 | 10.6 | 0.012 | 24.5 | 123 |
| 7×1.0 | 0.6 | 1.2 | 9.2 | 11.1 | 0.011 | 18.1 | 146 |
| 7×1.5 | 0.7 | 1.2 | 10.5 | 12.7 | 0.011 | 12.1 | 196 |
| 7×2.5 | 0.8 | 1.5 | 12.8 | 15.5 | 0.01 | 7.41 | 211 |
| 7×4 | 0.8 | 1.5 | 14.1 | 17.1 | 0.0085 | 4.61 | 473 |
| 7×6 | 0.8 | 1.5 | 15.6 | 18.8 | 0.007 | 3.08 | 652 |
| Cross×Nom cross-sectional area | Nom thickness of insulation | Nom thickness of sheath | Pitch diameter | Min resistance of insulation at 70℃ | Max.D.C resistance of at 20℃ | Approx weight | |
| mm² | mm | mm | min | max | MΩ/km | MΩ/km | (kg/km) |
| 2×0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 0.012 | 24.5 | 59 |
| 2×1.0 | 0.6 | 1.2 | 7 | 8.5 | 0.011 | 18.1 | 67 |
| 2×1.5 | 0.7 | 1.2 | 7.9 | 9.5 | 0.011 | 12.1 | 86 |
| 2×2.5 | 0.8 | 1.2 | 9 | 10.9 | 0.01 | 7.41 | 120 |
| 2×4 | 0.8 | 1.2 | 9.9 | 11.9 | 0.0085 | 4.61 | 167 |
| 2×6 | 0.8 | 1.2 | 10.8 | 13.1 | 0.007 | 3.08 | 220 |
| 3×0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 0.012 | 24.5 | 71 |
| 3×1.0 | 0.6 | 1.2 | 7.4 | 8.9 | 0.011 | 18.1 | 82 |
| 3×1.5 | 0.7 | 1.2 | 8.3 | 10 | 0.011 | 12.1 | 108 |
| 3×2.5 | 0.8 | 1.2 | 9.5 | 11.5 | 0.01 | 7.41 | 154 |
| 3×4 | 0.8 | 1.2 | 10.5 | 12.4 | 0.0085 | 4.61 | 210 |
| 3×6 | 0.8 | 1.5 | 11.5 | 13.9 | 0.007 | 3.08 | 310 |
| 4×0.75 | 0.6 | 1.2 | 7.6 | 9.2 | 0.012 | 24.5 | 846 |
| 4×1.0 | 0.6 | 1.2 | 7.9 | 9.6 | 0.011 | 18.1 | 100 |
| 4×1.5 | 0.7 | 1.2 | 9 | 10.9 | 0.011 | 12.1 | 132 |
| 4×2.5 | 0.8 | 1.2 | 10.4 | 12.5 | 0.01 | 7.41 | 193 |
| 4×4 | 0.8 | 1.5 | 11.4 | 13.8 | 0.0085 | 4.61 | 315 |
| 4×6 | 0.8 | 1.5 | 13.2 | 15.9 | 0.007 | 3.08 | 413 |
| 5×0.75 | 0.6 | 1.2 | 8.2 | 9.9 | 0.012 | 24.5 | 99 |
| 5×1.0 | 0.6 | 1.2 | 8.6 | 10.3 | 0.011 | 18.1 | 116 |
| 5×1.5 | 0.7 | 1.2 | 9.7 | 11.7 | 0.011 | 12.1 | 154 |
| 5×2.5 | 0.8 | 1.5 | 11.3 | 13.6 | 0.01 | 7.41 | 243 |
| 5×4 | 0.8 | 1.5 | 13 | 15.7 | 0.0085 | 4.61 | 383 |
| 5×6 | 0.8 | 1.5 | 14.3 | 17.3 | 0.007 | 3.08 | 505 |
| 7×0.75 | 0.6 | 1.2 | 8.8 | 10.6 | 0.012 | 24.5 | 123 |
| 7×1.0 | 0.6 | 1.2 | 9.2 | 11.1 | 0.011 | 18.1 | 146 |
| 7×1.5 | 0.7 | 1.2 | 10.5 | 12.7 | 0.011 | 12.1 | 196 |
| 7×2.5 | 0.8 | 1.5 | 12.8 | 15.5 | 0.01 | 7.41 | 211 |
| 7×4 | 0.8 | 1.5 | 14.1 | 17.1 | 0.0085 | 4.61 | 473 |
| 7×6 | 0.8 | 1.5 | 15.6 | 18.8 | 0.007 | 3.08 | 652 |
| Cross×Nom cross-sectional area | Nom thickness of insulation | Nom thickness of sheath | Pitch diameter | Min resistance of insulation at 70℃ | Max.D.C resistance of at 20℃ | Approx weight | |
| mm² | mm | mm | min | max | MΩ/km | MΩ/km | (kg/km) |
| 19×1.5 | 0.7 | 1.5 | 16.4 | 19.8 | 0.011 | 12.1 | 490 |
| 19×2.5 | 0.8 | 1.7 | 19.6 | 23.7 | 0.01 | 7.41 | 765 |
| 24×0.75 | 0.6 | 1.5 | 15.6 | 18.8 | 0.012 | 24.5 | 373 |
| 24×1.0 | 0.6 | 1.5 | 16.4 | 19.8 | 0.011 | 18.1 | 447 |
| 24×1.5 | 0.7 | 1.7 | 19.4 | 23.4 | 0.011 | 12.1 | 632 |
| 24×2.5 | 0.8 | 1.7 | 22.8 | 27.6 | 0.01 | 7.41 | 961 |
| 27×0.75 | 0.6 | 1.5 | 15.9 | 19.2 | 0.012 | 24.5 | 407 |
| 27×1.0 | 0.6 | 1.5 | 16.7 | 20.2 | 0.011 | 18.1 | 491 |
| 27×1.5 | 0.7 | 1.7 | 19.8 | 23.9 | 0.011 | 12.1 | 674 |
| 27×2.5 | 0.8 | 1.7 | 23.3 | 28.2 | 0.01 | 7.41 | 1061 |
| 30×0.75 | 0.6 | 1.5 | 16.4 | 19.8 | 0.012 | 24.5 | 445 |
| 30×1.0 | 0.6 | 1.7 | 17.5 | 20.5 | 0.011 | 18.1 | 554 |
| 30×1.5 | 0.7 | 1.7 | 20 | 23 | 0.011 | 12.1 | 761 |
| 30×2.5 | 0.8 | 1.7 | 24 | 27 | 0.01 | 7.41 | 1167 |
| 37×0.75 | 0.6 | 1.7 | 17.5 | 20.5 | 0.012 | 24.5 | 544 |
| 37×1.0 | 0.6 | 1.7 | 19 | 23 | 0.011 | 18.1 | 658 |
| 37×1.5 | 0.7 | 1.7 | 22 | 26.6 | 0.011 | 12.1 | 908 |
| 37×2.5 | 0.8 | 1.7 | 26 | 315 | 0.01 | 7.41 | 1401 |
| 44×0.75 | 0.6 | 1.7 | 20.1 | 24.2 | 0.012 | 24.5 | 642 |
| 44×1.0 | 0.6 | 1.7 | 21.2 | 25.6 | 0.011 | 18.1 | 777 |
| 44×1.5 | 0.7 | 1.7 | 24.7 | 29.8 | 0.011 | 12.1 | 1074 |
| 44×2.5 | 0.8 | 2 | 29.9 | 36.1 | 0.01 | 7.41 | 1702 |
| 52×0.75 | 0.6 | 1.7 | 20.9 | 25.3 | 0.012 | 24.5 | 737 |
| 52×1.0 | 0.6 | 1.7 | 22.1 | 26.7 | 0.011 | 18.1 | 896 |
| 52×1.5 | 0.7 | 1.7 | 25.8 | 31.1 | 0.011 | 12.1 | 1243 |
| 52×2.5 | 0.8 | 2 | 31.2 | 372 | 0.01 | 7.41 | 1973 |
| 61×0.75 | 0.6 | 1.7 | 21.9 | 26.5 | 0.012 | 24.5 | 843 |
| 61×1.0 | 0.6 | 1.7 | 23.2 | 28 | 0.011 | 18.1 | 1027 |
| 61×1.5 | 0.7 | 2 | 27 | 32.7 | 0.011 | 12.1 | 1468 |
| 61×2.5 | 0.8 | 2.2 | 33.1 | 40 | 0.01 | 7.41 | 2306 |
Application KVV:Wiring environment apply to indoors job,in trenches and in ducts,ete.suitable for wiring of control,signal,protection and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.Laid in indoor,cable trenches,pipes,and other fixed occasions.
ZR-KVV:Wiring environment apply to indoors job,intrenches and in ducts,etc.all of them ask for flame retardance,suitable for wiring of control,signal,protection and measurement systems with rated voltages of 450/750V and below or 0.6/1kVand below.Laid in indoor,cable trenches,pipes,and other fixed occasions.
