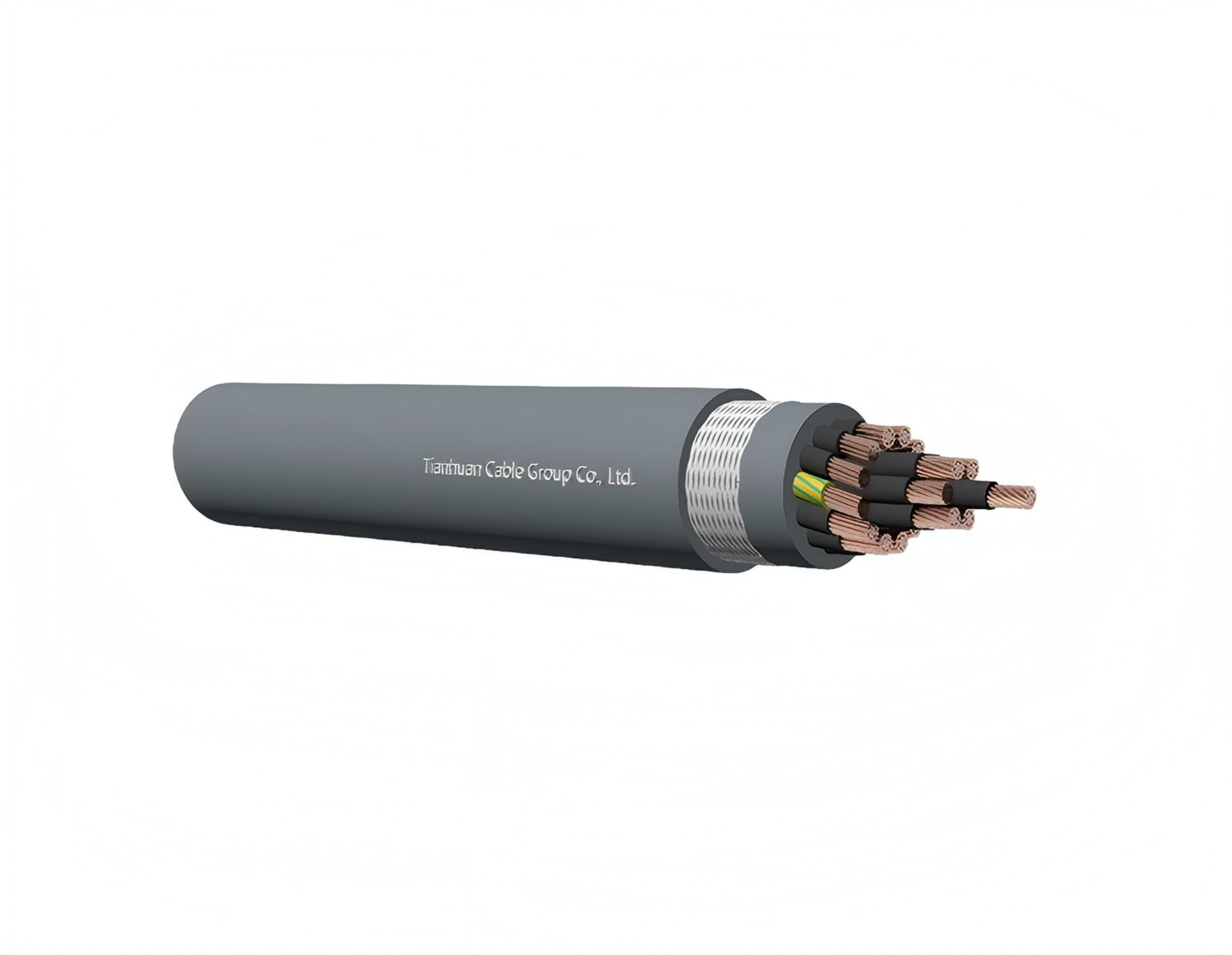

CABLE STRUCTURE:
Conductor:Class 5 flexible stranded bare copper
Insulation:LSZH(Low Smoke Zero Halogen)
Bedding:LSZH(Low Smoke Zero Halogen)
Screen:TCWB(Tinned Copper Wires Braid)
Sheath:LSZH(Low Smoke Zero Halogen)
Technical Data Voltage Rating Uo/U:300/500V
Temperature Rating:Fixed:-40℃ to+80℃
Flexed:-15℃ to +70℃
Minimum Bending Radius :Fixed:6×overall diameter
Flexed:15×overall diameter
| Nom.Cross- section Area | Nominal Thickness | overall diameter | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacites 30℃ Continous | |
| Insulation | Outer Sheath | |||||
| mm² | mm | mm | mm | km/kg | Ω/km | A |
| 2×0.5 | 0.4 | 0.8 | 6.8 | 77 | 39 | 9 |
| 2×0.75 | 0.4 | 0.8 | 7.2 | 77 | 26 | 12 |
| 2×1 | 0.4 | 0.9 | 7.8 | 107 | 19.5 | 15 |
| 2×1.5 | 0.4 | 0.9 | 8.4 | 127 | 13.3 | 18 |
| 3×0.5 | 0.4 | 0.8 | 7.1 | 89 | 39 | 9 |
| 3×0.75 | 0.4 | 0.9 | 7.7 | 106 | 26 | 12 |
| 3×1 | 0.4 | 0.9 | 8.1 | 120 | 19.5 | 15 |
| 3×1.5 | 0.4 | 1 | 9 | 152 | 13.3 | 18 |
| 3×2.5 | 0.5 | 1.1 | 11.1 | 243 | 7.98 | 26 |
| 4×0.50 | 0.4 | 0.9 | 7.7 | 105 | 39 | 9 |
| 4×0.75 | 0.4 | 0.9 | 8.2 | 123 | 26 | 12 |
| 4×1 | 0.4 | 0.9 | 8.7 | 142 | 19.5 | 15 |
| 4×1.5 | 0.4 | 1 | 9.6 | 178 | 13.3 | 18 |
| 4×2.5 | 0.5 | 1.1 | 11.3 | 254 | 7.98 | 26 |
| 4×4 | 0.6 | 1.3 | 13.6 | 371 | 4.95 | 34 |
| 4×6 | 0.65 | 1.4 | 15.2 | 489 | 3.3 | 44 |
| 4×10 | 0.75 | 1.7 | 19.2 | 766 | 1.91 | 6l |
| 4×16 | 0.75 | 1.8 | 21.5 | 1062 | 1.21 | 82 |
| 4×25 | 0.9 | 2.2 | 26.6 | 1577 | 0.780 | 108 |
| 4×35 | 0.95 | 2.4 | 30.4 | 2096 | 0.554 | 135 |
| Nom.Cross- | Nominal Thickness | overall | cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacites 30℃ Continous | |
| section Area | Insulation | Outer Sheath | diameter | |||
| mm² | mm | mm | mm | km/kg | Ω/km | A |
| 5×0.50 | 0.4 | 0.9 | 8.2 | 117 | 39 | 9 |
| 5×0.75 | 0.4 | 0.9 | 8.7 | 138 | 26 | 12 |
| 5×1 | 0.4 | 1 | 9.5 | 166 | 19.5 | 15 |
| 5×1.5 | 0.4 | 1.1 | 10.5 | 208 | 13.3 | 18 |
| 5×2.5 | 0.5 | 1.2 | 12.5 | 302 | 7.98 | 26 |
| 5×4 | 0.6 | 1.3 | 14.9 | 463 | 4.95 | 34 |
| 5×6 | 0.65 | 1.4 | 17.3 | 616 | 3.3 | 44 |
| 5×10 | 0.75 | 1.8 | 21.2 | 946 | 1.91 | 61 |
| 5×16 | 0.75 | 2 | 23.9 | 1315 | 1.21 | 82 |
| 7×0.5 | 0.4 | 0.9 | 8.7 | 138 | 39 | 9 |
| 7×0.75 | 0.4 | 1 | 9.5 | 167 | 26 | 12 |
| 7×1 | 0.4 | 1 | 8.1 | 198 | 19.5 | 15 |
| 7×1.5 | 0.4 | 1.1 | 11.2 | 251 | 13.3 | 18 |
| 7×2.5 | 0.5 | 1.3 | 13.6 | 379 | 7.98 | 26 |
| 7×4 | 0.6 | 1.4 | 16.2 | 588 | 4.95 | 34 |
| 7×6 | 0.65 | 1.6 | 18.8 | 792 | 3.3 | 44 |
| 12×0.5 | 0.4 | 1.1 | 11.1 | 213 | 39 | 9 |
| 12×0.75 | 0.4 | 1.2 | 12.3 | 272 | 26 | 12 |
| 12×1 | 0.4 | 1.2 | 13.1 | 316 | 19.5 | 15 |
| 12×1.5 | 0.4 | 1.4 | 14.8 | 414 | 13.3 | 18 |
| 18×0.75 | 0.4 | 1.3 | 14.1 | 367 | 26 | 12 |
| 18×1 | 0.4 | 1.4 | 15.3 | 441 | 19.5 | 15 |
| 18×1.5 | 0.4 | 1.5 | 17 | 569 | 13.3 | 18 |
| 25×0.75 | 0.4 | 1.5 | 16.7 | 569 | 26 | 12 |
| 25×1 | 0.4 | 1.6 | 18.3 | 611 | 19.5 | 15 |
| 25×1.5 | 0.4 | 1.8 | 20.8 | 818 | 13.3 | 18 |
Application It is a flexible halogen-free insulated and sheathed control cable with number-coded cores and braided,tinned copper sereen.Used in dry or wet interior areas not exposed to mechanical strain.Preferred for mobile installations and confined spaces thanks to its flexible and thin design.Used for measurement and control functions in electronic control systems,production and assembly lines and engineering projects.Cables are composed of halogen-free materials(flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility).They are primarily used in highly populated areas that should have fire resistance.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
