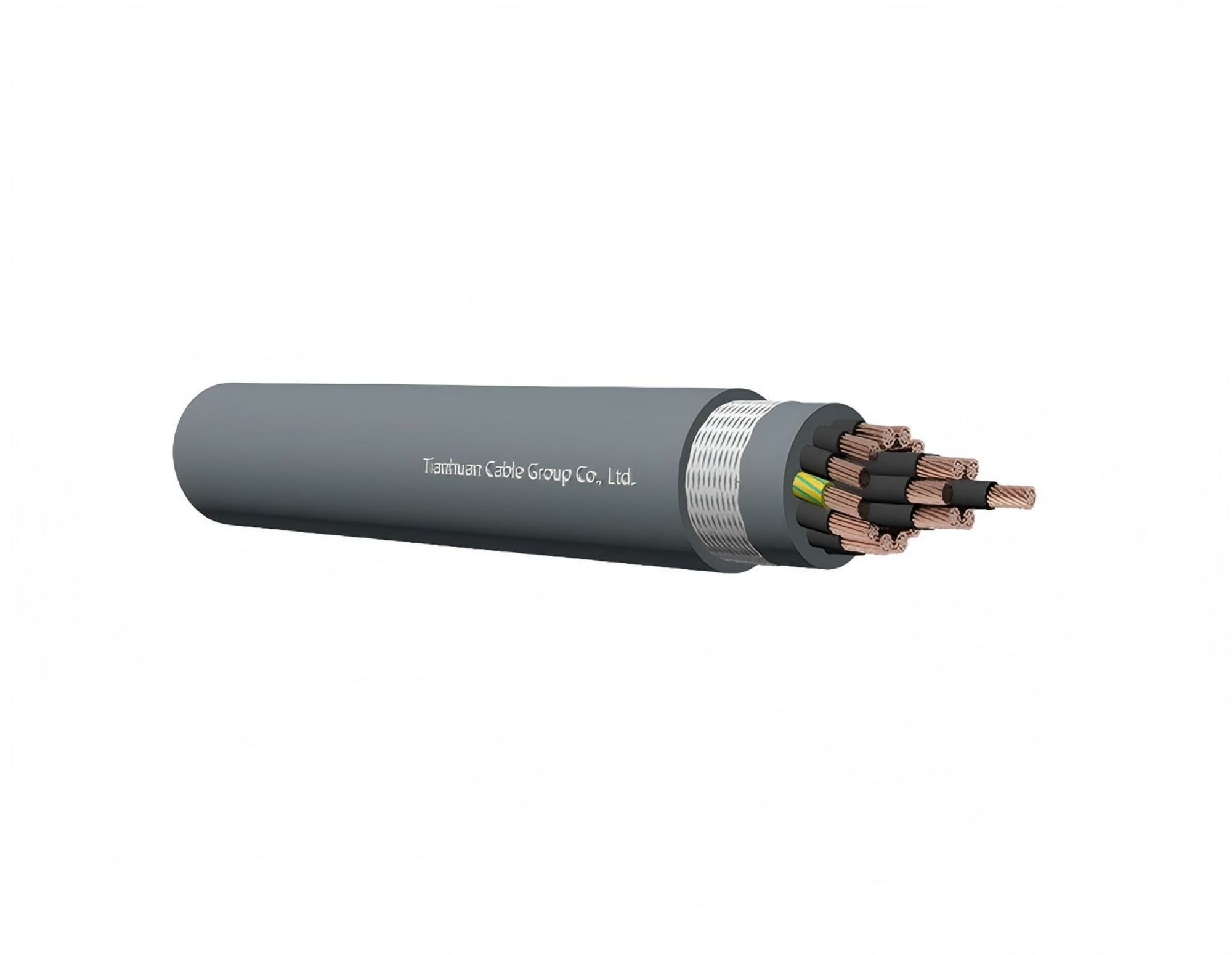

CABLE STRUCTURE:
Conductor:Class 5 flexible flexible plain copper
Insulation:LZSH(Low Smoke Zero Halogen)
Sheath:LZSH(Low Smoke Zero Halogen)
Technical Data Voltage Rating Uo/U:300/500V
Temperature Rating:Fixed:-40℃ to+80℃
Flexed:-5℃ to +70℃
Minimum Bending Radius:Fixed:6×overall diameter
Flexed:15×overall diameter
| Nom.Cross- section Area | Nominal Thickness Insulation Outer Sheath | Overall Diameter | Cable Weight | DC Resistance at 20℃ Conductor min | Current Carrying Capacites 30℃ Continous | |
| mm² | mm | mm | mm | km/kg | Ω/km | A |
| 2×0.5 | 0.4 | 0.7 | 4.8 | 36 | 39 | 9 |
| 2×0.75 | 0.4 | 0.7 | 5.2 | 46 | 26 | 12 |
| 2×1 | 0.4 | 0.7 | 5.6 | 56 | 19.5 | 15 |
| 2×1.5 | 0.4 | 0.8 | 6.4 | 73 | 13.3 | 18 |
| 2×2.5 | 0.5 | 0.9 | 7.6 | 113 | 7.98 | 26 |
| 3×0.5 | 0.4 | 0.7 | 5.1 | 44 | 39 | 9 |
| 3×0.75 | 0.4 | 0.7 | 5.5 | 55 | 26 | 12 |
| 3×1 | 0.4 | 0.8 | 6.1 | 69 | 19.5 | 15 |
| 3×1.5 | 0.4 | 0.8 | 6.8 | 91 | 13.3 | 18 |
| 3×2.5 | 0.5 | 0.9 | 8.3 | 140 | 7.98 | 26 |
| 3×4 | 0.6 | 1 | 10 | 210 | 4.95 | 34 |
| 3×6 | 0.65 | 1.1 | 11.5 | 293 | 3.3 | 44 |
| 3×10 | 0.75 | 1.4 | 14.9 | 500 | 1.91 | 61 |
| 3×16 | 0.75 | 1.5 | 16.8 | 704 | 1.21 | 82 |
| 4×0.50 | 0.4 | 0.7 | 5.5 | 54 | 39 | 9 |
| 4×0.75 | 0.4 | 0.8 | 6.2 | 70 | 26 | 12 |
| 4×1 | 0.4 | 0.8 | 6.7 | 85 | 19.5 | 15 |
| 4×1.5 | 0.4 | 0.9 | 7.6 | 116 | 13.3 | 18 |
| 4×2.5 | 0.5 | 1 | 9.3 | 179 | 7.98 | 26 |
| 4×4 | 0.6 | 1.1 | 11.2 | 269 | 4.95 | 34 |
| 4×6 | 0.65 | 1.2 | 12.8 | 374 | 3.3 | 44 |
| 4×10 | 0.75 | 1.5 | 16.6 | 608 | 1.91 | 61 |
| 4×16 | 0.75 | 1.6 | 18.7 | 844 | 1.21 | 82 |
| 4×25 | 0.9 | 2 | 23.6 | 1327 | 0.780 | 108 |
| 4×35 | 0.95 | 2.2 | 27.2 | 1790 | 0.554 | 135 |
| 5×0.50 | 0.4 | 0.8 | 6.2 | 64 | 39 | 9 |
| 5×0.75 | 0.4 | 0.8 | 6.7 | 83 | 26 | 12 |
| 5×1 | 0.4 | 0.9 | 7.5 | 104 | 19.5 | 15 |
| 5×1.5 | 0.4 | 0.9 | 8.3 | 136 | 13.3 | 18 |
| 5×2.5 | 0.5 | 1.1 | 10.3 | 213 | 7.98 | 26 |
| 5×4 | 0.6 | 1.2 | 12.4 | 321 | 4.95 | 34 |
| 5×6 | 0.65 | 1.3 | 14.3 | 447 | 3.3 | 44 |
| 5×10 | 75 | 1.6 | 18.4 | 760 | 1.91 | 61 |
| 5×16 | 0.75 | 1.8 | 20.9 | 1064 | 1.21 | 82 |
| 5×25 | 0.9 | 2.2 | 26.4 | 1673 | 0.780 | 108 |
| 7×0.5 | 0.4 | 0.8 | 6.7 | 81 | 39 | 9 |
| 7×0.75 | 0.4 | 0.9 | 7.5 | 108 | 26 | 12 |
| 7×1 | 0.4 | 0.9 | 8.1 | 130 | 19.5 | 15 |
| 7×1.5 | 0.4 | 1 | 9.2 | 177 | 13.3 | 18 |
| 7×2.5 | 0.5 | 1.10 | 11.2 | 277 | 7.98 | 26 |
| 7×4 | 0.6 | 1.30 | 13.7 | 423 | 4.95 | 34 |
| 7×6 | 0.65 | 1.40 | 15.7 | 593 | 3.3 | 44 |
| 8×0.5 | 0.4 | 0.9 | 7.5 | 95 | 26 | 12 |
| 8×1 | 0.4 | 1 | 9 | 150 | 19.5 | 15 |
| 8×1.5 | 0.4 | 1 | 10 | 200 | 13.3 | 18 |
| 12×0.5 | 0.4 | 1 | 9.1 | 139 | 39 | 9 |
| 12×0.75 | 0.4 | 1 | 9.9 | 179 | 26 | 12 |
| 12×1 | 0.4 | 1.10 | 10.9 | 225 | 19.5 | 15 |
| 12×1.5 | 0.4 | 1.20 | 12.4 | 302 | 13.3 | 18 |
| 18×0.5 | 0.4 | 1.10 | 10.7 | 201 | 39 | 9 |
| 18×0.75 | 0.4 | 1.20 | 11.9 | 230 | 26 | 12 |
| 18×1 | 0.4 | 1.20 | 12 .9 | 324 | 19.5 | 15 |
| 18×1.5 | 0.4 | 1.40 | 14.8 | 446 | 13.3 | 18 |
| 18×2.5 | 0.5 | 1.60 | 18.2 | 704 | 7.98 | 26 |
| 25×0.5 | 0.4 | 1.20 | 12.9 | 285 | 39 | 9 |
| 25×0.75 | 0.4 | 1.30 | 14.3 | 372 | 26 | 12 |
| 25×1 | 0.4 | 1.40 | 15.7 | 462 | 19.5 | 15 |
| 25×1.5 | 0.4 | 1.60 | 18 | 627 | 13.3 | 18 |
| 25×2.5 | 0.5 | 1.90 | 22.3 | 997 | 7.98 | 26 |
| 34×0.75 | 0.4 | 1.50 | 16.3 | 492 | 26 | 12 |
| 34×1 | 0.4 | 1.60 | 17.9 | 617 | 19.5 | 15 |
| 34×1.5 | 0.4 | 1.70 | 20.2 | 833 | 13.3 | 18 |
Application Low smoke halogen-free flexible connecting cable for instrumentation and control equipment for tooling machinery,production lines,and in flexible applications with free movement and no tensile load.Suitable for use in dry,ambient and wet rooms.These cables are not suitable for outdoor or underground installations.
