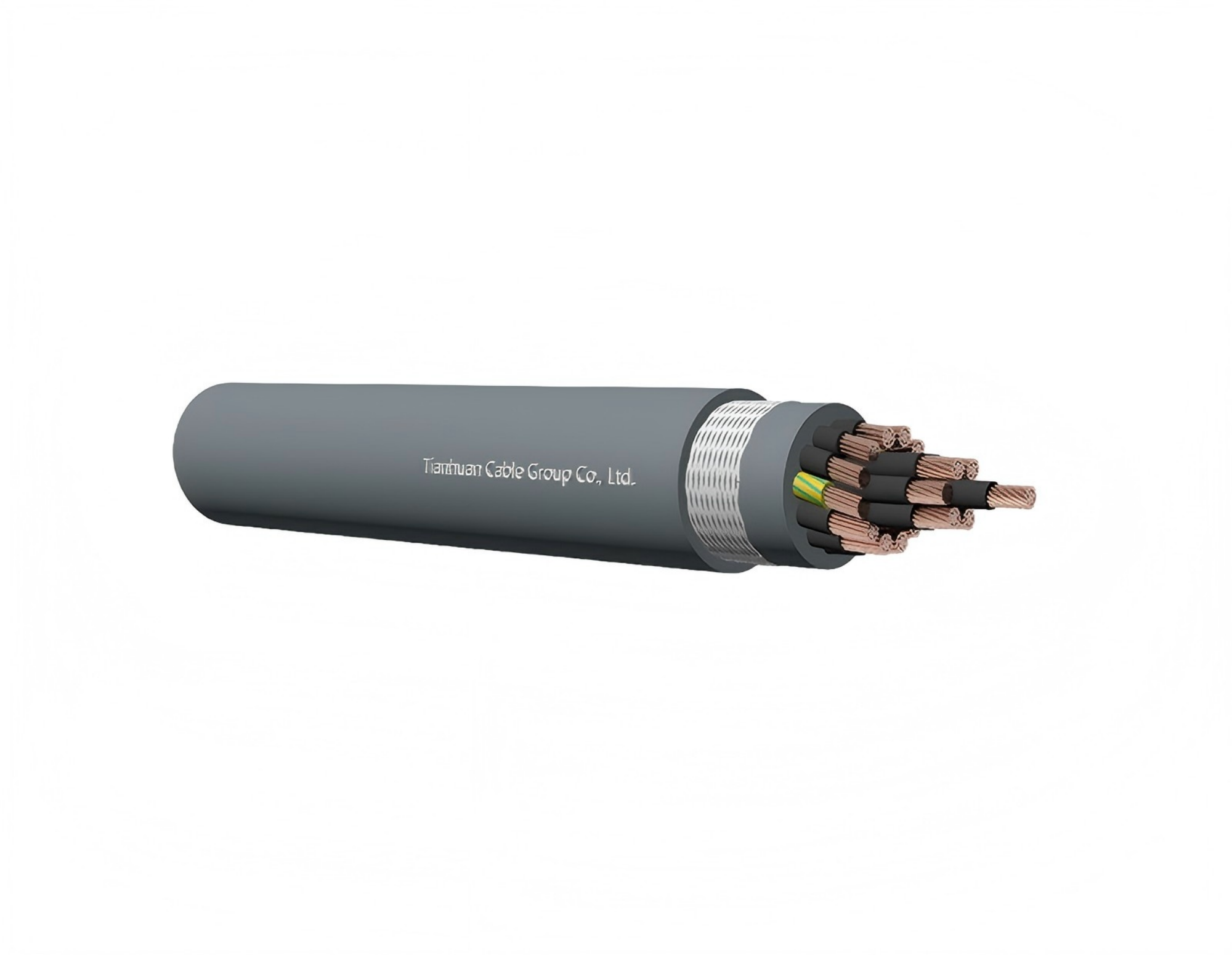

CABLE STRUCTURE:
Conductor:Class 5 flexible stranded bare copper
Insulation:XLPE
Sheath:Low Smoke Halogen Free outer sheath,Grey Colour or black colour
Technical Data Voltage Rating Uo/U:0.6/1kV
Max.working temperature:90℃
Min.laying temperature:-5℃
Minimum Bending Radius:15×overall diameter
| Nom.Cross- section Area | overall diameter | cable Weight | Nom.Cross- section Area | overall diameter | cable Weight |
| mm² | mm | km/kg | mm² | mm | km/kg |
| 2×1.5 | 10.4 | 155 | 4×6 | 16.6 | 495 |
| 3×1.5 | 10.9 | 178 | 5×6 | 20.3 | 707 |
| 4×1.5 | 11.8 | 210 | 7×6 | 21.9 | 826 |
| 5×1.5 | 12.7 | 248 | 3×10 | 19.6 | 682 |
| 7×1.5 | 13.7 | 300 | 4×10 | 21.2 | 829 |
| 8×1.5 | 14.7 | 340 | 5×10 | 23.0 | 990 |
| 10×1.5 | 17.0 | 427 | 7×10 | 24.9 | 1236 |
| 12×1.5 | 17.5 | 453 | 3×16 | 219 | 924 |
| 14×1.5 | 18.4 | 525 | 4×16 | 23.9 | 1143 |
| 18×1.5 | 20.3 | 652 | 5×16 | 26.1 | 1381 |
| 21×1.5 | 21.4 | 689 | 7×16 | 28.5 | 1757 |
| 25×1.5 | 24.3 | 835 | 3×25 | 25.7 | 1332 |
| 32×1.5 | 26.2 | 1017 | 4×25 | 28.1 | 1657 |
| 34×1.5 | 26.9 | 1094 | 5×25 | 31.0 | 2030 |
| 37×1.5 | 27.2 | 1126 | 3×35 | 28.9 | 1754 |
| 42×1.5 | 29.4 | 1312 | 4×35 | 32.3 | 2244 |
| 50×1.5 | 32.2 | 1534 | 5×35 | 35.6 | 2746 |
| 2×2.5 | 11.2 | 190 | 3×50 | 33.7 | 2437 |
| 3×2.5 | 11.8 | 223 | 4×50 | 37.1 | 3067 |
| 4×2.5 | 12.7 | 263 | 5×50 | 411 | 3777 |
| 5×2.5 | 13.8 | 317 | 3×70 | 378 | 3207 |
| 7×2.5 | 14.9 | 388 | 4×70 | 41.6 | 4045 |
| 8×2.5 | 16 | 440 | 5×70 | 46.4 | 5021 |
| 10×2.5 | 18.6 | 557 | 3×95 | 43.3 | 4277 |
| 12×2.5 | 19.2 | 599 | 4×95 | 48.0 | 5442 |
| 14×2.5 | 20.1 | 692 | 5×95 | 53.2 | 6710 |
| 18×2.5 | 22.3 | 868 | 3×120 | 47.2 | 5234 |
| 19×2.5 | 22.8 | 890 | 4×120 | 52.2 | 6653 |
| 21×2.5 | 23.6 | 930 | 5×120 | 58.1 | 8242 |
| 25×2.5 | 26.8 | 1123 | 3×150 | 52.1 | 6453 |
| 34×2.5 | 30.2 | 1295 | 4×150 | 58.0 | 8262 |
| 42×2.5 | 32.0 | 1725 | 3×185 | 57.6 | 7923 |
| 2×4 | 13.2 | 271 | 4×185 | 63.7 | 10078 |
| 3×4 | 13.9 | 321 | 3×240 | 64.2 | 10054 |
| 4×4 | 15.1 | 385 | 4×240 | 71.7 | 12925 |
| 5×4 | 16.5 | 468 | |||
| 7×4 | 17.9 | 580 | |||
| 3×6 | 15.2 | 407 |
Application Low smoke halogen-free flexible connecting cable for instrumentation and control equipment for tooling machinery,production lines,and inflexible applications with free movement and no tensile load.Suitable for use in dry,ambient and wet rooms.These cables are not suitable for outdoor or underground installations.
