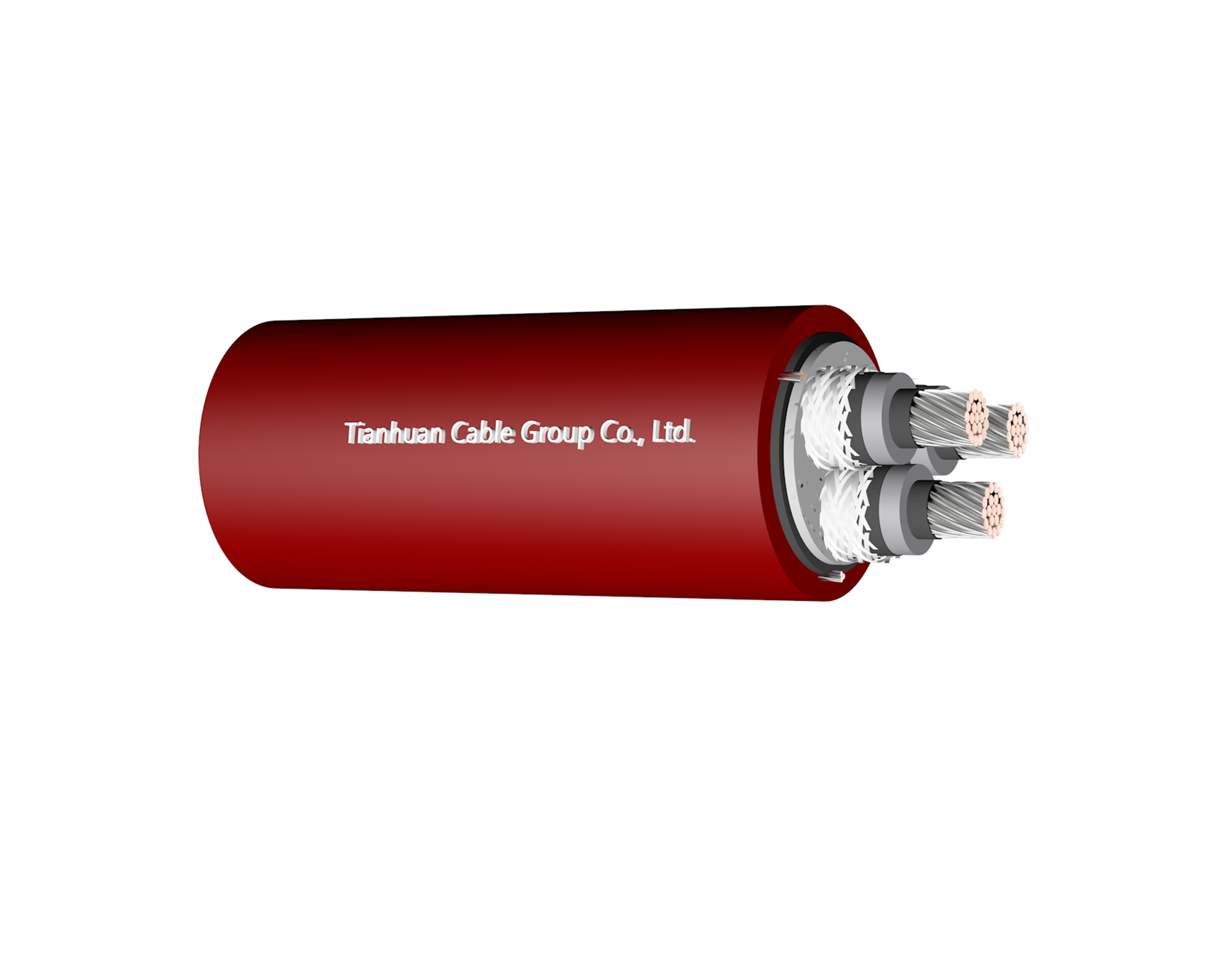

CABLE STRUCTURE:
Conductor:Class 5 tinned copper
Conductor Shielding:Rubber Type Semiconductive Inner Shielding
Insulation:Power Core:EPDM Rubber(XJ-30)
Insulation Shielding:Rubber Type Semiconductive Outer Shielding+Semiconductive Strip+Metal/Fiber Braided
Fillers(Optiona1):Edge Gap Rubber Strip or Glass Fiber Rope
Inner Sheath:EPDM Rubber(XJ-10)
Outer Sheath:Mixture of Chlorinated Polyethylene or Other Comparable Materials(XH-03)
Technical Data Rated voltage:(U₀/U)3.6/6kV;(U₀/U)6/10kV;(U₀/U)8.7/10kV
The maximum system voltage:(Um)1.1 times U
Temperature classification:Maximum operating temperature of the conductor:+75℃
Operating environment temperature:-20℃ to+45℃
Cable laying temperature:Not lower than 0℃(When the ambient temperature is below 0℃,the cable should be preheated.)
Min.Bending Radius:6×cable O.D
Finished product voltage test:Power wire core:12.5 kV/5minutes
Partial discharge:1.73U₀The discharge amount at this voltage is no more than 20pC.Installation method:The laying of underground cables in coal mines is divided into methods such as in level tunnels or those below 45℃,in chambers,and in vertical shafts or in tunnels above 45℃ or in boreholes.
MYPTJ 3.6/6 kV
| Nom.Crosssection of conductor | Diameter of the power core conductor | Nominal thickness of the insulation for the power core wire | Inner sheath thickness | Nominal thickness of the outer sheath | Outer diameter of the cable | Total weight of the cable | Earth wire core 20℃ Maximum DC resistance of conductor |
| N×mm2 | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 3×25+3×16/3+3×2.5 | 7.3 | 4.0 | 2.5 | 5.5 | 62.2 | 5369.4 | 2.31 |
| 3×35+3×16/3+3×2.5 | 9.2 | 4.0 | 2.5 | 5.5 | 66.2 | 6138.6 | 2.31 |
| 3×50+3×16/3+3×2.5 | 11 | 4.0 | 2.5 | 5.5 | 70.2 | 7031.3 | 2.31 |
| 3×70+3×25/3+3×2.5 | 13.1 | 4.0 | 3.0 | 5.5 | 75.8 | 8514.5 | 1.48 |
| 3×95+3×35/3+3×2.5 | 14.4 | 4.0 | 3.0 | 5.5 | 78.6 | 9690.6 | 1.05 |
| 3×120+3×35/3+3×2.5 | 16.3 | 4.0 | 3.0 | 5.5 | 82.7 | 10925.6 | 1.05 |
| 3×150+3×50/3+3×2.5 | 18.4 | 4.0 | 3.0 | 5.5 | 87.2 | 12629.2 | 0.73 |
| Power Core Crosssection of conductor | Current carrying capacity | Maximum direct current resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃ |
| mm2 | A | Ω/km | MΩ ·km |
| 25 | 110 | 0.795 | 650 |
| 35 | 135 | 0.565 | 550 |
| 50 | 170 | 0.393 | 500 |
| 70 | 205 | 0.277 | 4450 |
| 95 | 250 | 0.210 | 400 |
| 120 | 295 | 0.164 | 350 |
| 150 | 320 | 0.13 | 350 |
MYPTJ 6/10 kV
| Nom.Crosssection of conductor | Diameter of the power core conductor | Nominal thickness of the insulation for the power core wire | Inner sheath thickness | Nominal thickness of the outer sheath | Outer diameter of the cable | Total weight of the cable | Earth wire core 20℃ Maximum DC resistance of conductor |
| N×mm2 | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 3×25+3×16/3+3×2.5 | 7.3 | 4.5 | 2.5 | 5.5 | 64.5 | 5742.3 | 2.310 |
| 3×35+3×16/3+3×2.5 | 9.2 | 4.5 | 2.5 | 5.5 | 68.5 | 6528.4 | 2.310 |
| 3×50+3×25/3+3×2.5 | 11 | 4.5 | 3.0 | 5.5 | 73.6 | 7794.7 | 1.480 |
| 3×70+3×35/3+3×2.5 | 13.1 | 4.5 | 3.0 | 5.5 | 78.1 | 9120.1 | 1.050 |
| 3×95+3×50/3+3×2.5 | 14.4 | 4.5 | 3.0 | 5.5 | 80.9 | 10436.1 | 0.731 |
| 3×120+3×50/3+3×2.5 | 16.3 | 4.5 | 3.0 | 5.5 | 85.0 | 11671.0 | 0.731 |
| 3×150+3×50/3+3×2.5 | 18.4 | 4.5 | 3.0 | 5.5 | 89.6 | 13139.1 | 0.731 |
| Crosssection of conductor | Current carrying capacity | resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃at 20℃ |
| mm2 | A | Ω/km | MΩ ·km |
| 25 | 110 | 0.795 | 650 |
| 35 | 135 | 0.565 | 550 |
| 50 | 170 | 0.393 | 500 |
| 70 | 205 | 0.277 | 4450 |
| 95 | 250 | 0.210 | 400 |
| 120 | 295 | 0.164 | 350 |
| 150 | 320 | 0.132 | 350 |
MYPTJ 8.7/10 kV
| Nom.Crosssection of conductor | Diameter of the power core conductor | Nominal thickness of the insulation for the power core wire | Inner sheath thickness | Nominal thickness of the outer sheath | Outer diameter of the cable | Total weight of the cable | Earth wire core 20℃ Maximum DC resistance of conductor |
| N×mm2 | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 3×25+3×16/3+3×2.5 | 7.3 | 5.5 | 2.5 | 5.5 | 69.1 | 5742.3 | 2.310 |
| 3×35+3×16/3+3×2.5 | 9.2 | 5.5 | 3.0 | 5.5 | 74.1 | 6528.4 | 2.310 |
| 3×50+3×25/3+3×2.5 | 11 | 5.5 | 3.0 | 5.5 | 78.1 | 7794.7 | 1.480 |
| 3×70+3×35/3+3×2.5 | 13.1 | 5.5 | 3.0 | 5.5 | 82.7 | 9120.1 | 1.050 |
| 3×95+3×50/3+3×2.5 | 14.4 | 5.5 | 3.0 | 5.5 | 85.5 | 10436.1 | 0.731 |
| 3×120+3×50/3+3×2.5 | 16.3 | 5.5 | 3.0 | 5.5 | 89.6 | 11671.0 | 0.731 |
| 3×150+3×50/3+3×2.5 | 18.4 | 5.5 | 3.0 | 5.5 | 94.1 | 13139.1 | 0.731 |
| Power Core Crosssection of conductor | Current carrying capacity | Maximum direct current resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃ |
| mm2 | A | Ω/km | MQ ·km |
| 25 | 110 | 0.795 | 1250 |
| 35 | 135 | 0.565 | 1150 |
| 50 | 170 | 0.393 | 1000 |
| 70 | 205 | 0.277 | 900 |
| 95 | 250 | 0.210 | 800 |
| 120 | 295 | 0.164 | 750 |
| 150 | 320 | 0.132 | 700 |
Application Suitable for power connections of underground mobile transformers with a rated voltage not exceeding 3.6/6kV、6/10kV、8.7/10kV and similar equipment.
