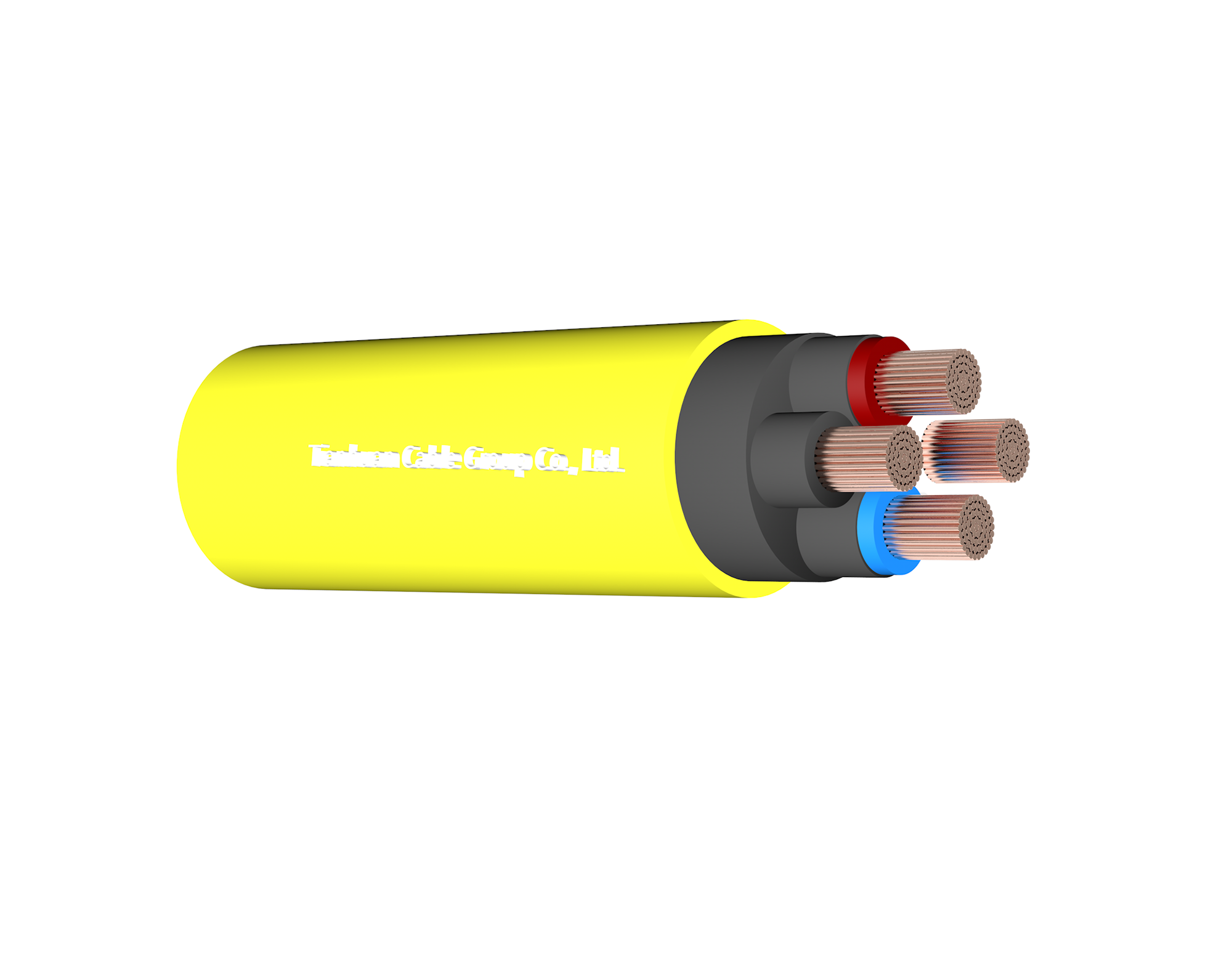

CABLE STRUCTURE:
Conductor:Class 5 copper
Insulation:Power Core:EPDM Rubber(XJ-30)
Ground Core:Insulation Rubber
Filler:(optional)Rubber strips or glass fiber ropes
Sheath:Mixed material of chlorinated polyethylene or equivalent(XH-03)
Technical Data TECHNICAL DATA:
Rated voltage:0.38/0.66kV
The maximum system voltage:(Um)1.1 times U
Temperature classification:Maximum operating temperature of the conductor:+75℃
Operating environment temperature:-20℃ to +45℃
Cable laying temperature:Not lower than 0℃(When the ambient temperature is below 0℃,the cable should be preheated.)
Min.Bending Radius:6×cable O.D
Finished product voltage test:Power wire core:3.0kV/5minutes
Installation method:The laying of underground cables in coal mines is divided into methods such as in level tunnels or those below 45℃,in chambers,and in vertical shafts or in tunnels above 45℃ or in boreholes.
| Nom.Crosssection of conductor | Diameter of the power core conductor | Nominal thickness of the insulation for the power core wire | Nominal thickness of the sheath | Outer diameter of the cable | Total weight of the cable |
| N×mm2 | mm | mm | mm | mm | kg/km |
| 3×10+1×10 | 4.8 | 1.8 | 4.5 | 31 | 1484 |
| 3×10+1×6 | 4.8 | 1.8 | 4.5 | 30.1 | 1396.7 |
| 3×16+1×10 | 5.8 | 1.8 | 4.5 | 33 | 1758.5 |
| 3×16+1×6 | 5.8 | 1.8 | 4.5 | 32.6 | 1718.6 |
| 3×25+1×10 | 7.3 | 2 | 5 | 37.6 | 2374.4 |
| 3×25+1×16 | 7.3 | 2 | 5 | 38.1 | 2426.6 |
| 3×35+1×10 | 9.2 | 2 | 5 | 42.4 | 2985.7 |
| 3×35+1×16 | 9.2 | 2 | 5 | 42 | 2979 |
| 3×50+1×10 | 11 | 2.2 | 5.5 | 48.4 | 3951.8 |
| 3×50+1×16 | 11.0 | 2.2 | 5.5 | 48.2 | 3957 |
| 3×50+1×25 | 11 | 2.2 | 5.5 | 48.3 | 4012 |
| 3×70+1×10 | 13.1 | 2.2 | 6.5 | 57.3 | 5362.3 |
| 3×70+1×25 | 13.1 | 2.2 | 5.5 | 53 | 4950.3 |
| 3×95+1×25 | 14.4 | 2.4 | 6 | 58 | 6180.4 |
| 3×120+1×35 | 16.3 | 2.4 | 6 | 63 | 7403.8 |
| 3×150+1×50 | 18.4 | 2.6 | 6 | 68.8 | 8957.4 |
| 3×95+1×50 | 14.4 | 2.4 | 6 | 58 | 6305.6 |
| Power Core Crosssection of conductor | Current carrying capacity | Maximum direct current resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃ |
| mm2 | A | Ω/km | MΩ ·km |
| 10 | 63 | 1.91 | 400 |
| 16 | 85 | 1.21 | 350 |
| 25 | 110 | 0.78 | 300 |
| 35 | 135 | 0.554 | 250 |
| 50 | 170 | 0.386 | 250 |
| 70 | 205 | 0.272 | 200 |
| 95 | 250 | 0.206 | 200 |
| 120 | 295 | 0.161 | 200 |
| 150 | 320 | 0.129 | 180 |
Application Suitable for power connection of underground coal mining equipment with a rated voltage not exceeding 0.38/0.66KV.
