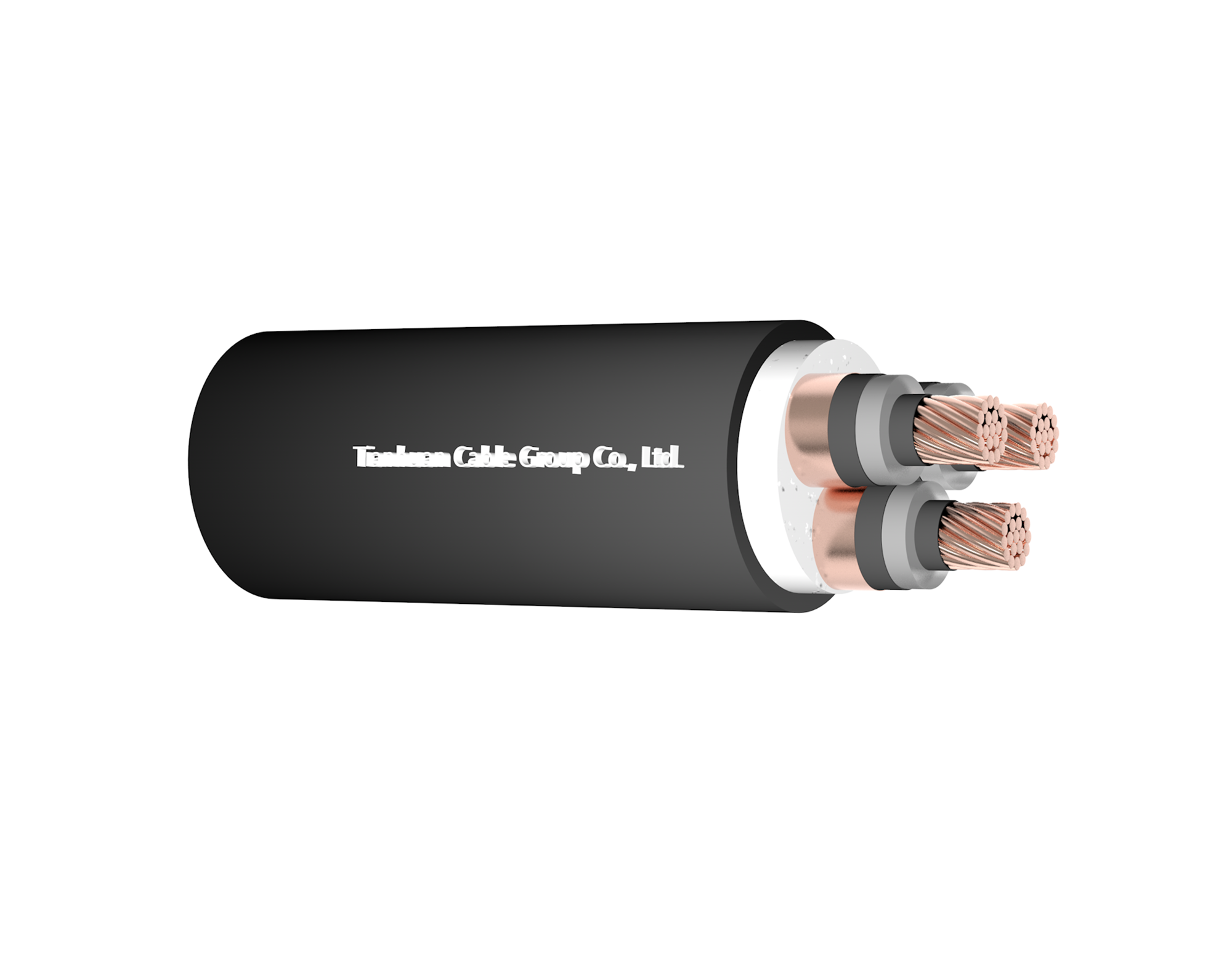

CABLE STRUCTURE:
Conductor:Copper
Insulation:XLPE
Shielding layer:Copper tape shielding
Sheath:PVC
Technical Data Rated voltage:(U₀/U)8.7/10kV
Temperature classification:The cable conductor is permitted to have a maximum long-term operating temperature not exceeding 90℃.During a short circuit(with the maximum duration not exceeding 5 seconds),the maximum temperature of the cable conductor does not exceed 250℃.When laying the cables on the ground,the ambient temperature during the laying process should not be lower than 0℃.
Min.Bending Radius:3 core:15(D+d)±5%
Finished product voltage test:Wire core:30.5kV/5 minutes
Partial discharge:1.73U。The discharge amount at this voltage is no more than 10 pC.z
Installation scenario:Indoor tunnels and cable trenches,etc.,cannot withstand mechanical external forces.
Nominal cross- section | Conductor diameter | Insulation nominal thickness | Nominal thickness of the sheath | Outer diameter of the cable | Cable weight | Maximum direct current resistance of the conductor at 20℃ | 25℃ cable carrying c | current apacity |
| mm2 | mm | mm | mm | mm | km/kg | Ω/km | in ground(A) | in air(A) |
| 25 | 6 | 4.5 | 2.4 | 46.4 | 2361 | 0.727 | 125 | 120 |
| 35 | 7 | 4.5 | 2.5 | 48.8 | 2772 | 0.524 | 155 | 140 |
| 50 | 8.3 | 4.5 | 2.6 | 51.8 | 3357 | 0.387 | 180 | 165 |
| 70 | 9.8 | 4.5 | 2.7 | 55.6 | 4131 | 0.268 | 220 | 210 |
| 95 | 11.5 | 4.5 | 2.8 | 59.3 | 5036 | 0.193 | 265 | 255 |
| 120 | 12.9 | 4.5 | 2.9 | 62.5 | 5919 | 0.153 | 300 | 290 |
| 150 | 14.5 | 4.5 | 3 | 66.4 | 6998 | 0.124 | 340 | 330 |
| 185 | 16 | 4.5 | 3.2 | 70 | 8189 | 0.0991 | 380 | 375 |
| 240 | 18.3 | 4.5 | 3.3 | 75.1 | 10043 | 0.0754 | 435 | 435 |
| 300 | 20.5 | 4.5 | 3.5 | 80.1 | 12013 | 0.0601 | 485 | 495 |
Application Suitable for fixed installation in power distribution networks with rated voltage of 10kV or less,or in industrial installations.
