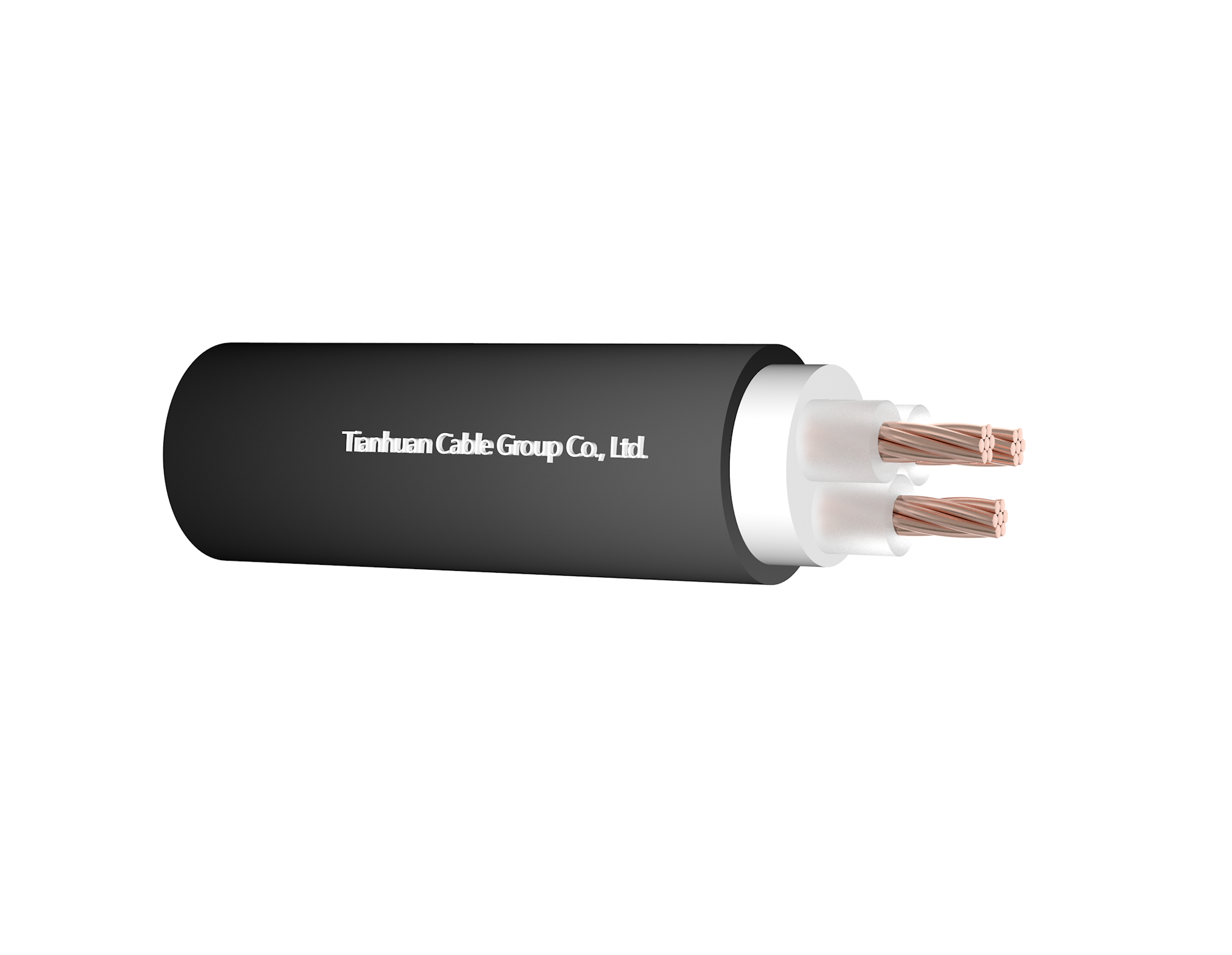

MYJV 0.6/1 kV Coal Mine Used XLPE Insulated PVC Sheathed Power Cable

Application

Technical Data

Rated voltage:(U₀/U)0.6/1 kV

Temperature classification:The cable conductor is permitted to have a maximum long-term operating temperature not exceeding 90℃.During a short circuit(with the maximum duration not exceeding 5 seconds),the maximum temperature of the cable conductor does not exceed 250℃.When laying the cables on the ground,the ambient temperature during the laying process should not be lower than 0℃.

Min.Bending Radius:3 core:15(D+d)±5%Finished product voltage test:Wire core:3.5kV/5minutes

Installation scenario:Indoor tunnels and cable trenches,etc.,cannot withstand mechanical external forces.

Insulation norminal thickness	Nominal thickness of the steel strip	Nominal thickness of the sheath	Outer diameter of the cable	Cable weight	Maximum direct current redidtance of the conductor at 20℃	25℃ cable current carrying capacity
N×mm2	mm	mm	mm	km/kg	Ω/km	in ground(A)	in air(A)
3×1.5	0.7	1.8	10.4	120.8	12.1	27	20
3×2.5	0.7	1.8	11.3	158.5	7.41	35	26
3×4	0.7	1.8	12.2	210.4	4.61	45	34
3×6	0.7	1.8	13.4	280.4	3.08	57	43
3×10	0.7	1.8	16.1	430.7	1.83	77	60
3×16	0.7	1.8	18.4	623.6	1.15	105	83
3×25	0.9	18	22.1	947.1	0.727	125	105
3×35	0.9	1.8	24.6	1254	0.524	155	125
3×50	1	18	27.9	1660	0.387	185	160
3×70	1.1	1.9	32.8	2353	0.268	225	200
3×95	1.1	2	37.1	3179	0.193	270	245
3×120	1.2	2.1	41.2	3983	0.153	310	285
3×150	1.4	2.3	45.8	4909	0.124	345	325
3×185	1.6	2.4	50.9	6104	0.0991	390	375
3×240	1.7	2.6	57.4	7941	0.0754	450	440
3×300	1.8	2.8	63.4	9890	0.0601	515	505

Application

Suitable for fixed installation in power distribution networks with rated voltage of 10kV or less,or in industrial installations.
