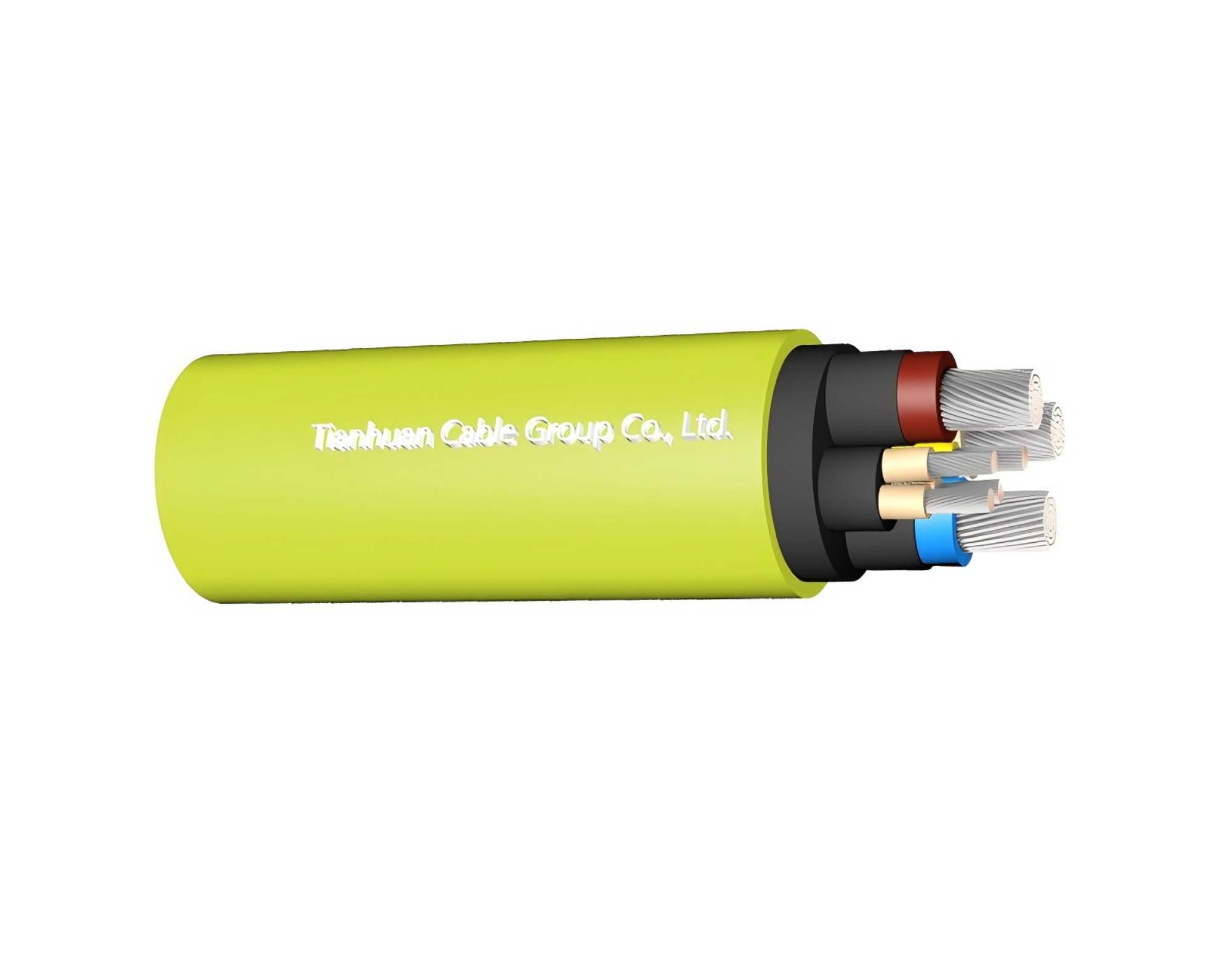

CABLE STRUCTURE:
Conductor:Class 5 tinned copper
Insulation:Power core:Polytetrafluoroethylene rubber(XJ-30)
Insulation shielding:Semiconductive tape
Ground core:Semiconductive rubber(if used as a wrap,it is a semiconductive tape)Control core:Polytetrafluoroethylene rubber(XJ-30)
Filling(optional):Edge sealing rubber strips or glass fiber ropes
Sheath:Chlorinated polyethylene or a mixture of other comparable materials(XH-03)
Technical Data Rated voltage:(U₀/U)0.66/1.14 kV
The maximum system voltage:(Um)1.1 times U
Temperature classification:Maximum operating temperature of the conductor:+75℃
Operating environment temperature:-20℃ to +45℃
Cable laying temperature:Not lower than 0℃(When the ambient temperature is below 0℃,the cable should be preheated.)
Min.Bending Radius:6×cable O.D
Finished product voltage test:Power wire core:3.7kV/5minutesControl wire core:1.5kV/5 minutes Installation method:The laying of underground cables in coal mines is divided into methods such as in level tunnels or those below 45℃,in chambers,and in vertical shafts or in tunnels above 45℃ or in boreholes.
| Nom.Cross section of conductor | Diameter of the power core conductor | Nominal thickness of the insulation for the power core wire | Nominal thickness of the sheath | Outer diameter of the cable | Total weight of the cable |
| N×mm2 | mm | mm | mm | mm | kg/km |
| 3×25+1×6 | 6.7 | 2.0 | 6.0 | 41.1 | 2751.5 |
| 3×35+1×6 | 7.9 | 2.0 | 6.0 | 44.2 | 3299.3 |
| 3×50+1×10 | 9.5 | 2.2 | 7.0 | 51.6 | 4663.0 |
| 3×70+1×16 | 11.2 | 2.2 | 7.0 | 56.3 | 5775.2 |
| 3×95+1×25 | 13.0 | 2.4 | 7.0 | 61.8 | 7132.1 |
| 3×120+1×25 | 14.7 | 2.6 | 7.0 | 66.9 | 8352.5 |
| 3×150+1×35 | 16.4 | 2.6 | 7.0 | 71.7 | 9855.0 |
| Power Core Crosssection of conductor | Current carrying capacity | Maximum direct current resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃ |
| mm2 | A | Ω/km | MΩ ·km |
| 25 | 110 | 0.795 | 300 |
| 35 | 135 | 0.565 | 250 |
| 50 | 170 | 0.393 | 250 |
| 70 | 205 | 0.277 | 200 |
| 95 | 250 | 0.210 | 200 |
| 120 | 295 | 0.164 | 200 |
| 150 | 320 | 0.132 | 180 |
| Control Core Crosssection of conductor | Maximum direct current resistance of the conductor at 20℃ | Minimum insulation resistance at 20℃ |
| mm2 | Ω/km | MΩ ·km |
| 2.5 | 14.7 | 100 |
| 4 | 8.83 | 100 |
| 6 | 5.47 | 100 |
| 10 | 3.60 | 100 |
Application Suitable for power connections of coal mining machines and similar equipment with a rated voltage not exceeding 0.66/1.14kV.
