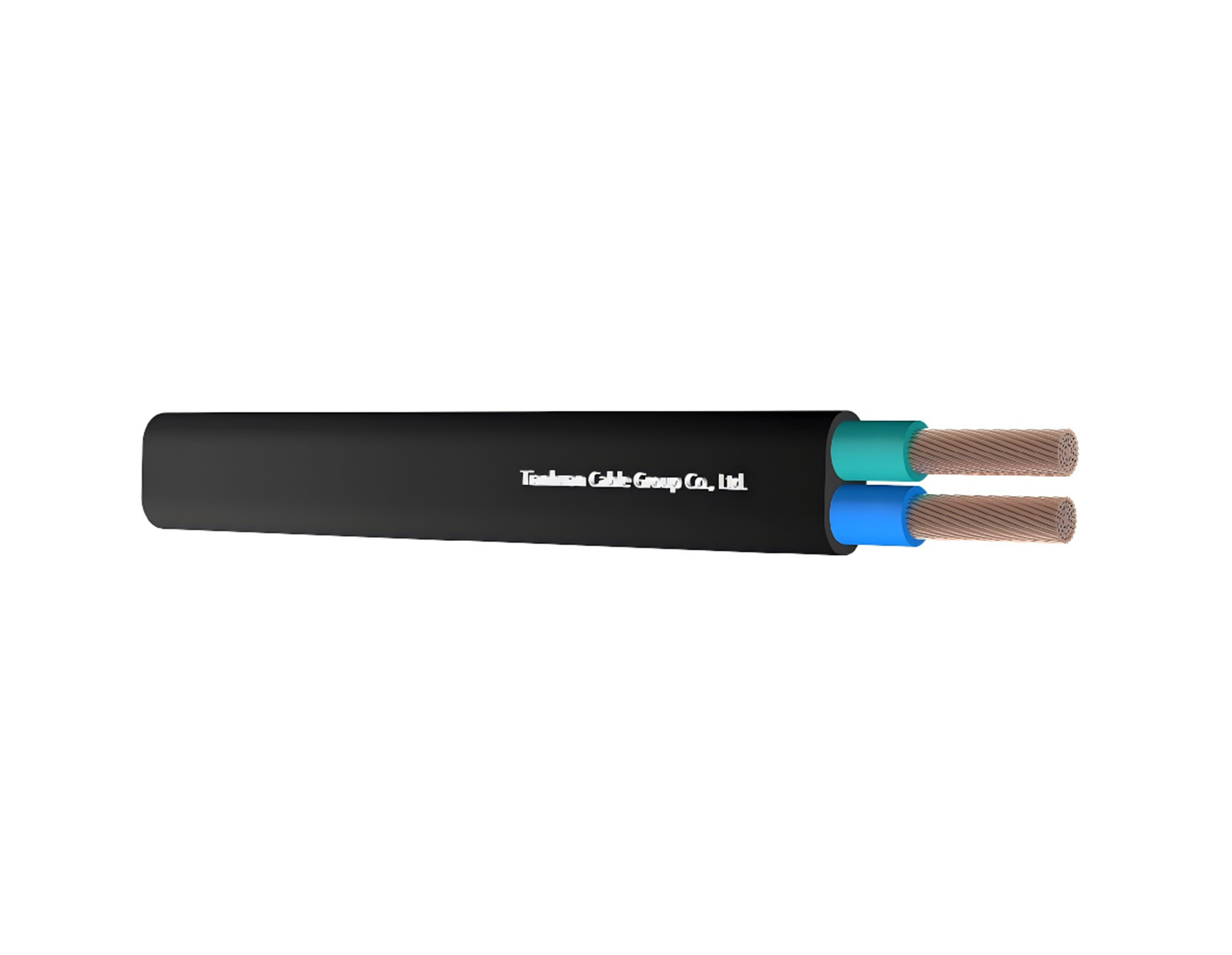

CABLE STRUCTURE:
Conductor: Flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC
Sheath: PVC
Technical Data Rated voltage: 300/500 V
Max.Conductor Temp.in normal use: 70℃
| No.of cores and cross-section | Diameter of conductor | Thickness-nominal insulation | Thickness-nominal sheath | Diameter informative | Weight informative | Minimal radius of bend | Max.effective resistance conductor | Max.permitted pulling force ×1 |
| mm² | mm | mm | mm | mm | kg/km | mm | Ω/km | N |
| 2×0.75 | 1.1 | 0.6 | 0.8 | 3.8x6.0 | 40 | 24 | 26 | 75 |
| 2×1 | 1.3 | 0.6 | 0.8 | 4.0x6.4 | 45 | 26 | 19.5 | 100 |
| 2×1.5 | 1.5 | 0.7 | 0.8 | 4.4x7.2 | 61 | 29 | 13.3 | 150 |
Application These cables are designed for household and general medium-energy consumption electrical appliances, including those used in damp premises(e.g.vacuum cleaners, washing machines, refrigerators), and are also suitable for short-term temporary use outdoors.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
