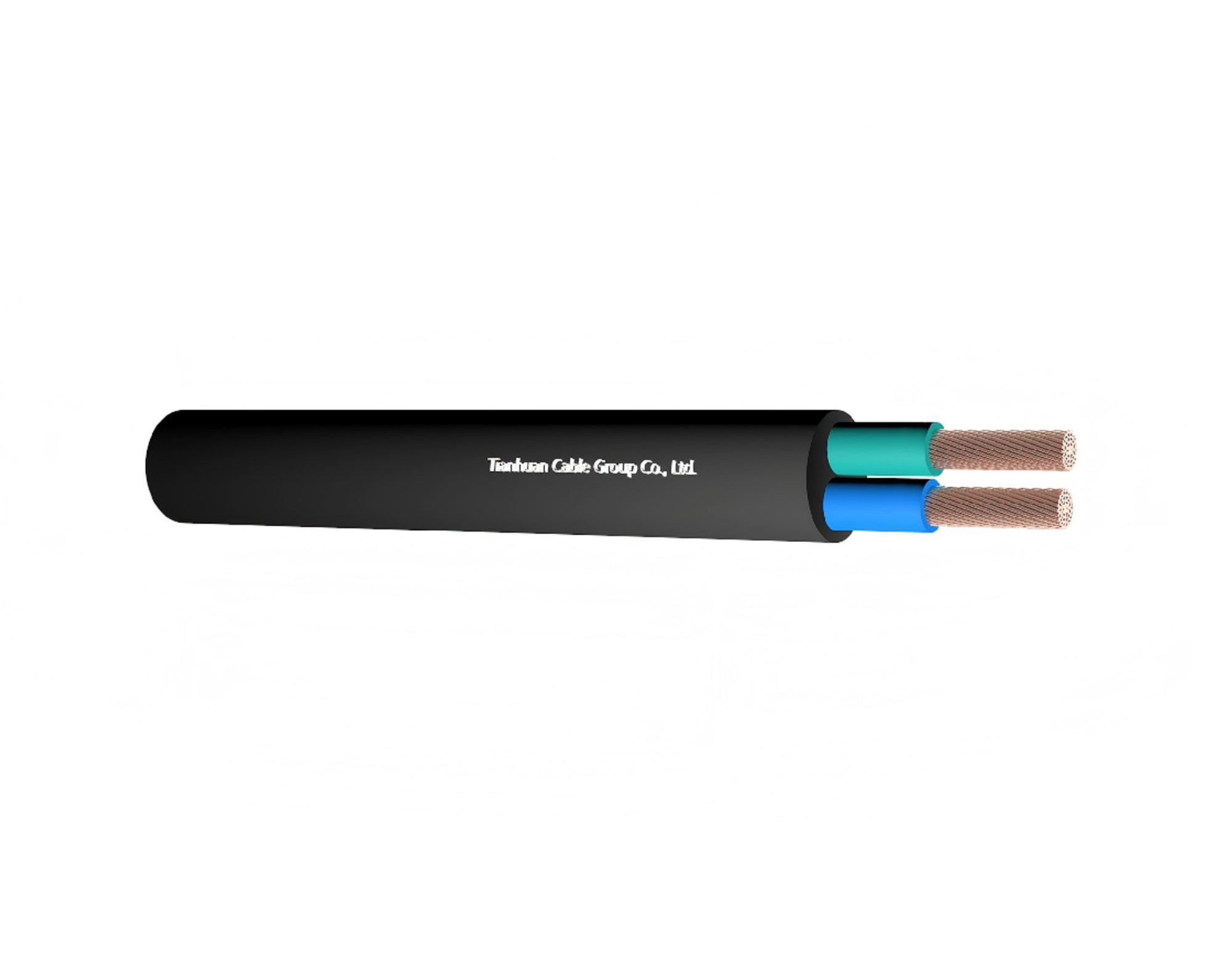

CABLE STRUCTURE:
Conductor: Flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC/D
Sheath: PVC type St5
Technical Data Rated voltage: 300/500 V
Max.Conductor Temp.in normal use: 70℃
Min.Bending Radius: 8×cable O.D
| Nom.Cross- section Area | Insulation Thickness | Sheath Thickness | Approx.0.D | Insulation Min. Resistance at 70℃ | Max.D.C.Resistance of Conductor (20℃) | |
| Lower Limit | Upper Limit | |||||
| mm² | mm | mm | mm | mm | MΩ/km | Ω/km |
| 2×0.75 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 26 |
| 2×1.0 | 0.6 | 0.8 | 5.9 | 7.5 | 0.01 | 19.5 |
| 2×1.5 | 0.7 | 0.8 | 6.8 | 8.6 | 0.01 | 13.3 |
| 2×2.5 | 0.8 | 1 | 8.4 | 10.6 | 0.009 | 7.98 |
| 3×0.75 | 0.6 | 0.8 | 6 | 7.6 | 0.011 | 26 |
| 3×1.0 | 0.6 | 0.8 | 6.3 | 8 | 0.01 | 19.5 |
| 3×1.5 | 0.7 | 0.9 | 7.4 | 9.4 | 0.01 | 13.3 |
| 3×2.5 | 0.8 | 1.1 | 9.2 | 11.4 | 0.009 | 7.98 |
| 4×0.75 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 26 |
| 4×1.0 | 0.6 | 0.9 | 7.1 | 9 | 0.01 | 195 |
| 4×1.5 | 0.7 | 1 | 8.4 | 10.5 | 0.01 | 13.3 |
| 4×2.5 | 0.8 | 1.1 | 10.1 | 12.5 | 0.009 | 7.98 |
| 5×0.75 | 0.6 | 0.8 | 7.4 | 9.3 | 0.011 | 26 |
| 5×1.0 | 0.6 | 0.9 | 7.8 | 9.8 | 0.01 | 195 |
| 5×1.5 | 0.7 | 1.1 | 9.3 | 11.6 | 0.01 | 13.3 |
| 5×2.5 | 0.8 | 1.2 | 11.2 | 13.9 | 0.009 | 7.98 |
Application Ordinary duty PVC cable for use in domestic appliances, kitchens and offices.For use with light portable appliances such as table lamps and office equipment.Generally unsuitable for outdoor use or industrial applications.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
