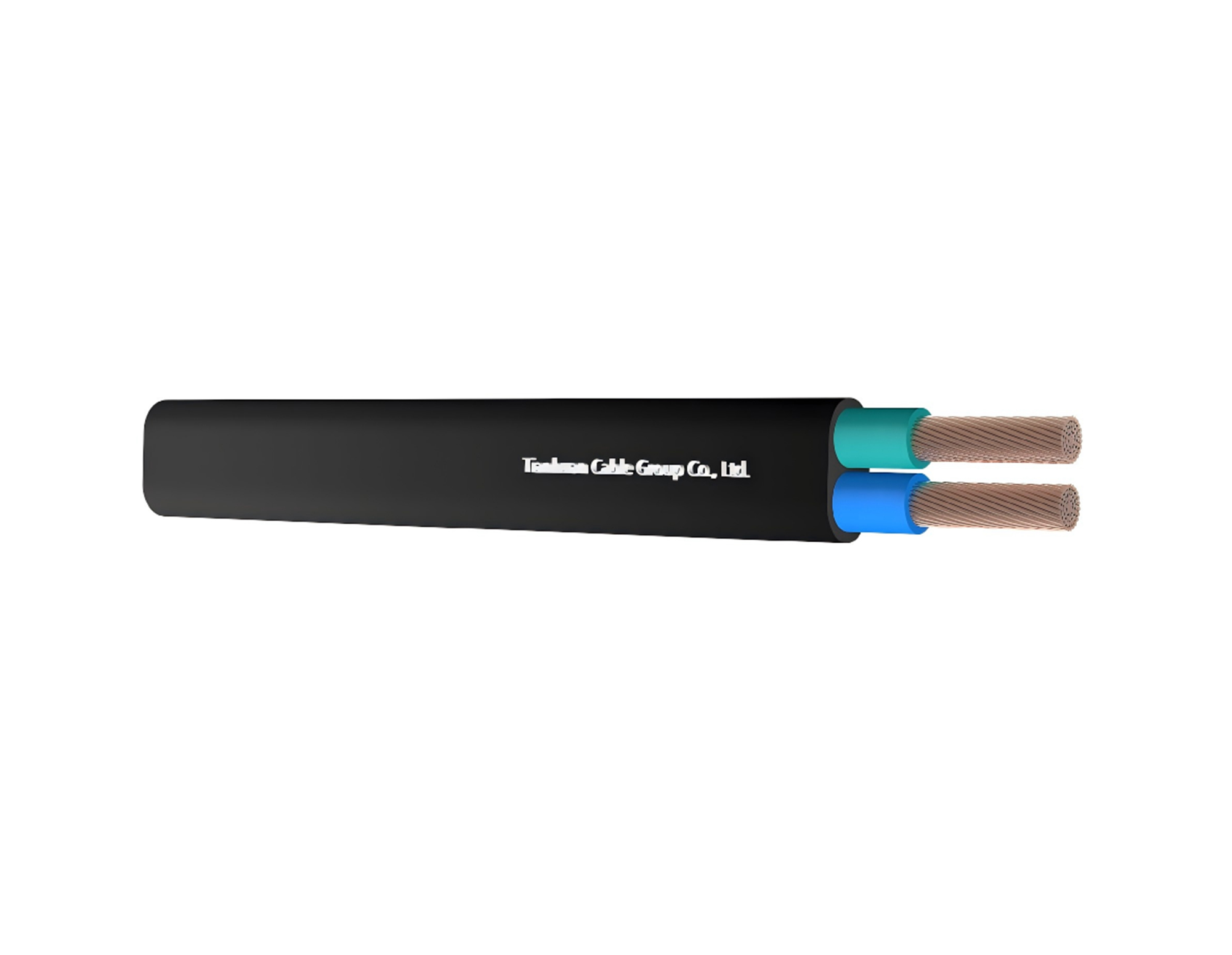

CABLE STRUCTURE:
Conductor: Flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC/D
Sheath: PVC type St5
Technical Data Rated voltage: 300/500 V
Max.Conductor Temp.in normal use: 70℃
Min.Bending Radius: 8x cable O.D
| Nom.Cross- section Area | Maximum Diameter of Wire | Nominal Thickness | Outer Sheath | overall diameter H×W | cable Weight | Conductor Resistance at 20℃ | Max current carrying at 30 ℃ in air |
| mm² | mm | mm | mm | mm | kg/km | Ω/km | A |
| 2×0.5 | 0.21 | 0.5 | 0.6 | 3.35×5 | 30 | 39 | 3 |
| 2×0.75 | 0.21 | 0.5 | 0.6 | 3.5×5.5 | 37 | 26 | 6 |
Application Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
