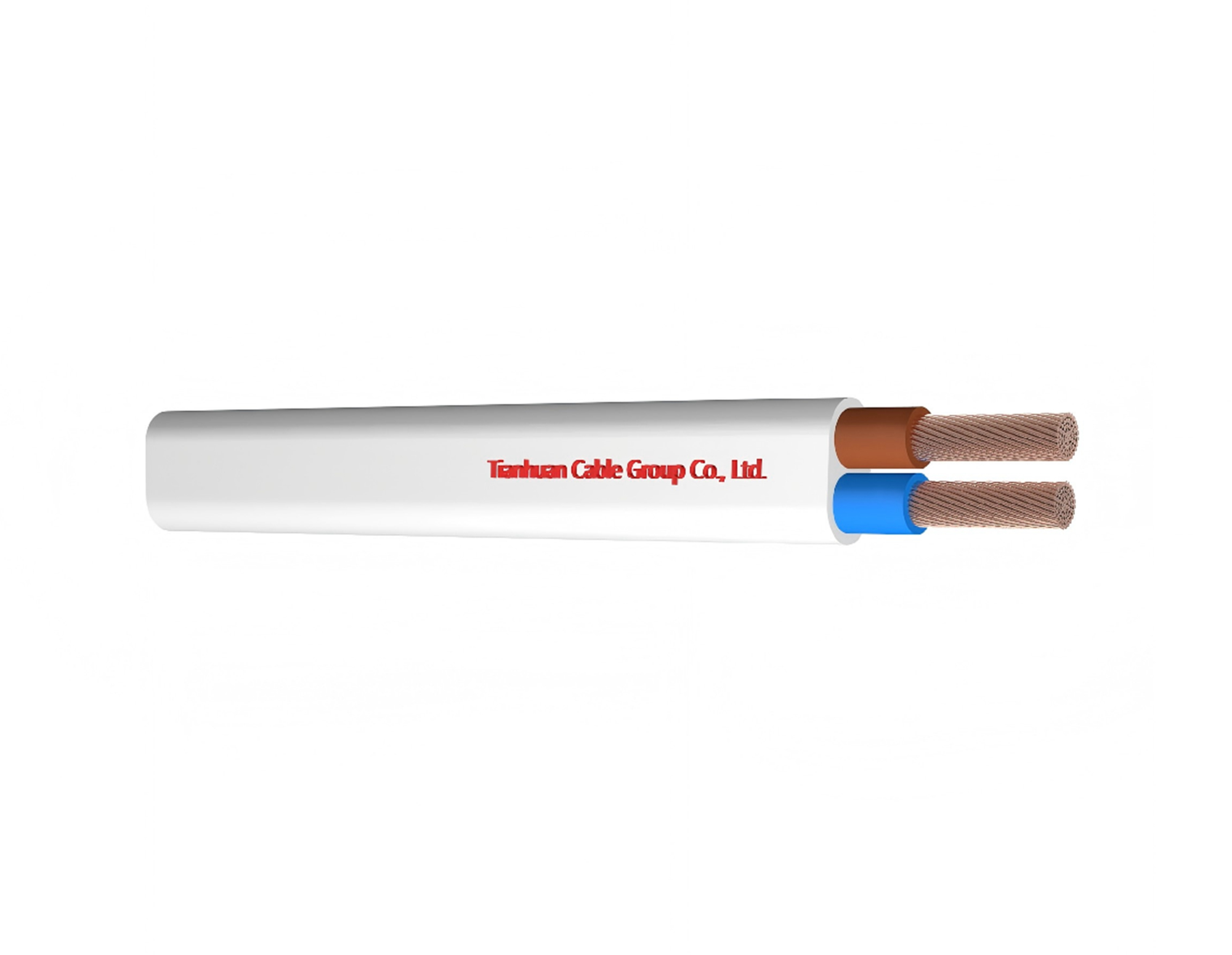

CABLE STRUCTURE:
Conductor: Class 5 flexible copper conductor
Insulation: PVC
Sheath: PVC
Technical Data Voltage Rating(Uo/U): 300/500V
Temperature Rating: -20℃ to+90℃
Minimum Bending Radius: Fixed: 8×overall diameter
| No.of cores | Nominal cross sectional area | Nominal thickness of sheath | Nominal thickness of sheath | Nominal overall diameter | Nominal weight |
| mm2 | mm | mm | mm | kg/km | |
| 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
| 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
| 3 | 1 | 0.6 | 0.8 | 7 | 86 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
| 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
| 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
| 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
| 4 | 1.5 | 0.7 | 1 | 9 | 140 |
| 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
| 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
Application Suitable for kitchens, offices;connecting household appliances(even in wet areas)including washers, hair dryers, fridges(resistant to medium mechanical stress). Also usable for cooking/heating equipment, but the cable must not touch hot parts or be exposed to heat. Fits scenarios requiring higher heat resistance.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
