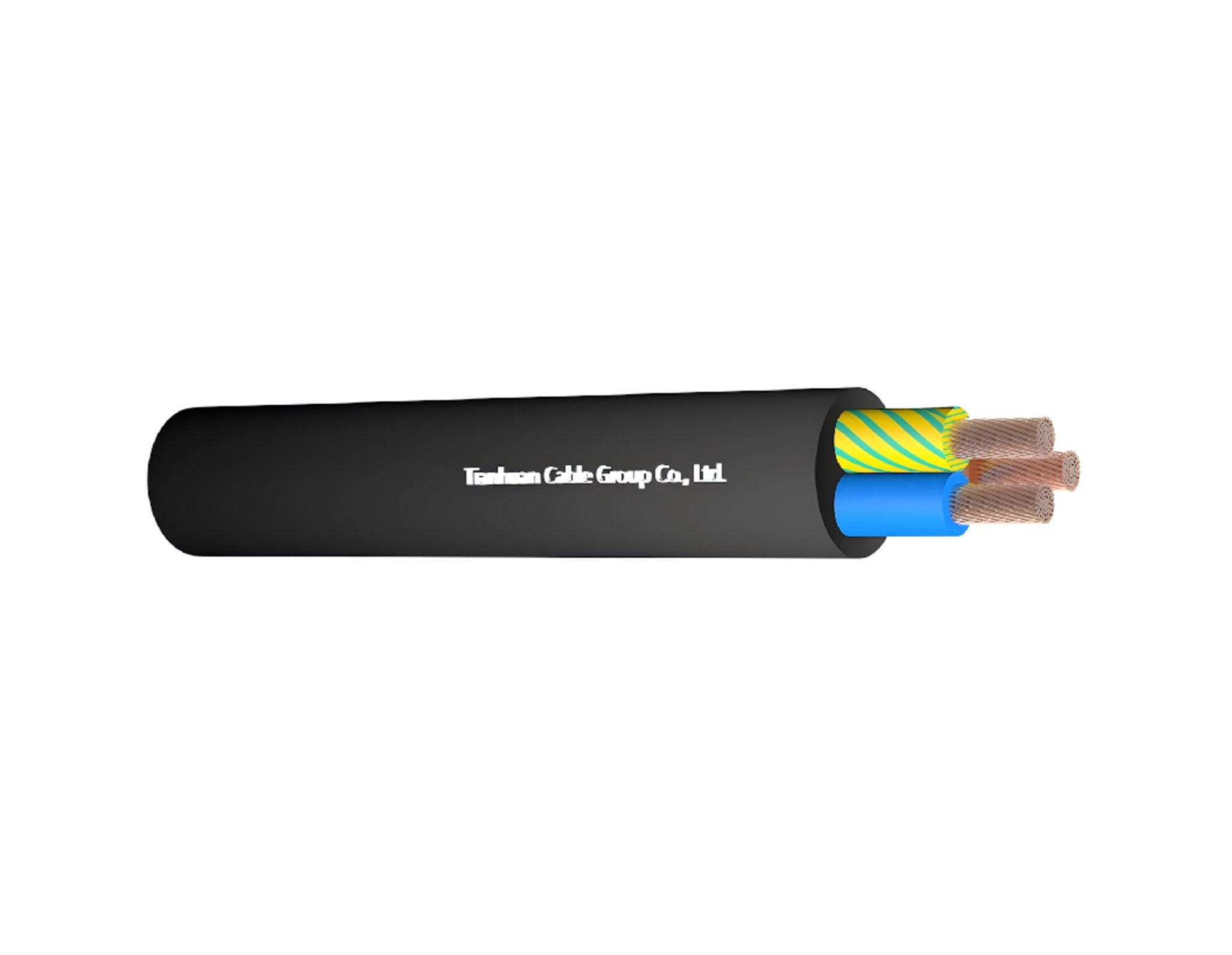

CABLE STRUCTURE:
Conductor: Class 5 flexible copper conductor
Insulation: PVC
Sheath: PVC
Technical Data Voltage Rating(Uo/U): 300/500V
Temperature Rating: 0℃ to+90℃
Minimum Bending Radius: Fixed:6×overall diameter
Flexed: 10×overall diameter
| No. of cores | Nominal cross sectional area | Nominal thickness of sheath | Nominal thickness of sheath | Nominal overall diameter | Nominal weight |
| mm2 | mm | mm | mm | kg/km | |
| 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
| 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
| 3 | 1 | 0.6 | 0.8 | 7 | 86 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
| 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
| 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
| 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
| 4 | 1.5 | 0.7 | 1 | 9 | 140 |
| 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
| 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
Application Suitable for serving as internal wiring or supply cords for electrical apparatus, especially when deployed in high-temperature zones such as lighting applications.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
