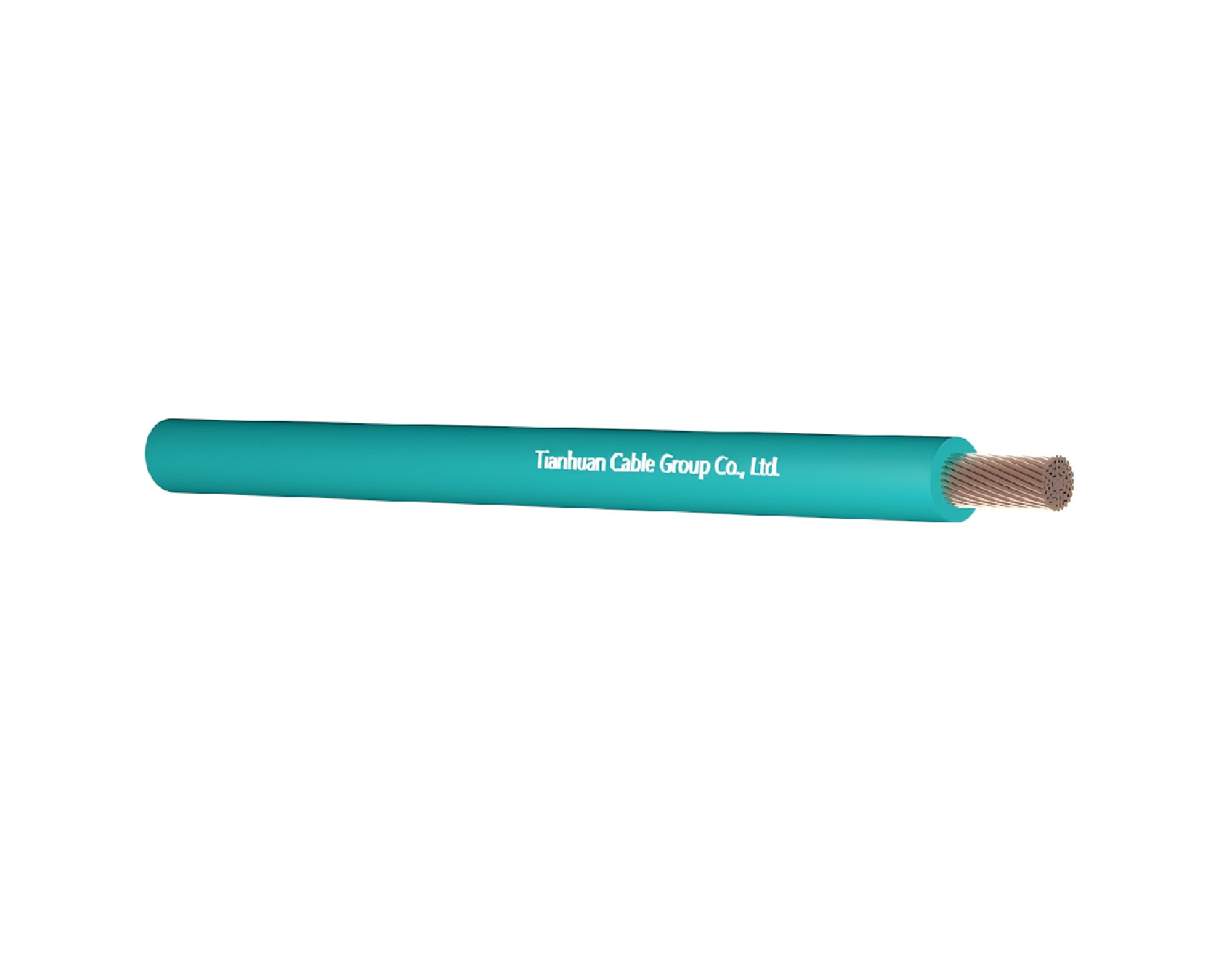

CABLE STRUCTURE:
Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 5
Insulation: PVC/C St5/St10
Technical Data Rated voltage: 450/750V
Max.Conductsr Temp.in normal use: 70℃
Min.Bending Radius: 6x cable O.D
| Nom.Cross- section Area | No.of wire and Diameter | Nominal Thickness Insulation | overall diameter | cable Weight | Min.Insulation DC Resistance at 20℃ | Max current carrying at 30 ℃ in air |
| mm² | mm | mm | mm | kg/km | MΩ/km | A |
| 1.5 | 30/0.25 | 0.7 | 3.2 | 23 | 10 | 24 |
| 2.5 | 50/0.25 | 0.8 | 4 | 36 | 9 | 32 |
| 4 | 56/0.3 | 0.8 | 4.6 | 51 | 8 | 41 |
| 6 | 84/0.3 | 0.8 | 5.2 | 73 | 7 | 53 |
| 10 | 84/0.4 | 1 | 6.5 | 116 | 7 | 72 |
| 16 | 126/0.4 | 1 | 8 | 180 | 5 | 97 |
| 25 | 196/0.4 | 1.2 | 10.1 | 275 | 4 | 128 |
| 35 | 278/0.4 | 1.2 | 11.3 | 385 | 4 | 156 |
| 50 | 398/0.4 | 1.4 | 13.4 | 550 | 4 | 195 |
| 70 | 360/0.5 | 1.4 | 15.4 | 750 | 3 | 243 |
| 95 | 475/0.5 | 1.6 | 17.7 | 1000 | 3 | 287 |
| 120 | 608/0.5 | 1.6 | 20 | 1240 | 3 | 342 |
| 150 | 760/0.5 | 1.8 | 21.9 | 1550 | 3 | 386 |
| 185 | 925/0.5 | 2 | 242 | 1900 | 3 | 441 |
| 240 | 1221/0.5 | 2.2 | 26.6 | 2450 | 3 | 525 |
Application PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
