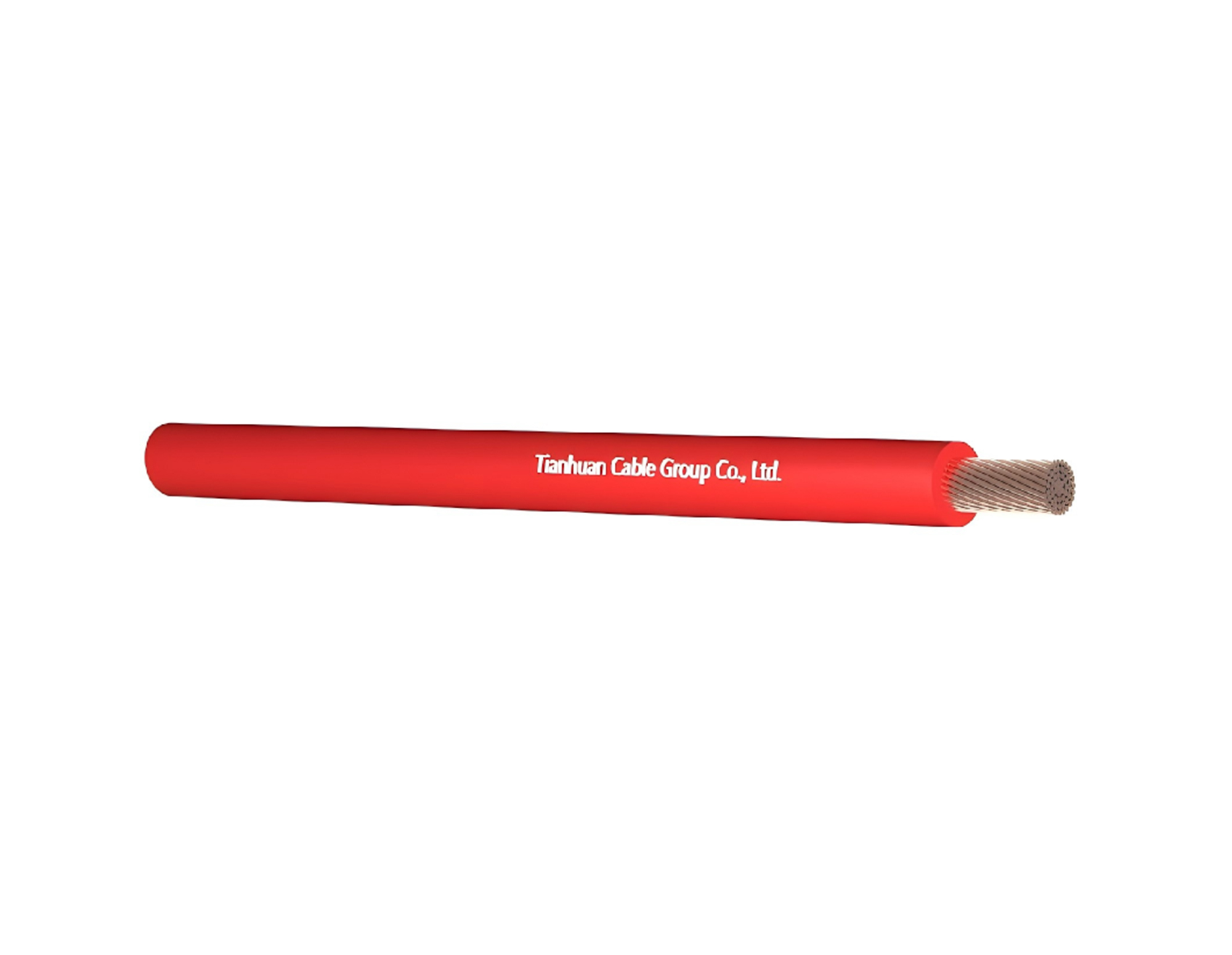

CABLE STRUCTURE:
Conductor: Flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC/E
Technical Data Rated voltage: 300/500 V
Max.Conductor Temp.in normal use: 90℃
Min.Bending Radius: 6×cable O.D
| Nom.Cross- section Area | Insulation Thickness | Mean.O.D. | Insulation Min. Resistance at 90℃ | Conductor Max. Resistance at 20℃ | Approx.Weight | |
| Lower Limit | Upper Limit | |||||
| mm² | mm | mm | mm | MΩ/km | Ω/km | kg/km |
| 0.5 | 0.6 | 2.1 | 2.5 | 0.013 | 39 | 9.9 |
| 0.75 | 0.6 | 2.2 | 2.7 | 0.011 | 26 | 13 |
| 1 | 0.6 | 2.4 | 2.8 | 0.01 | 19.5 | 15.5 |
| 1.5 | 0.7 | 2.8 | 3.4 | 0.009 | 13.3 | 21 |
| 2.5 | 0.8 | 3.4 | 4.1 | 0.009 | 7.98 | 32.5 |
Application Used for the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
