The Type

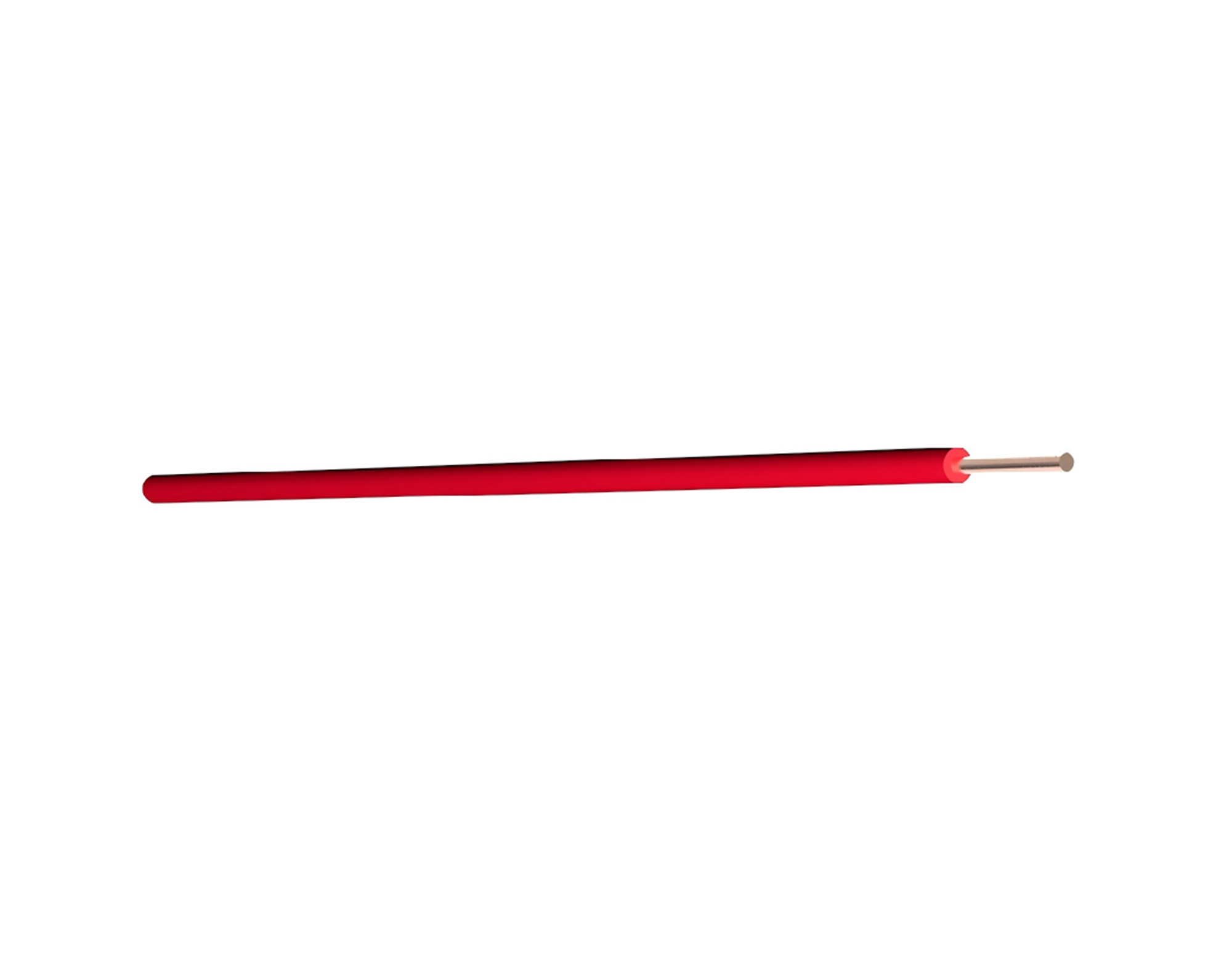

CABLE STRUCTURE:
Conductor: Bare solid copper
Insulation: PVC
Technical Data Voltage Rating(Uo/U): 450/750V
Temperature Rating: -30℃ to+90℃
Minimum Bending Radius: 4x overall diameter
| Type Code | Cross-section | Nominal Outer Diameter | Currents rating,installation in open air,ambient 30℃ | Total weight |
| [mm] | [mm] | [A] | [kg/km] | |
| H07V2-U | 15 | 28 | 24 | 20 |
| H07V2-U | 25 | 34 | 32 | 31 |
| H07V2-U | 4 | 38 | 42 | 46 |
| H07V2-U | 6 | 43 | 54 | 68 |
| H07V2-U | 10 | 54 | 73 | 111 |
Application This cable is equipped with 90℃ PVC insulation and a solid conductor, and is suitable for fixed installation. It can be installed in conduit or duct systems, or used as a connection wire in switch cabinets and similar applications.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
