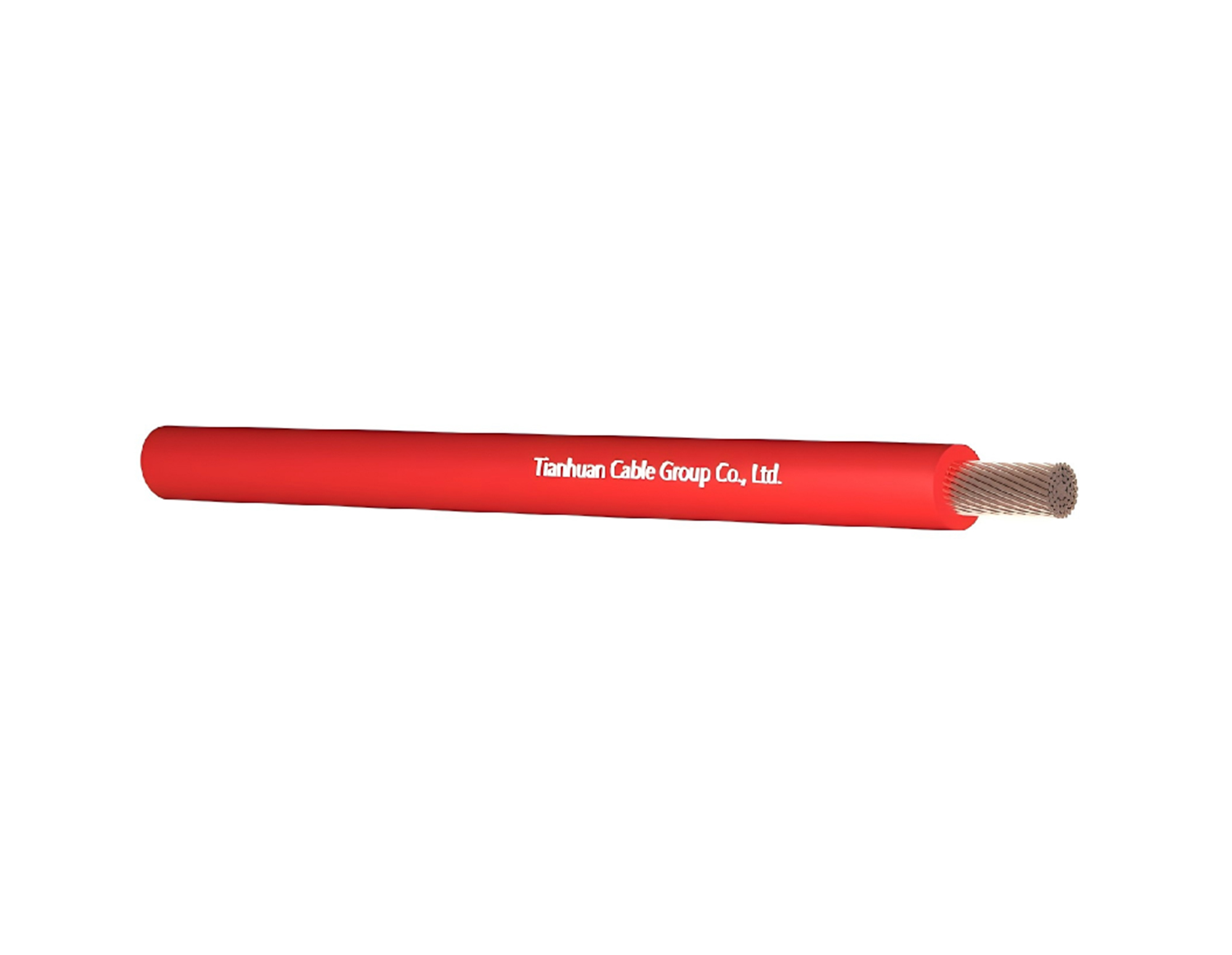

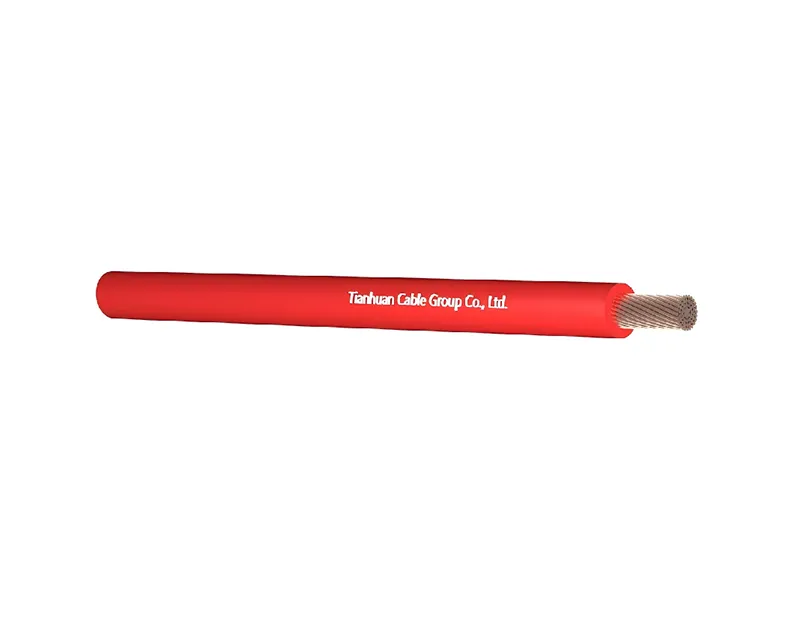

Cu/PVC 450/750V H07V2-K

450/750V for H07V2-K, 90°C

CABLE STRUCTURE:

Conductor: Class 5 flexible copper conductor

Insulation: PVC

Inquire Now + Download +

Technical Data

Application

Get a quote

Technical Data

Voltage Rating(Uo/U): BS 6231:0.6/1kV1.5mm2 and above*:BS EN 505-2-31-H07V2-K:450/750V(*Suitable for temperature of-40℃for fixed installations only)

Temperature Rating: BS 6231:-15℃ to+90℃

Minimum Bending Radius6x overall diameter

Application

This heat resistant, flame retardant cable is engineered for switch control, relay, and instrumentation panels within power switch gear, as well as for internal connections in rectifier equipment, motor starters, and controllers.
