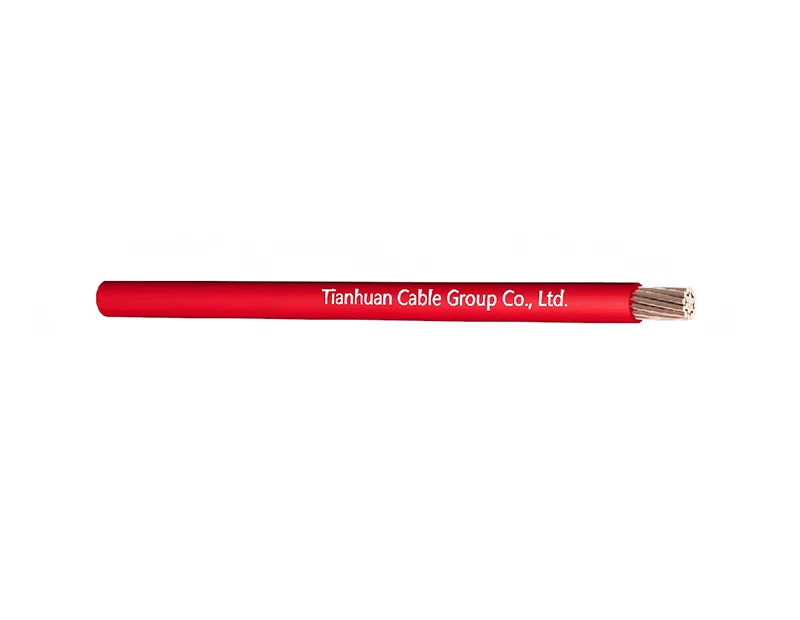

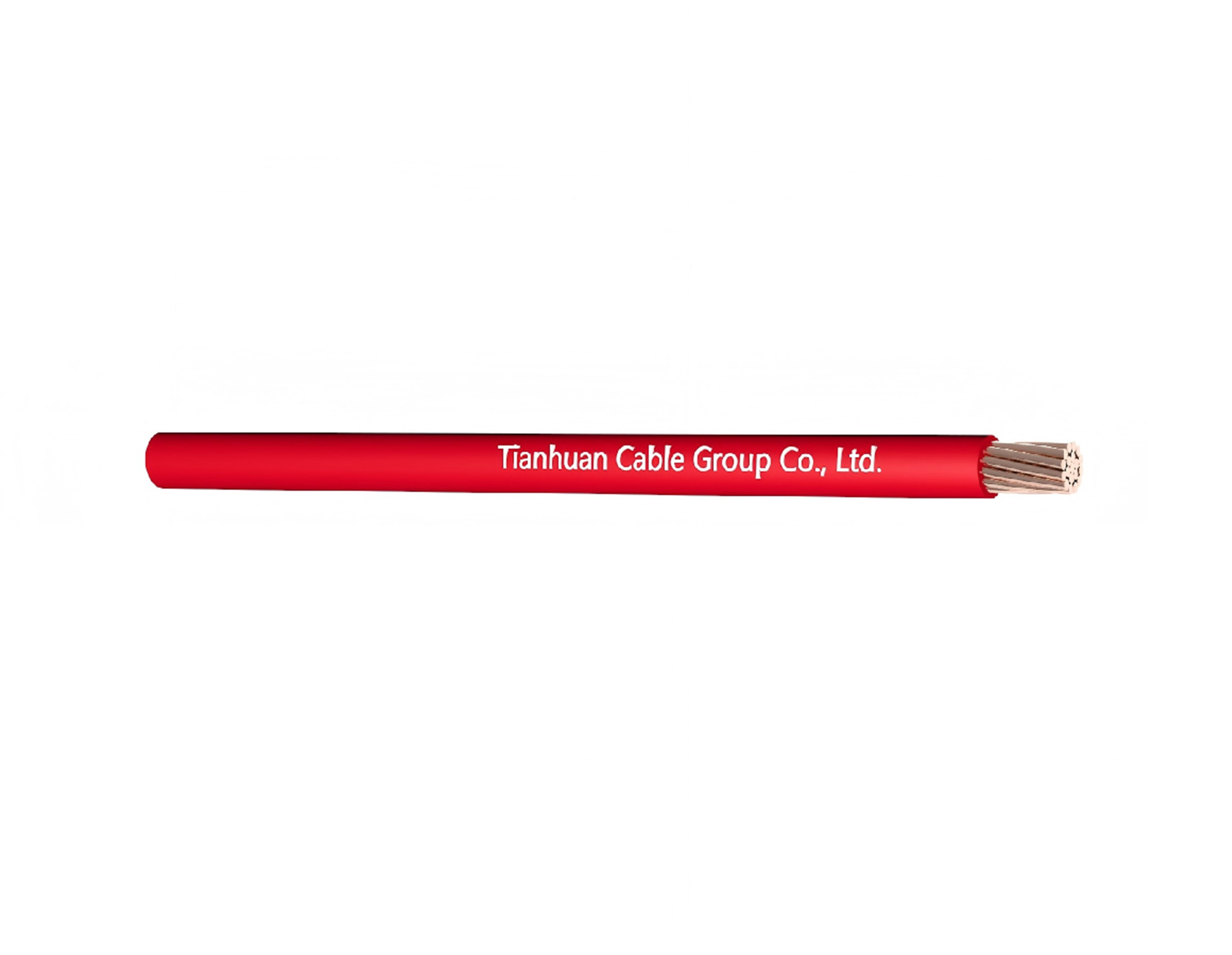

CABLE STRUCTURE:
Conductor: (H07V-U)Plain circular solid copper conductor, conform to IEC 60228 class 1
Conductor: (H07V-R)Plain circular stranded copper conductor, conform to IEC 60228 class 2
Insulation: PVC/C St5/St10
Technical Data Rated voltage: 450/750V
Max.Conductor Temp.in normal use: 70℃
Min.Bending Radius: 4×cable O.D
| Nom.Cross- section Area | Class of Conductor | Insulation Thickness | Mean.O.D. | Insulation Min Resistance at 90℃ | Conductor Max. Resistance at 20℃ | Approx. Weight | |
| Lower Limit | Upper Limit | ||||||
| mm² | mm | mm | mm | mm | MΩ/km | Ω/km | kg/km |
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 0.011 | 12.1 | 20.3 |
| 1.5 | 2 | 0.7 | 2.7 | 3.3 | 0.01 | 12.1 | 21.6 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 0.01 | 7.41 | 31.6 |
| 2.5 | 2 | 0.8 | 3.3 | 4 | 0.009 | 7.41 | 34.8 |
| 4 | 1 | 0.8 | 3.6 | 4.4 | 0.0085 | 4.61 | 47.1 |
| 4 | 2 | 0.8 | 3.8 | 4.6 | 0.0077 | 4.61 | 50.3 |
| 6 | 1 | 0.8 | 4.1 | 5 | 0.007 | 3.08 | 68 |
| 6 | 2 | 0.8 | 4.3 | 5.2 | 0.0065 | 3.08 | 71.2 |
| 10 | 1 | 1 | 5.3 | 6.4 | 0.007 | 1.83 | 112 |
| 10 | 2 | 1 | 5.6 | 6.7 | 0.0066 | 1.83 | 119 |
| 16 | 2 | 1 | 6.4 | 7.8 | 0.005 | 1.15 | 179 |
| 25 | 2 | 1.2 | 8.1 | 9.7 | 0.005 | 0.727 | 281 |
| 35 | 2 | 1.2 | 9 | 10.9 | 0.0043 | 0.524 | 381 |
| 50 | 2 | 1.4 | 10.6 | 12.6 | 0.0035 | 0.387 | 521 |
| 70 | 2 | 1.4 | 12.1 | 14.6 | 0.0032 | 0.286 | 734 |
| 95 | 2 | 1.6 | 14.1 | 17.1 | 0.0032 | 0.193 | 962 |
| 120 | 2 | 1.6 | 15.6 | 18.8 | 0.0032 | 0.153 | 1180 |
| 150 | 2 | 1.8 | 17.3 | 20.9 | 0.0032 | 0.124 | 1470 |
| 185 | 2 | 2 | 19.3 | 23.3 | 0.0032 | 0.0991 | 1810 |
| 240 | 2 | 2.2 | 22 | 26.6 | 0.0032 | 0.0754 | 2350 |
| 300 | 2 | 2.4 | 24.5 | 29.6 | 0.003 | 0.0601 | 2930 |
| 400 | 2 | 2.6 | 27 | 33.2 | 0.0028 | 0.047 | 3870 |
Application For building wire installed in conduit in dry location and interwiring in swich board and control panel.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
