The Type

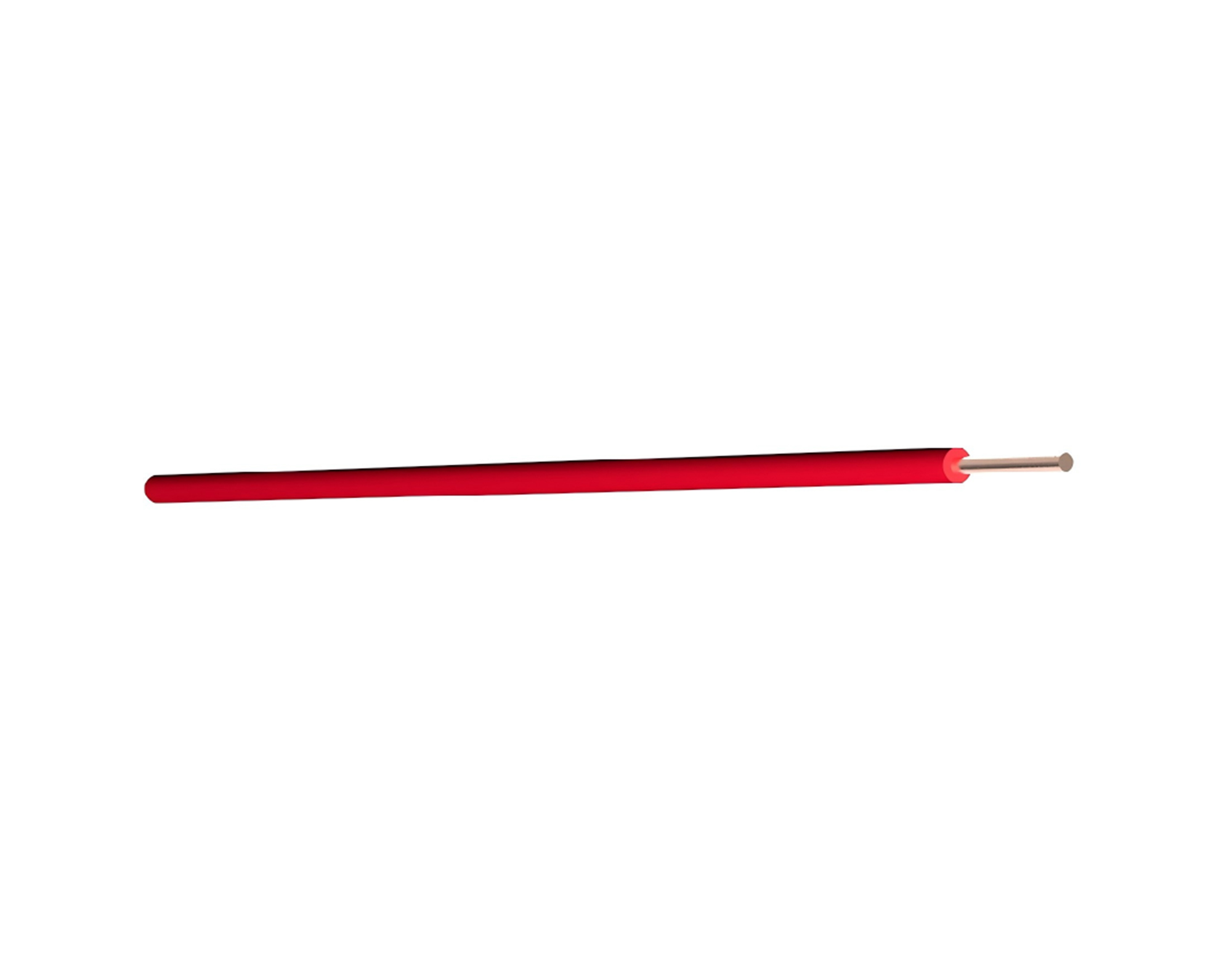

CABLE STRUCTURE:
Conductor: Bare solid copper
Insulation: PVC
Technical Data Voltage Rating(Uo/U): 300/500V
Temperature Rating: -30℃ to+90℃
Minimum Bending Radius: 4x overall diameter
| Type Code | Cross-section | Nominal Outer Diameter | Current rating, installation in open air, ambient 30°C | Total weight |
| [mm] | [mm] | [A] | [kg/km] | |
| H05V2-U | 0,5 | 2,0 | 12 | 9 |
| H05V2-U | 0,75 | 2,2 | 15 | 11 |
| H05V2-U | 1 | 2,3 | 19 | 14 |
| Type Code | Cross-section | Nominal Outer Diameter | Current rating, installation in open air, ambient 30°C | Total weight | |
| [mm] | [mm] | [A] | [kg/km] | ||
| H07V2-U | 1,5 | 2,8 | 24 | 20 | |
| H07V2-U | 2,5 | 3,4 | 32 | 31 | |
| H07V2-U | 4 | 3,8 | 42 | 46 | |
| H07V2-U | 6 | 4,3 | 54 | 68 | |
| H07V2-U | 10 | 5,4 | 73 | 111 | |
Application This cable is equipped with 90℃ PVC insulation and a solid conductor, and is suitable for fixed installation.It can be installed in conduit or duct systems, or used as a connection wire in switch cabinets and similar applications.
