The Type

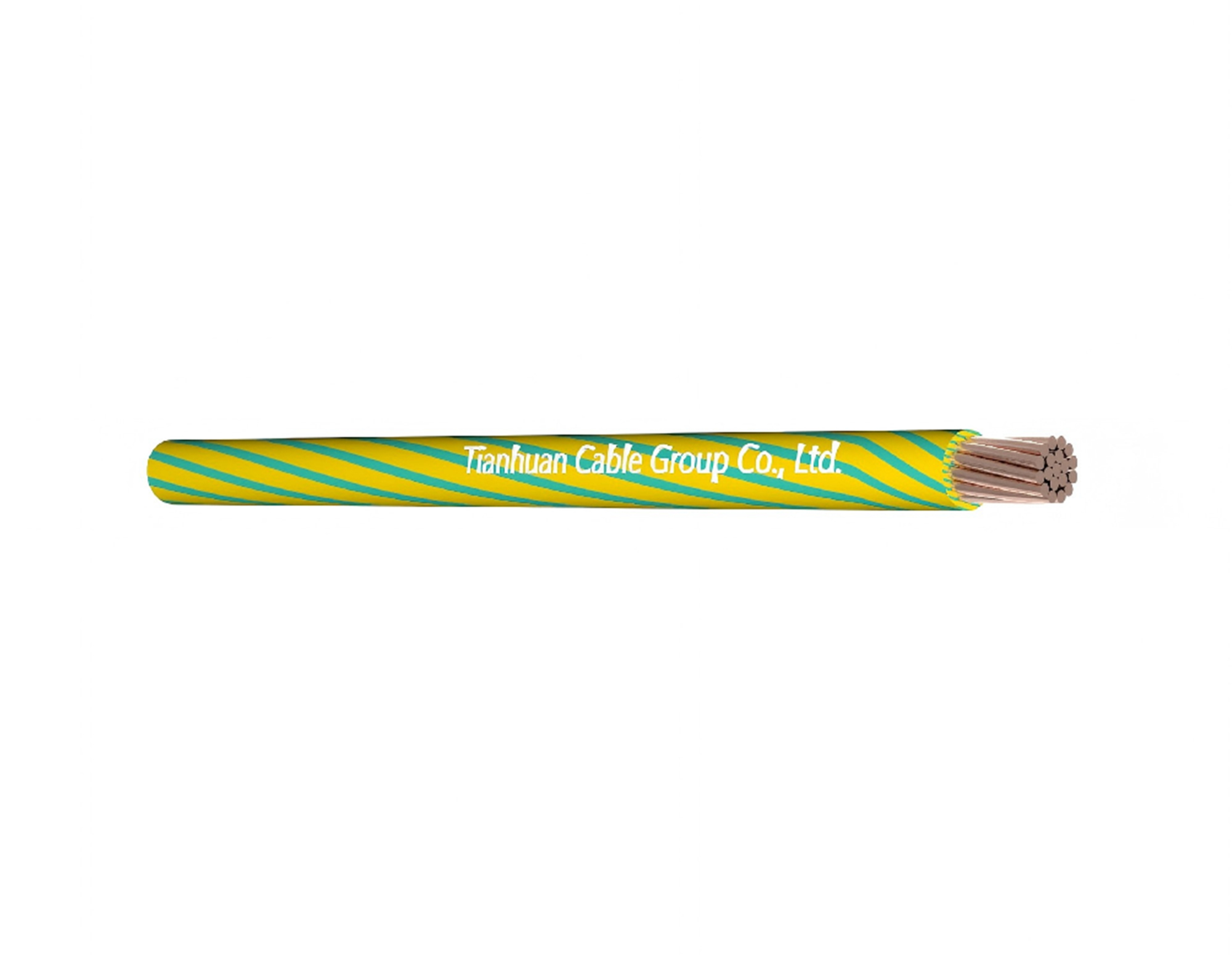

CABLE STRUCTURE:
Conductor: copper conductors class 2 according to IEC60228
Insulation: PVC compound type TI3 according to HD 21.1
Technical Data Voltage Rating(Uo/U): 300/500V
Temperature Rating: -30℃ to+90℃
Minimum Bending Radius: 4x overall diameter
| Type Code | Cross-section | Nominal Outer Diameter | Current rating, installation in open air, ambient 30°C | Total weight | |
| [mm] | [mm] | [A] | [kg/km] | ||
| H05V2-R | 0,5 | 2,2 | 12 | 9 | |
| H05V2-R | 0,75 | 2,3 | 15 | 11 | |
| H05V2-R | 1 | 2,5 | 19 | 14 | |
| Type Code | Cross-section | Nominal Outer Diameter | Current rating, installation in open air, ambient 30°C | Total weight | |
| [mm] | [mm] | [A] | [kg/km] | ||
| H07V2-R | 1,5 | 3,0 | 24 | 21 | |
| H07V2-R | 2,5 | 3,6 | 32 | 32 | |
| H07V2-R | 4 | 4,1 | 42 | 46 | |
| H07V2-R | 6 | 4,7 | 54 | 68 | |
| H07V2-R | 10 | 6,1 | 73 | 109 | |
| H07V2-R | 16 | 7,0 | 98 | 163 | |
| H07V2-R | 25 | 8,6 | 129 | 258 | |
| H07V2-R | 35 | 9,8 | 158 | 343 | |
Application Suitable for fixed installation within lighting networks and power systems, and for wiring in control boards, machines, and instruments with elevated operating temperatures.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
