The Type

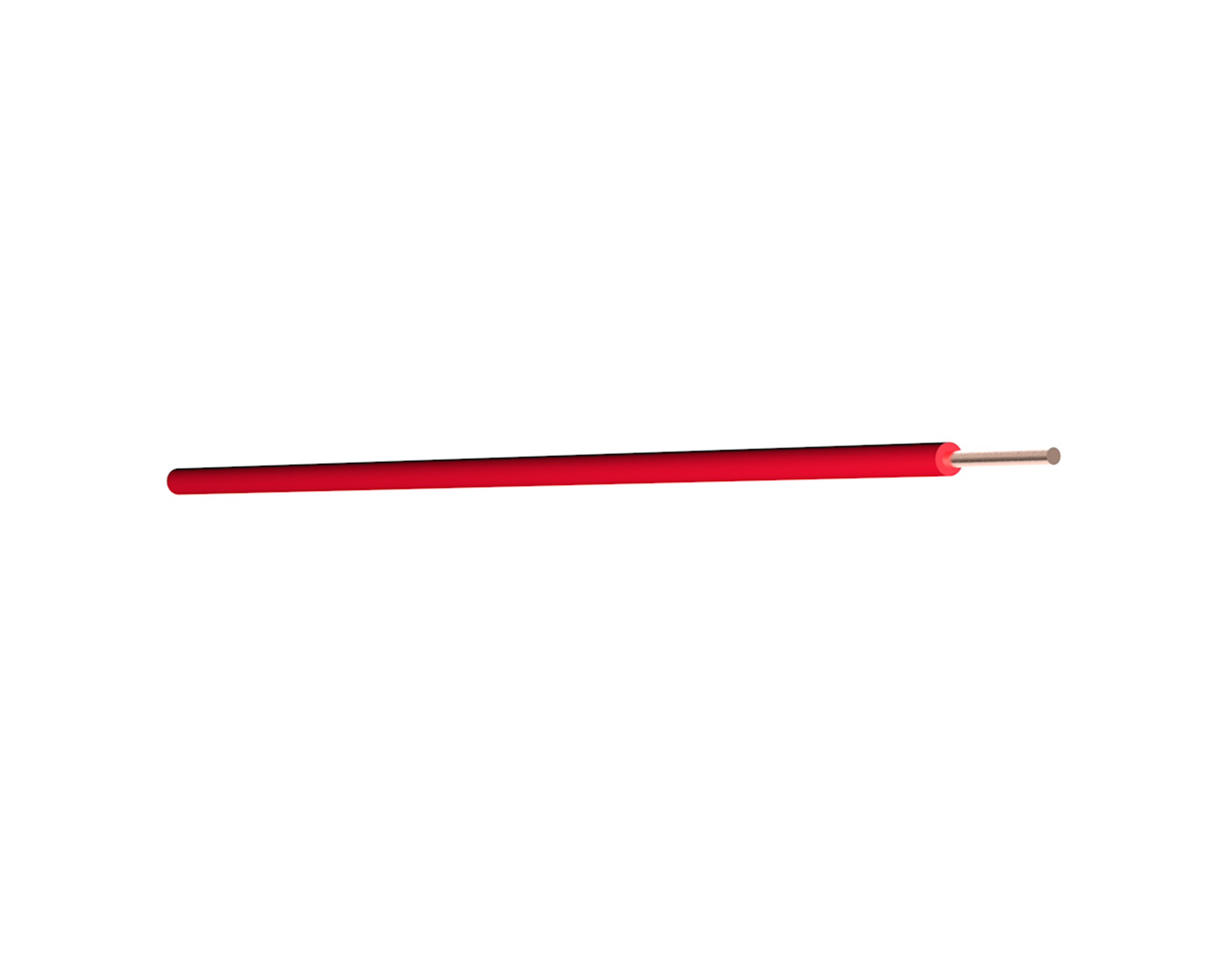

CABLE STRUCTURE:
Conductor: Plain circular solid copper conductor, conform to IEC 60228 class 1
Insulation: PVC/C
Technical Data Rated voltage: 300/500 V
Max.Conductor Temp.in normal use: 70℃
Min.Bending Radius: 4×cable O.D
| Nom.Cross- section Area | Insulation Thickness | Mean.O.D. | Insulation Min. Resistance at 90℃ | Conductor Max. Resistance at 20℃ | Approx.Weight | |
| Lower Limit | Upper Limit | |||||
| mm² | mm | mm | mm | MΩ/km | Ω/km | kg/km |
| 5 | 0.6 | 1.9 | 2.3 | 0.015 | 8.5 | 36 |
| 0.75 | 0.6 | 2.1 | 2.5 | 0.012 | 11.1 | 24.5 |
| 1 | 0.6 | 2.2 | 2.7 | 0.011 | 13.9 | 18.1 |
Application For installation in electrical conduits, on and under plaster, but only for signal and control circuits. Suitable for protected and fixed installation in appliances and luminaires. Used as fixed wiring cable of rated voltage 300/500V.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
