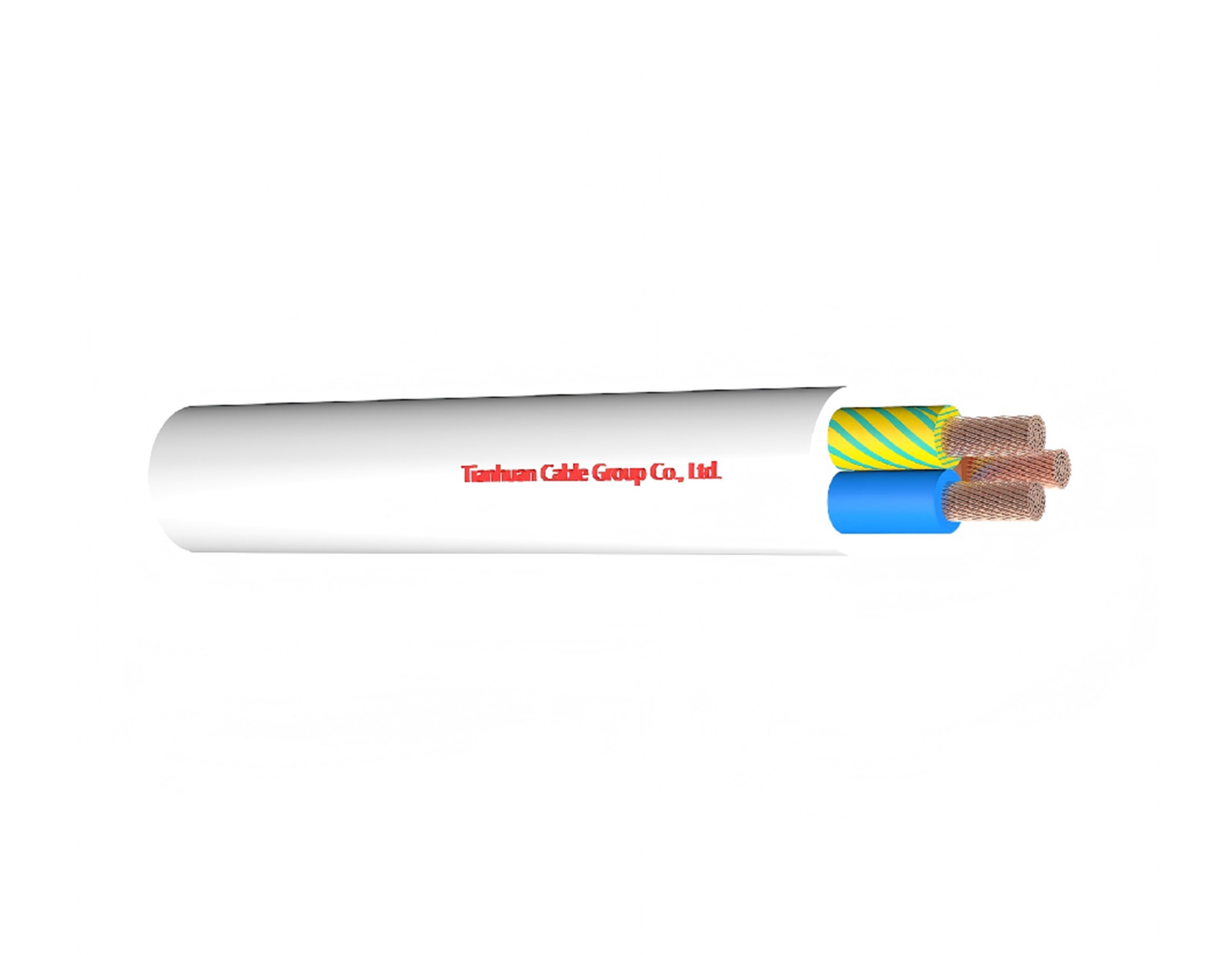

CABLE STRUCTURE:
Conductor: Bare copper fine wire, stranded to IEC 60228 class 5 and HD 383 class 5
Insulation: Thermoplastic Halogen-free Green-yellow grounding(3 conductors and above)
Sheath: Thermoplastic halogen-free
Technical Data Rated voltage: 300/500V for H05Z1Z1-F
Test voltage: 2500V for H05Z1Z1-FZ
Flexing bending radius: 7.5x∅
Fixed bending radius: 4.0x∅
Operating Temperature: -5°C to +70°C
Smoke density acc.to EN 50268/IEC 61034Corrosiveness of combustion gases acc.toEN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc.to EN 50265-2-1, IEC 60332.1
| No.of Coresx Nominal Cross Sectional Area | No.of wires | Wire Dia. | Nom.LSOH Insulation Thickness | Nom.LSOH Sheath Thickness | Overall Diameter | Min.Insulation Resistance at 70℃ | Maximum Resistance of Conductor at 20℃ | |
| Min.OD | Max.OD | Plain Copper Wires | ||||||
| N×mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 2x0.75 | 24 | 0.2 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 26 |
| 2x1 | 32 | 0.2 | 0.6 | 0.8 | 5.9 | 7.5 | 0.01 | 19.5 |
| 2x1.5 | 30 | 0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 0.01 | 13.3 |
| 2x2.5 | 50 | 0.25 | 0.8 | 1 | 8.4 | 10.6 | 0.0095 | 7.98 |
| 2x4 | 56 | 0.3 | 0.8 | 1.1 | 9.7 | 12.1 | 0.0078 | 4.95 |
| 3x0.75 | 24 | 0.2 | 0.6 | 0.8 | 6 | 7.6 | 0.011 | 26 |
| 3x1 | 32 | 0.2 | 0.6 | 0.8 | 6.3 | 8 | 0.01 | 19.5 |
| 3x1.5 | 30 | 0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 0.01 | 13.3 |
| 3x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 0.0095 | 7.98 |
| 3x4 | 56 | 0.3 | 0.8 | 1.2 | 10.5 | 13.1 | 0.0078 | 4.95 |
| 4x0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 26 |
| 4x1 | 32 | 0.2 | 0.6 | 0.9 | 7.1 | 9.0 | 0.01 | 19.5 |
| 4x1.5 | 30 | 0.25 | 0.7 | 1.0 | 8.4 | 10.5 | 0.01 | 13.3 |
| 4x2.5 | 50 | 0.25 | 0.8 | 1.1 | 10.1 | 12.5 | 0.0095 | 7.98 |
| 4x4 | 56 | 0.3 | 0.8 | 1.2 | 11.5 | 14.3 | 0.0078 | 4.95 |
| 5x0.75 | 24 | 0.2 | 0.6 | 0.9 | 7.4 | 9.3 | 0.011 | 26 |
| 5x1 | 32 | 0.2 | 0.6 | 0.9 | 7.8 | 9.8 | 0.01 | 19.5 |
| 5x1.5 | 30 | 0.25 | 0.7 | 1.1 | 9.3 | 11.6 | 0.01 | 13.3 |
| 5x 2.5 | 50 | 0.25 | 0.8 | 1.2 | 11.2 | 13.9 | 0.0095 | 7.98 |
| 5x4 | 56 | 0.3 | 0.8 | 1.4 | 13.0 | 16.1 | 0.0078 | 4.95 |
Application These cables are suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation. Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or agricultural buildings, connection of electrical power tools.
