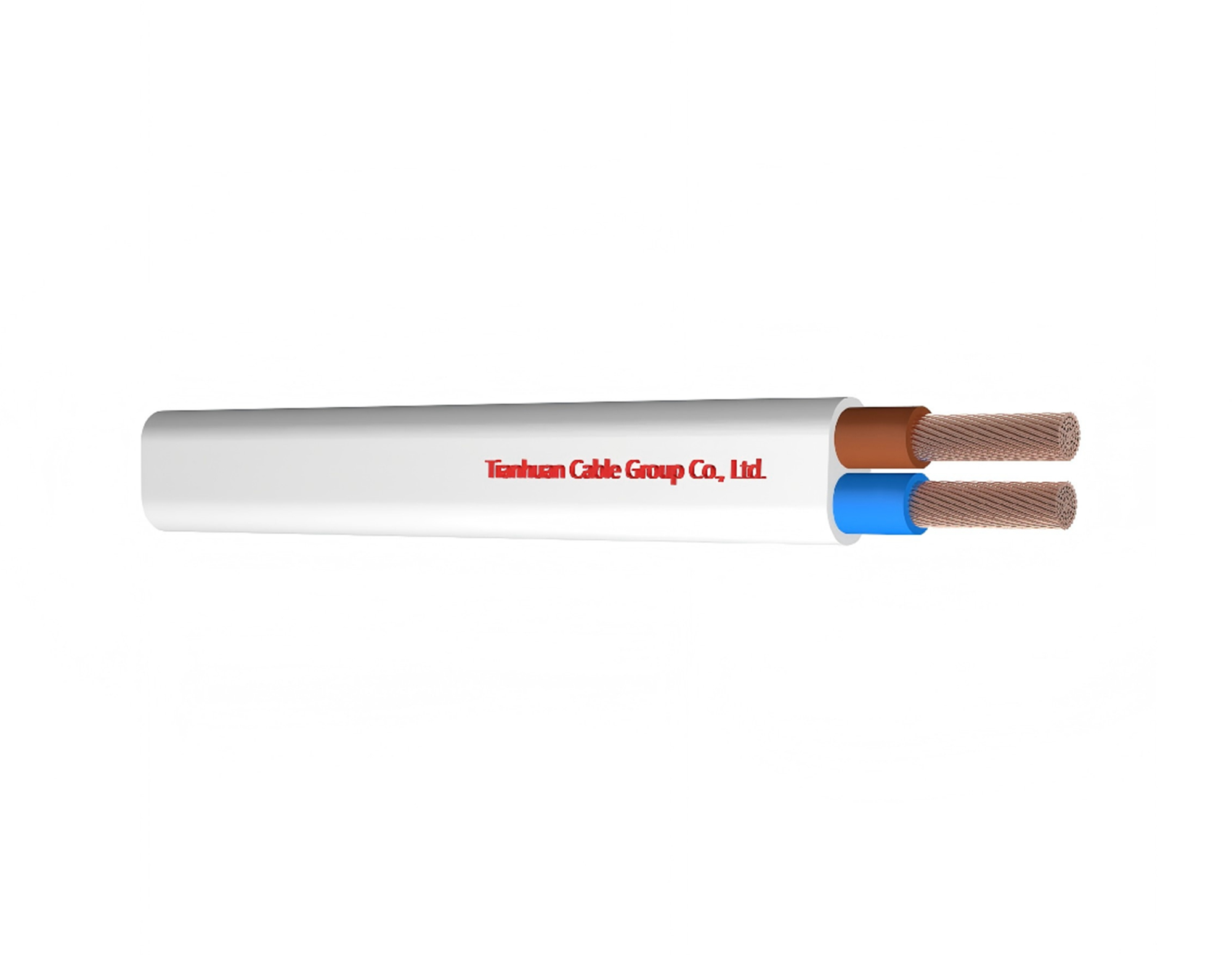

Cu/LSOH/LSOH 300/300V H03Z1Z1H2-F Flat Cable

Flexible power cables, LSOH thermoplastic insulated, under LSOH thermoplastic sheath.

CABLE STRUCTURE:

Conductor: Flexible copper Class 5 CEI EN 60228

Insulation: Thermoplastic LSOH TI6

Sheath: Thermoplastic LSOH TM7

Inquire Now + Download +

Technical Data

Application

Get a quote

Technical Data

Rated voltage: 300/300V

Flexing bending radius: 4x∅

Fixed bending radius: 3x∅

Operating Temperature: +5°C to+90°C

Flame test: flame-retardant acc.to EN 50265-2-1, IEC 60332.1

Application

For locations needing low smoke &corrosive gas emission in case of fire/burning.Used in homes&offices(everyday use, household appliances—including damp areas, e.g., vacuums, washers, spin dryers, fridges).Also for temporary short-term outdoor use.
