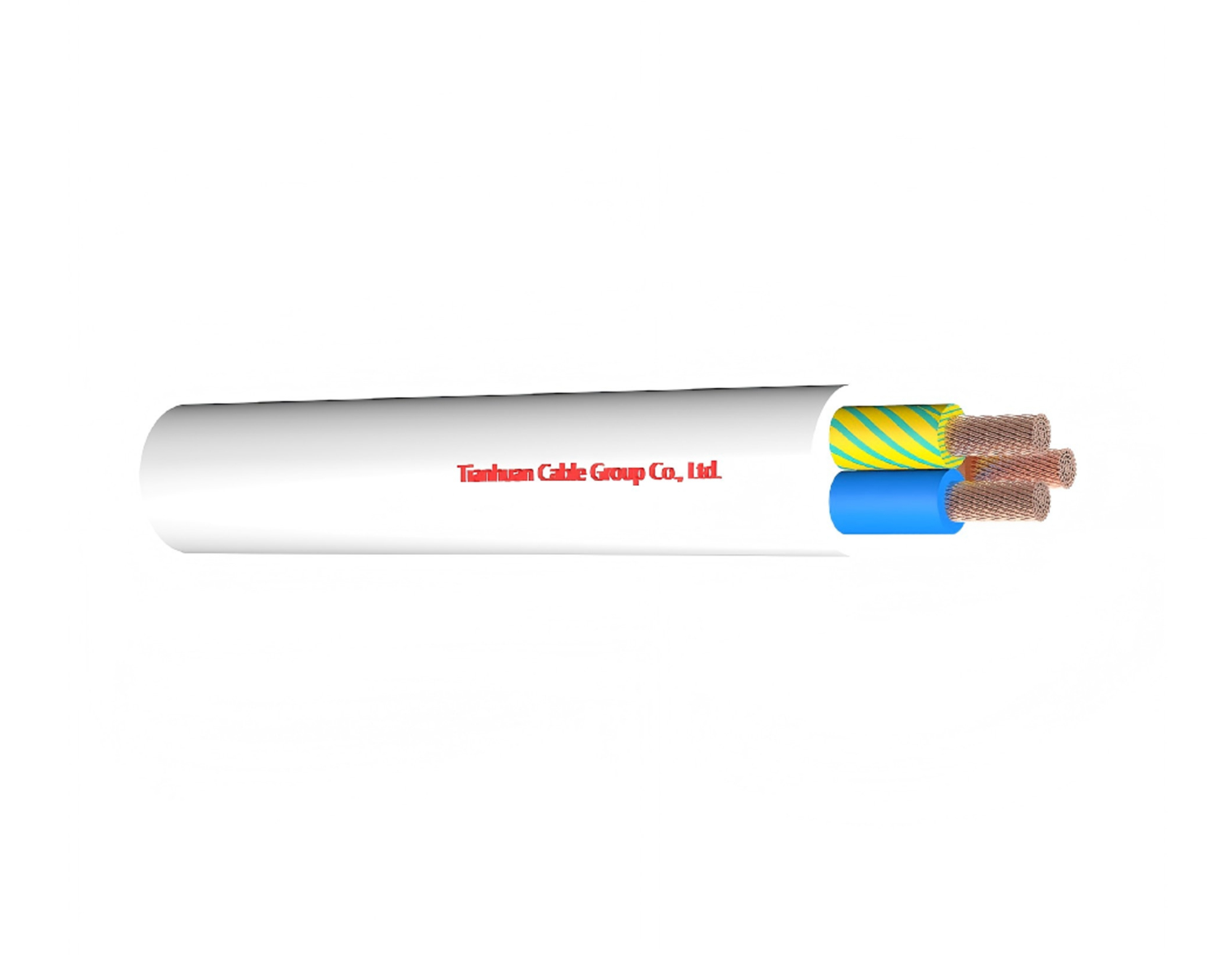

CABLE STRUCTURE:
Conductor: Bare copper fine wire, stranded to IEC 60228 class 5 and HD 383 class 5
Insulation: Thermoplastic Halogen-freeGreen-yellow grounding(3 conductors and above)
Sheath: Thermoplastic halogen-free
Technical Data Rated voltage: 300/300V for HO3Z1Z1-F
Test voltage: 2000V for H03Z1Z1-F
Flexing bending radius: 7.5x∅
Fixed bending radius: 4.0x∅
Operating Temperature: -5°C to +70°C
Smoke density acc.to EN 50268/IEC 61034Corrosiveness of combustion gases acc.toEN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc.to EN 50265-2-1, IEC 60332.1
| No.of Coresx Nominal Cross Sectional Area | No.of wires | Wire Dia. | Nom.LS0H Insulation Thickness | Nom.LS0H Sheath Thickness | Overall Diameter | Min.Insulation Resistance at 70℃ | Maximum Resistance of Conductor at 20℃ | |
| Min.OD | Max.OD | Plain Copper Wires | ||||||
| N × mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 2x0.5 | 16 | 2 | 0.5 | 0.6 | 4.6 | 5.9 | 0.011 | 39 |
| 2×0.75 | 24 | 2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.01 | 26 |
| 3x0.5 | 16 | 2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.011 | 39 |
| 3x0.75 | 24 | 2 | 0.5 | 0.6 | 5.2 | 6.7 | 0.01 | 26 |
| 4x0.5 | 16 | 2 | 0.5 | 0.6 | 5.4 | 6.9 | 0.011 | 39 |
| 4x0.75 | 24 | 2 | 0.5 | 0.6 | 5.7 | 7.3 | 0.01 | 26 |
| H03Z1Z1-F | ||||||||
| No.of Coresx Nominal Cross Sectional Area | No.of wires | Wire Dia. | Nom.LS0H Insulation Thickness | Nom.LS0H Sheath Thickness | Overall Diameter | Min.Insulation Resistance at 70℃ | Maximum Resistance of Conductor at 20℃ | |
| Min.OD | Max.OD | Plain Copper Wires | ||||||
| N × mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 2x0.75 | 24 | 2 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 26 |
| 2x1 | 32 | 2 | 0.6 | 0.8 | 5.9 | 7.5 | 0.01 | 19.5 |
| 2x1.5 | 30 | 0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 0.01 | 13.3 |
| 2x2.5 | 50 | 0.25 | 0.8 | 1 | 8.4 | 10.6 | 0.0095 | 7.98 |
| 2x4 | 56 | 0.3 | 0.8 | 1.1 | 9.7 | 12.1 | 0.0078 | 4.95 |
| 3x0.75 | 24 | 2 | 0.6 | 0.8 | 6 | 7.6 | 0.011 | 26 |
| 3x1 | 32 | 2 | 0.6 | 0.8 | 6.3 | 8 | 0.01 | 19.5 |
| 3x1.5 | 30 | 0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 0.01 | 13.3 |
| 3x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 0.0095 | 7.98 |
| 3x4 | 56 | 0.3 | 0.8 | 1.2 | 10.5 | 13.1 | 0.0078 | 4.95 |
| 4x0.75 | 24 | 2 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 26 |
| 4x1 | 32 | 2 | 0.6 | 0.9 | 7.1 | 9 | 0.01 | 19.5 |
| 4x1.5 | 30 | 0.25 | 0.7 | 1 | 8.4 | 10.5 | 0.01 | 13.3 |
| 4x2.5 | 50 | 0.25 | 0.8 | 1.1 | 10.1 | 12.5 | 0.0095 | 7.98 |
| 4x4 | 56 | 0.3 | 0.8 | 1.2 | 11.5 | 14.3 | 0.0078 | 4.95 |
| 5x0.75 | 24 | 2 | 0.6 | 0.9 | 7.4 | 9.3 | 0.011 | 26 |
| 5x1 | 32 | 2 | 0.6 | 0.9 | 7.8 | 9.8 | 0.01 | 19.5 |
| 5x1.5 | 30 | 0.25 | 0.7 | 1.1 | 9.3 | 11.6 | 0.01 | 13.3 |
| 5x 2.5 | 50 | 0.25 | 0.8 | 12 | 11.2 | 13.9 | 0.0095 | 7.98 |
| 5x4 | 56 | 0.3 | 0.8 | 1.4 | 13 | 16.1 | 0.0078 | 4.95 |
| H05Z1Z1-F | ||||||||
Application These cables are suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation.Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or agricultural buildings, connection of electrical power tools.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
