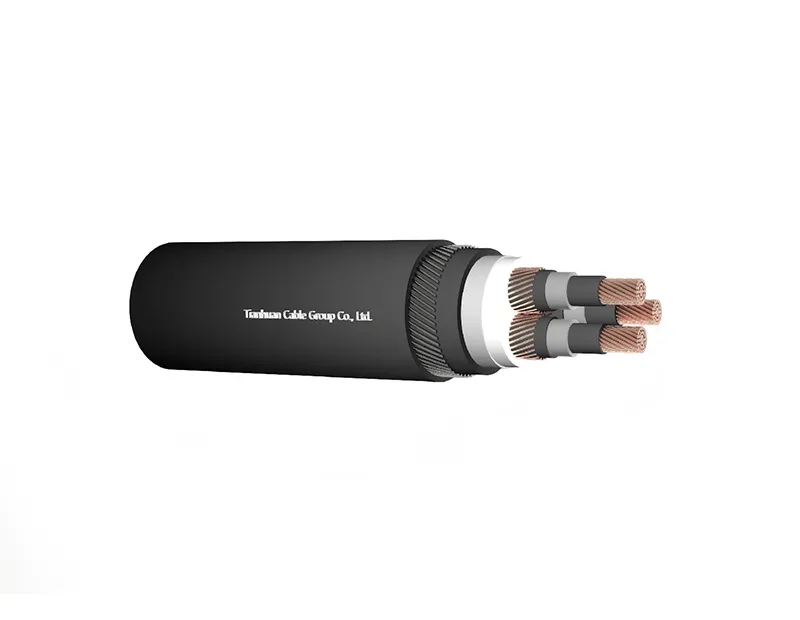

Conductor: Stranded compacted conductor (High-conductivity Copper or Aluminum)
Conductor Screen: Extruded semi-conductive cross-linked compound
Insulation: Premium XLPE (Cross-linked Polyethylene)
Insulation Screen: Extruded hand-strippable semi-conductive cross-linked compound
Metallic Screen: Copper wire screen (Nominal 10kA for 1 second)
Inner Sheath: Black PVC
Armour: Heavy-duty Galvanised Steel Wires (GSW)
Outer Sheath: Durable PVC
Customization Options for Australian Projects:
Available in HDPE / Halogen-Free (LSZH) / Flame-Retardant formulations. Enhanced with Anti-Termite Protection (Nylon sheath, double brass tape, or specialized chemical additive) for underground direct burial applications.
Technical Data | Voltage Rating: | 3.8/6.6 kV (AS/NZS 1429.1 Standard) |
| Temperature Range: | Max Operating Temp: +90°C | Min Installation Temp: 0°C | Min Operating Temp: -25°C |
| Fault Level: | Up to 10kA for 1 sec |
| Bending Radius (Installed): | 12D (PVC) / 15D (HDPE) |
| Bending Radius (During Installation): | 18D (PVC) / 25D (HDPE) |
Physical Characteristics (AL Conductor)
| Nominal Conductor Area | Nominal Insulation Thickness | Diameter Over Insulation | Screen Wires (No. / Dia.) | Steel Wire Diameter | Approx. Overall Diameter | Approx. Weight | Max. Pulling Tension | Min. Bending Radius (Installing) | Min. Bending Radius (Installed) |
|---|---|---|---|---|---|---|---|---|---|
| mm² | mm | mm | No. / mm | mm | mm | kg/km | kN | mm | mm |
| 3×50 | 2.5 | 14.5 | 19 / 0.85 | 2.5 | 52.4 | 4200 | 7.5 | 930 | 610 |
| 3×70 | 2.5 | 16.0 | 27 / 0.85 | 2.5 | 56.0 | 4900 | 11 | 1000 | 670 |
| 3×95 | 2.5 | 17.6 | 36 / 0.85 | 2.5 | 59.9 | 5700 | 14 | 1070 | 720 |
| 3×120 | 2.5 | 19.2 | 40 / 0.85 | 2.5 | 63.6 | 6250 | 18 | 1140 | 750 |
| 3×150 | 2.5 | 20.5 | 40 / 0.85 | 2.5 | 66.8 | 6900 | 23 | 1200 | 800 |
| 3×185 | 2.5 | 22.3 | 40 / 0.85 | 2.5 | 71.7 | 7600 | 25 | 1280 | 840 |
| 3×240 | 2.6 | 24.7 | 40 / 0.85 | 3.15 | 78.4 | 9550 | 25 | 1410 | 940 |
| 3×300 | 2.8 | 27.3 | 40 / 0.85 | 3.15 | 84.6 | 11000 | 25 | 1520 | 1000 |
Electrical Data (AL Conductor)
| Nominal Conductor Area | Max. Conductor DC Resistance (20°C) | Conductor AC Resistance (50Hz, 90°C) | Inductive Reactance (50Hz, 90°C) | Min. Insulation Resistance (20°C) | Current Rating (In Ground, 90°C) | Current Rating (In Air, 90°C) |
|---|---|---|---|---|---|---|
| mm² | Ω/km | Ω/km | Ω/km | MΩ·km | A | A |
| 3×50 | 0.641 | 0.822 | 0.112 | 7600 | 156 | 151 |
| 3×70 | 0.443 | 0.569 | 0.104 | 6700 | 190 | 183 |
| 3×95 | 0.320 | 0.411 | 0.0988 | 5850 | 227 | 226 |
| 3×120 | 0.253 | 0.325 | 0.0962 | 5350 | 257 | 259 |
| 3×150 | 0.206 | 0.265 | 0.0931 | 4800 | 287 | 293 |
| 3×185 | 0.164 | 0.211 | 0.0898 | 4420 | 325 | 338 |
| 3×240 | 0.125 | 0.162 | 0.0872 | 4170 | 371 | 396 |
| 3×300 | 0.100 | 0.130 | 0.0860 | 4000 | 414 | 444 |
Physical Characteristics (Cu Conductor)
| Nominal Conductor Area | Nominal Insulation Thickness | Diameter Over Insulation | Screen Wires (No. / Dia.) | Steel Wire Diameter | Approx. Overall Diameter | Approx. Weight | Max. Pulling Tension | Min. Bending Radius (Installing) | Min. Bending Radius (Installed) |
|---|---|---|---|---|---|---|---|---|---|
| mm² | mm | mm | No. / mm | mm | mm | kg/km | kN | mm | mm |
| 3×35 | 2.5 | 13.2 | 20 / 0.85 | 2.5 | 48.9 | 4500 | 7.4 | 880 | 590 |
| 3×50 | 2.5 | 14.5 | 29 / 0.85 | 2.5 | 51.7 | 5200 | 11 | 940 | 620 |
| 3×70 | 2.5 | 16.0 | 40 / 0.85 | 2.5 | 55.9 | 6350 | 15 | 1010 | 670 |
| 3×95 | 2.5 | 17.6 | 40 / 0.85 | 2.5 | 59.6 | 7400 | 20 | 1070 | 720 |
| 3×120 | 2.5 | 19.2 | 40 / 0.85 | 2.5 | 63.3 | 8600 | 25 | 1140 | 760 |
| 3×150 | 2.5 | 20.5 | 40 / 0.85 | 2.5 | 66.8 | 9700 | 25 | 1200 | 800 |
| 3×185 | 2.5 | 22.3 | 40 / 0.85 | 2.5 | 71.1 | 11000 | 25 | 1280 | 850 |
| 3×240 | 2.6 | 24.7 | 40 / 0.85 | 3.15 | 78.3 | 13900 | 25 | 1410 | 940 |
| 3×300 | 2.8 | 27.3 | 40 / 0.85 | 3.15 | 84.3 | 16600 | 25 | 1520 | 1010 |
Electrical Data (Cu Conductor)
| Nominal Conductor Area | Max. Conductor DC Resistance (20°C) | Conductor AC Resistance (50Hz, 90°C) | Inductive Reactance (50Hz, 90°C) | Min. Insulation Resistance (20°C) | Current Rating (In Ground, 90°C) | Current Rating (In Air, 90°C) |
|---|---|---|---|---|---|---|
| mm² | Ω/km | Ω/km | Ω/km | MΩ·km | A | A |
| 3×35 | 0.524 | 0.668 | 0.118 | 8400 | 171 | 164 |
| 3×50 | 0.387 | 0.494 | 0.112 | 7700 | 200 | 194 |
| 3×70 | 0.268 | 0.342 | 0.104 | 6500 | 245 | 242 |
| 3×95 | 0.193 | 0.247 | 0.0987 | 5800 | 291 | 290 |
| 3×120 | 0.153 | 0.196 | 0.0954 | 5300 | 335 | 338 |
| 3×150 | 0.124 | 0.159 | 0.0927 | 4850 | 368 | 374 |
| 3×185 | 0.0991 | 0.128 | 0.0898 | 4400 | 410 | 425 |
| 3×240 | 0.0754 | 0.099 | 0.0875 | 4120 | 469 | 498 |
| 3×300 | 0.0601 | 0.080 | 0.0860 | 4000 | 517 | 554 |
Application Our distribution network cables serve as the primary power supply solution, engineered for high reliability, safety, and durability across various demanding environments.
Ideal for commercial, industrial, and urban residential power distribution networks.
Suitable for high fault level systems (up to 10kA / 1 sec).
Higher fault current rated versions are fully available upon custom request.
Suitable for direct burial, underground ducts, cable trays, and outdoors.
Flame-retardant (LSZH options available), UV-resistant, and anti-termite/rodent.
Manufactured in strict compliance with IEC, BS, or ASTM international standards.
