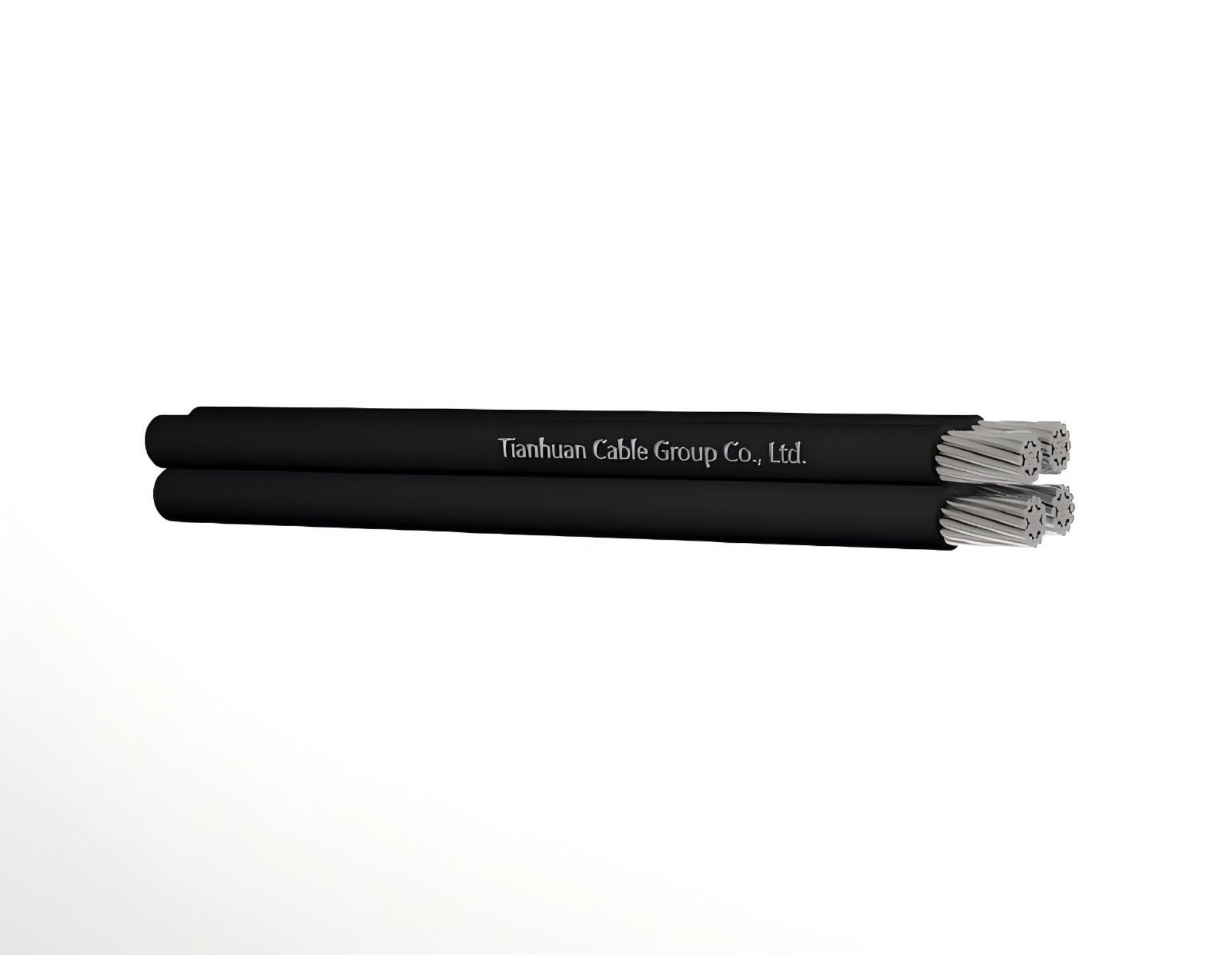

NFA2X-T/NFA2X Aerial Bundled Cables without Street Lighting Conductor

The aerial Bundled cables designed for overhead distribution lines have an insulated neutrald messenger made of AAAC,which the insulated aluminium phase conductor are helically wound over it.Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.

CABLE STRUCTURE:

Conductor:Phase:The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

Neutral or messenger: The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.

Insulation:The phase,neutral conductors shall be extruded with polyethylene(PE)as insulation.

Inquire Now + Download +

Technical Data

Application

Get a quote

Technical Data

Number of cores	Nom.Cross- section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20℃	Current rating at still wind,ambient temperature=30℃ Conductor temperature=75℃
	mm²		mm	mm	Ω/km	A
1	16	6	1	6.8	1.91	61
3	16	6	1.2	8.5	1.2	61
3	25	6	1.2	6.8	0.868	84
3	35	6	1.6	9.5	0.32	104
3	50	6	2	11.2	0.253	129
3	70	12	1	13	0.206	167
3	95	15	1.4	15.1	1.91	209
3	120	15	1.4	16.6	0.641	246
3	150	30	1.6	18.4	0.443	283
3	185	30	1.8	20.6	0.164	332

Messenger conductor
Number of cores	Nom.Cross- section Area	Minimum number of wires	Insulation Thickness	Diameter of insulated core	Conductor Max. Resistance at 20℃	Calculated breaking load
	mm²		mm	mm	Ω/km	kN
6	25	1.2	1.2	8.5	1.312	6.4
6	25	1.2	1.2	8.5	1.312	6.4
6	25	1.2	1.2	8.5	1.312	6.4
6	25	1.2	1.2	13.1	1.312	6.4
6	35	1.2	1.2	8.5	0.943	8.9
6	50	1.4	1.4	9.5	0.693	12.1
12	70	1.4	1.4	11.2	0.469	18
12	70	1.6	1.4	13.1	0.469	18
15	95	1.6	1.6	15.1	0.349	24.2
15	120	1.4	1.6	16.6	0.273	30.8

Completed cable
Approx. overall diameter		Packing length
mm		m/drum
15.3		1000
19		1000
23.2		1000
25.6		1000
30		1000
34.9		1000
40.6		500
44.1		500
49.2		500
54.9		500

Application

NFA2X-T/NFA2X Aerial Bundled Cables without Street Lighting Conductor

The list of products in our website is continually being updated. Please send us an email if you have any questions about products that are not included yet.

Customized Service

At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
