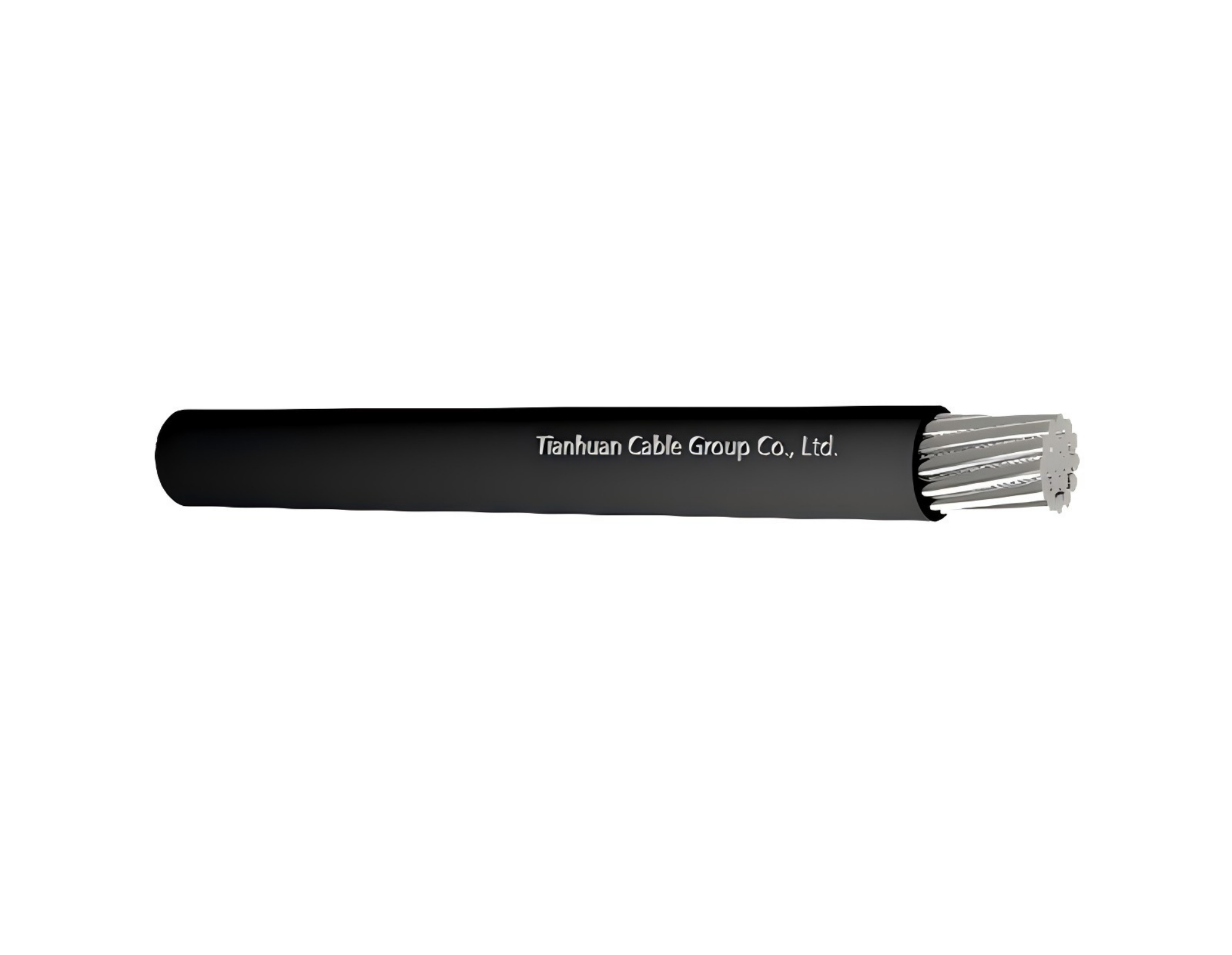

CABLE STRUCTURE:
Conductor:NF2X:Stranded Copper Conductor
NFA2X:Stranded All Aluminium Conductor(AAC)
Insulation:Extrude of XLPE.
Technical Data Nominal voltage:Uo/U=0,6/1 kV
Test voltage:3.5 kV
Temperature range:during installation:-5℃operating temperature:-30℃ up to+90℃at short circuit of max.5 s:250℃
Minimum Bending Radius12×overall diameter
| Nom.Cross- section Area | Nominal Thickness Insulation | Approx. Twisted Diameter | cable Weight | Max. Conductor Resistance at 20℃ | Current Carrying Capacity at 35℃ |
| mm² | mm | mm | km/kg | Ω/km | A |
| NF2X | |||||
| 2×6rm | 1.2 | 13 | 136 | 3.08 | 54 |
| 2×10rm | 1.2 | 14 | 211 | 1.83 | 73 |
| 2×16rm | 1.2 | 16 | 334 | 1.15 | 97 |
| 4×6rm | 1.2 | 157 | 258 | 3.08 | 54 |
| 4×10rm | 1.2 | 17 | 422 | 1.83 | 73 |
| 4×16rm | 1.2 | 19 | 664 | 1.15 | 97 |
| 4×25rm | 1.4 | 24 | 1008 | 0.727 | 133 |
| NFA2X | |||||
| 2×10rm | 1.2 | 14 | 94 | 3.08 | 54 |
| 2×16rm | 1.2 | 16 | 138 | 1.91 | 72 |
| 4×10rm | 1.2 | 17 | 187 | 3.08 | 54 |
| 4×16rm | 1.2 | 19 | 272 | 1.91 | 72 |
| 4×25rm | 1.4 | 24 | 423 | 1200 | 102 |
| 4×35rm | 1.6 | 27 | 564 | 0.868 | 125 |
Application Bundle conductor for overhead distribution network without and with public lighting.(between pole to pole)
