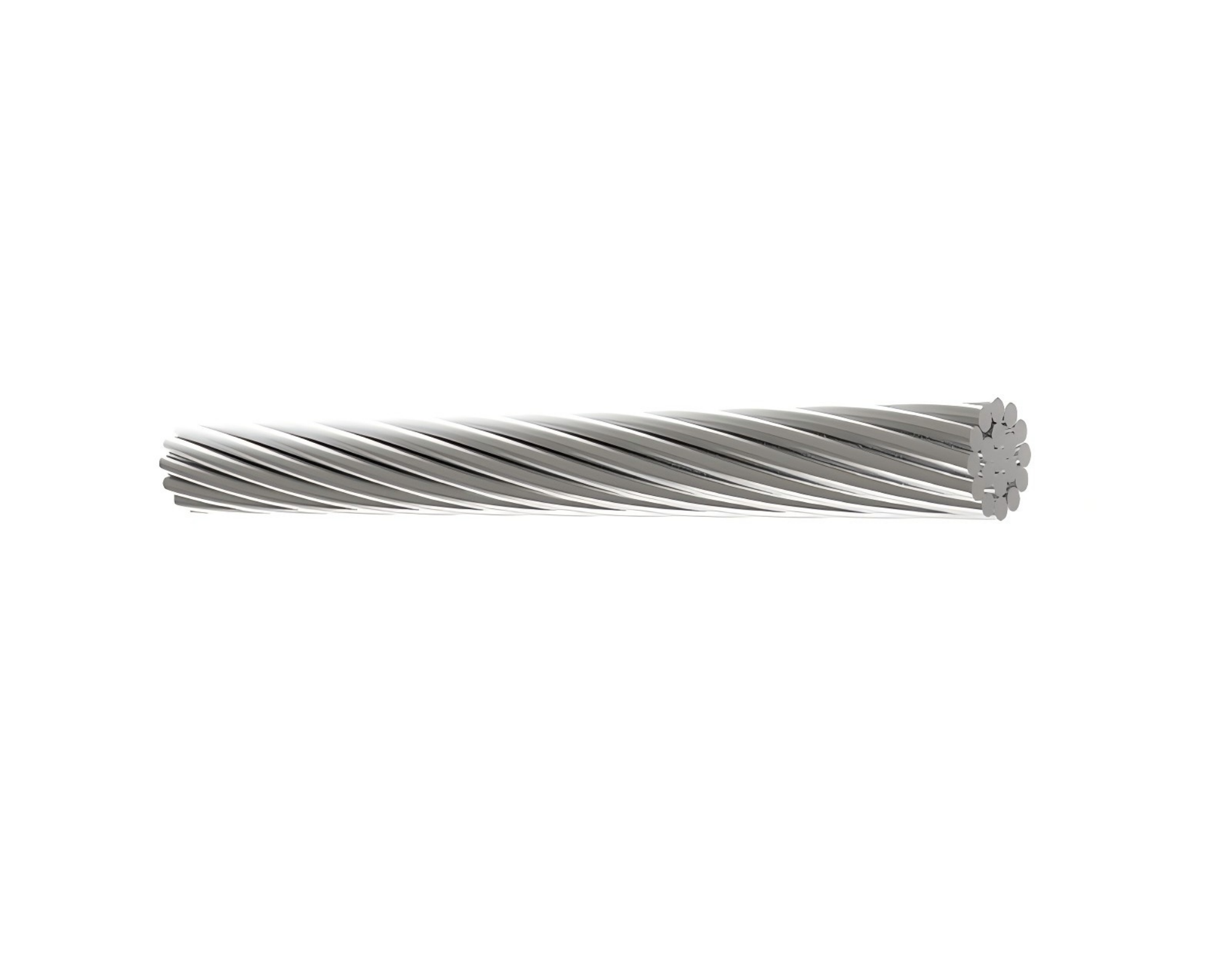

CABLE STRUCTURE:
Conductor:All aluminium
Technical Data | ASTM B231 | |||||||
| Code Name | Total Area | Stranding and Wire | Overall Diameter | Linear Mass | Nominal Breaking Load | Max.D.C. Resistance | |
| AWG or MCM | mm² | mm | mm | kg/km | daN | Ω/km | |
| Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 |
| Rose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 |
| Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 |
| Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 |
| Poppy | 36526 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.539 |
| Aster | 36557 | 67.42 | 7/3.503 | 10.51 | 186 | 1100 | 0.4276 |
| Phlox | 36586 | 85.03 | 7/3.932 | 11.8 | 234 | 1347 | 0.339 |
| Oxlip | 36617 | 107.23 | 7/4.417 | 13.26 | 296 | 1698 | 0.2688 |
| Valerian | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 2062 | 0.2275 |
| Sneezewort | 250 | 126.71 | 7/4.80 | 14.4 | 349 | 2007 | 0.2275 |
| Laurel1 | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 2200 | 0.2133 |
| Daisy | 266.8 | 135.16 | 7/4.96 | 14.9 | 373 | 2141 | 0.2133 |
| Peony | 300 | 152 | 19/3.193 | 15.97 | 419 | 2403 | 0.1896 |
| Tulip | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 2695 | 0.1691 |
| Daffodil | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 2804 | 0.1625 |
| Canna | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 3184 | 0.1431 |
| Goldentuft | 450 | 228 | 19/3.909 | 19.55 | 629 | 3499 | 0.1264 |
| Syringa | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 3849 | 0.1193 |
| Cosmos | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 3708 | 0.1193 |
| Hyacinth | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 4035 | 0.1138 |
| Zinnia | 500 | 253.35 | 19/4.21 | 20.6 | 698 | 3888 | 0.1138 |
| Dahlia | 556.5 | 282 | 19/4.346 | 21.73 | 777 | 4327 | 0.1022 |
| Mistletoe | 556.5 | 282 | 37/3.114 | 21.79 | 777 | 4362 | 0.1022 |
| Meadowsweet | 600 | 304 | 37/3.233 | 22.63 | 838 | 4703 | 0.0948 |
| Orchid | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 4985 | 0.0894 |
| Heuchera | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 5095 | 0.0875 |
| Flag | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 5146 | 0.0813 |
| Verbena | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 5487 | 0.0813 |
| Nasturtium | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 5874 | 0.0795 |
| Violet | 715.5 | 362.85 | 37/3.533 | 24.74 | 1000 | 5609 | 0.0795 |
| Cattail | 750 | 380 | 61/2.817 | 25.35 | 1048 | 5985 | 0.0795 |
| Petunia | 750 | 380 | 37/3.617 | 25.32 | 1048 | 5875 | 0.0795 |
| Lilac | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 6345 | 0.0715 |
| Arbutus | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 6232 | 0.0715 |
| Snapdragon | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 6978 | 0.0632 |
| Cockscomb | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 6848 | 0.0632 |
| Goldenrod | 954 | 483.42 | 61/3.177 | 28.6 | 1333 | 7896 | 0.0596 |
| Magnilia | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 7258 | 0.0596 |
| Camellia | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 7753 | 0.0595 |
| Hawkweed | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 7608 | 0.0596 |
| ASTM B23 | |||||||
| Code Name | Total Area | Stranding and Wire | Overall Diameter | Linear Mass | Nominal Breaking Load | Max.D.C. Resistance | |
| AWG or MCM | mm² | mm | mm | kg/km | daN | Ω/km | |
| Larkspur | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 8012 | 0.055 |
| Bluebell | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 7863 | 0.055 |
| Marigold | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 8628 | 0.0511 |
| Hawthorn | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 9245 | 0.0477 |
| Narcissus | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 9861 | 0.0477 |
| Columbine | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 10478 | 0.0421 |
| Carnation | 1431 | 725.1 | 61/3.89 | 35.03 | 1999 | 10768 | 0.0398 |
 EN 51082 | |||||||
| Code Name | Area | No.of wires | Diameter | Mass per unit length | Rated strength | DC Resistance | |
| Wire | Cond. | ||||||
| mm² | mm | mm | kg/km | kN | Ω/km | ||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.2 | 1.2249 |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117 | 7.28 | 0.6678 |
| Ant | 52.8 | 7 | 3.1 | 9.3 | 144.4 | 8.72 | 0.5409 |
| Fly | 63.6 | 7 | 3.4 | 10.2 | 173.7 | 10.49 | 0.4497 |
| Bluebottle | 73.6 | 7 | 3.66 | 11 | 201.3 | 11.78 | 0.388 |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.34 |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.3 | 0.2989 |
| Wasp | 106 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 |
| Bee | 132 | 7 | 4.9 | 14.7 | 360.8 | 21.12 | 0.2165 |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 5860 | 34.12 | 0.1348 |
| Spider | 237.6 | 19 | 3.99 | 20 | 652.9 | 38.01 | 0.121 |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 |
| Moth | 373.1 | 19 | 5 | 25 | 1025.3 | 59.69 | 0.077 |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 |
| IEC61089 | |||||||
| Code Number | Area | No.of wires | Diameter | Linear Mass | Rated strength | Max.D.C. Resistance at 20℃ | |
| Wire | Cond. | ||||||
| mm² | mm | mm | kg/km | kN | Ω/km | ||
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.4 | 68.4 | 4.5 | 1.1453 |
| 40 | 40 | 7 | 2.7 | 8.09 | 109.4 | 6.8 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274.8 | 17 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.5 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.4 | 439.8 | 26.4 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549.7 | 32 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687.1 | 40 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26 | 1102 | 64 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239.8 | 72 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29 | 1377.6 | 80 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.7 | 1542.9 | 89.6 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738.3 | 100.8 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.6 | 1959.1 | 113.6 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207.4 | 128 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39 | 2483.3 | 144 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759.2 | 160 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.5 | 3093.5 | 179.2 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46 | 3452.6 | 200 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.7 | 3866.9 | 224 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.4 | 4143.1 | 240 | 0.0193 |
Application AAC aluminum stranded wire is usually used in low-voltage transmission lines,medium and low-voltage distribution lines,overhead lines and other occasions.AAC aluminum stranded wire is characterized by light weight,excellent conductivity and low cost,but the stress streng this relatively low,so it is only suitable for occasions with small span and no large tension.
