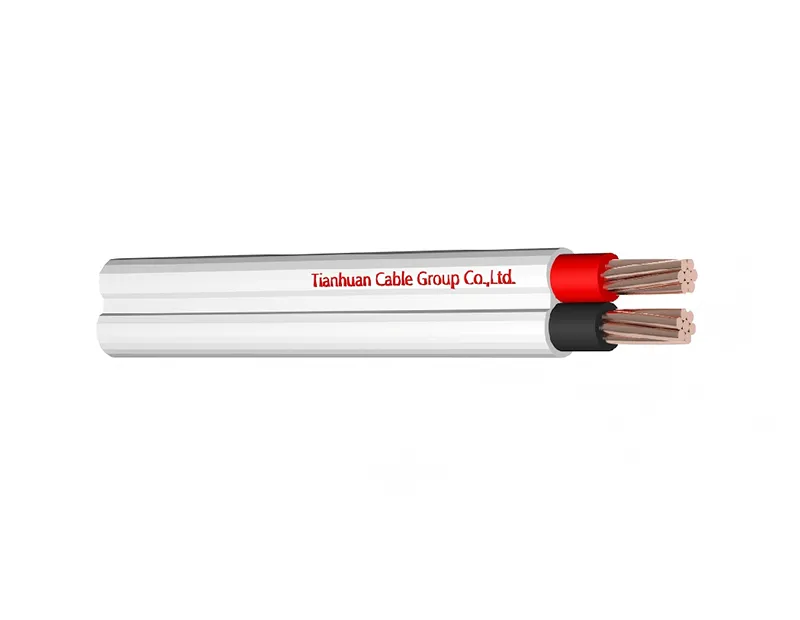

CABLE STRUCTURE:
Conductor material: Copper
Conductor shape: Circular
Insulation: V-90
Outer sheath: 3V-90
With Green/Yellow core: No
Number of earth cores: 0
Technical Data Rated volatge: 450/750V
Rated Temperature: 90℃
Bending radius: Bending factor when installed: 4(xD)
Bending factor when laying: 6(xD)
| Cross section | Type of conductor | Nom. insulation thick. | Nom. outer sheath thick. | Earth cond.sect. | Nom.over. diam. | Approx. weight |
| mm² | mm | mm | mm² | mm | kg/100m | |
| 1 | Solid copper | 0.6 | 0.9 | / | 6.5x4.2 | 5 |
| 1.5 | Stranded copper | 0.6 | 0.9 | / | 7.2x4.5 | 6.2 |
| 2.5 | Stranded copper | 0.7 | 1 | / | 8.9x5.4 | 9.7 |
| 4 | Stranded copper | 0.8 | 1.1 | / | 10.5x6.3 | 14 |
| 6 | Stranded copper | 0.8 | 1.1 | / | 11.6x6.9 | 19 |
| 10 | Stranded copper | 1 | 1.2 | / | 14.2x8.3 | 29 |
| 16 | Stranded copper | 1 | 1.3 | / | 16.3x9.5 | 42 |
| PVC FLAT 3 CORES | ||||||
| Cross section | Type of conductor | Nom. insulation thick. | Nom. outer sheath thick. | Earth cond.sect. | Nom.over. diam. | Approx. weight |
| mm² | mm | mm | mm² | mm | kg/100m | |
| 1.5 | Stranded copper | 0.6 | 0.9 | / | 9.9x4.5 | 8.8 |
Application These cables have wide applications: in construction for building wiring and mobile house internal installation, in industrial equipment for machine tool and robot electrical connections, in automatic control for production line component wires, and in outdoor &special environments for waterproof wires and household AC extension cords.
At TianHuan Cable Group, we specialise in creating custom cables and harnesses for the world’s most demanding applications. Different materials are used according to customer requirements to meet different weather resistance, application, safety levels, and environmental requirements.
